Chevron Conveyor Belt ( V Proflie, Pattern Belt)

Chevron Conveyor Belt ( V Proflie, Pattern Belt)

Chevron Conveyor Belt ( V Proflie, Pattern Belt)
1. Highly Effective For Transporting Sand, Coalpowder, Grain Or Other Powder & Granular Materials
2. Powder Or Granular Materials Inclines 20-30 °
3. Packed Or Box Materials, Inclines 30-45 °
Widely Used In Conveying Materials In Coal Mine, Mining, Electric Power Industry, Metallurgy Industry, Chemical Industry, Light Industry, Grain, Etc.

download-pdf-button

Chevron Belting

Chevron Conveyor Belt ( V Proflie, Pattern Belt) Specifications

V type belting

A. Sidewall Only
• Belt: 2-ply 220 PIW Black Standard, 3/16” x 1/16”
• Widths: 24”, 30”, and 36”
• Sidewall: 2-1/2” or 3” tall and fl ush to belt edge
• Min. pulley diameter 10”
• Stocked: 24” wide with 2-1/2” and 3" wall

V pattern conveyor belt

B. HD Steepclimb
• Belt: 4-ply 220 PIW Black Standard cross rigid, 3/16” x 1/16”
• Widths: 24”, 30”, and 36”
• Sidewall: 3” or 4” tall and recessed from belt edge
• Min. pulley diameter 12”
• Stocked: 24”, 30”, and 36” wide with 3” wall recessed
(call for dimensions)

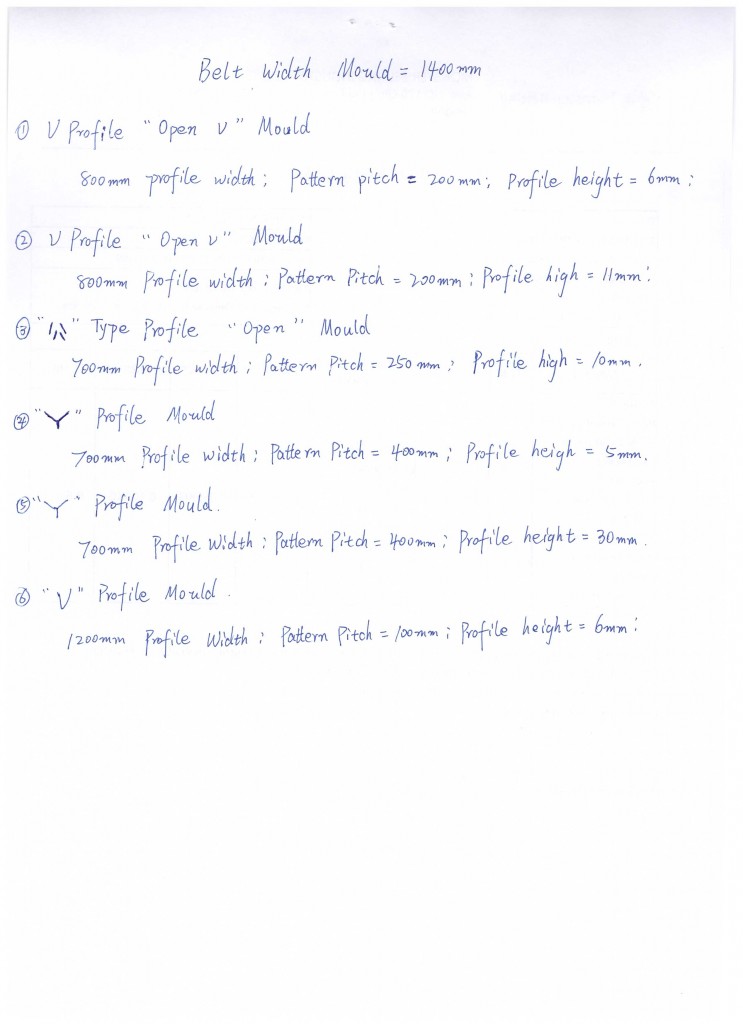

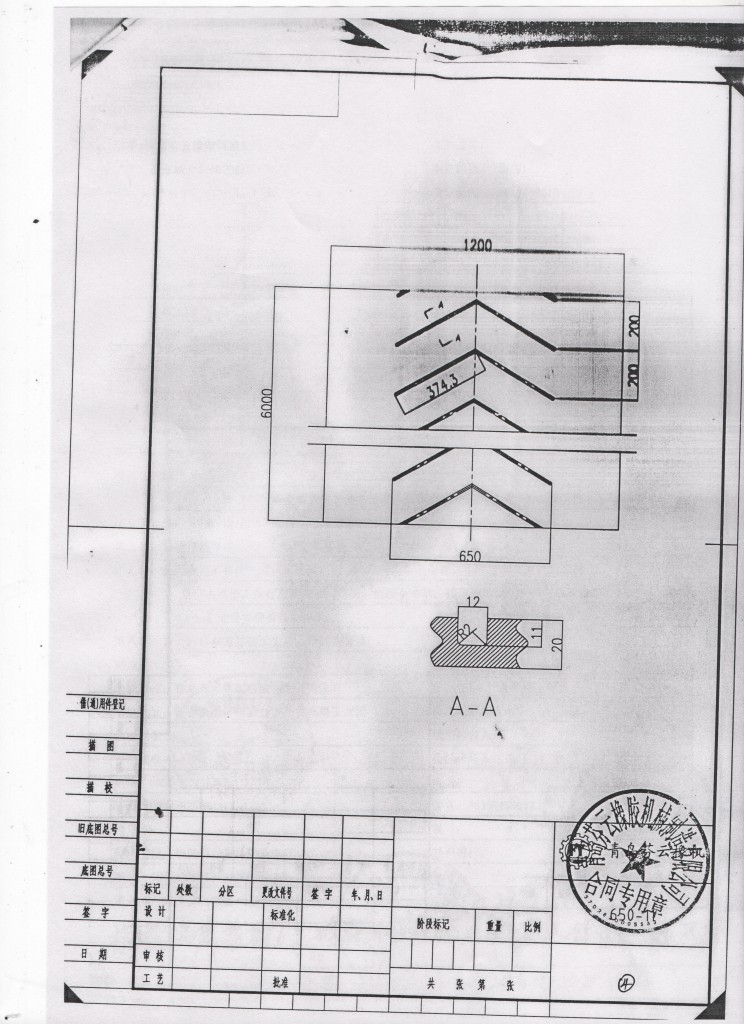

Closed V Pattern Range

C. I-Cleat
• Belt: 4-ply 220 PIW Black Standard cross rigid, 3/16” x 1/16”
• Widths: 24”, 30”, and 36”
• Sidewall: 3” or 4” tall and recessed from belt edge
• Min. pulley diameter: 10”

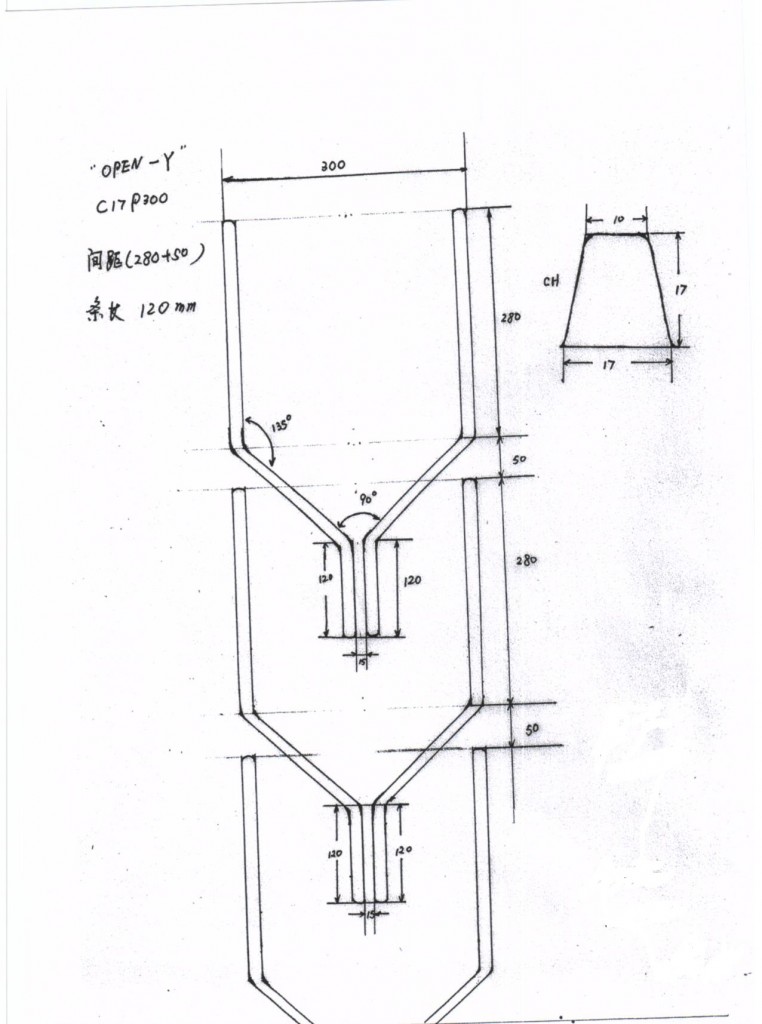

Deep Y Pattern Range

The cleat has T,TS,C,TC,TCS five types. TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat.

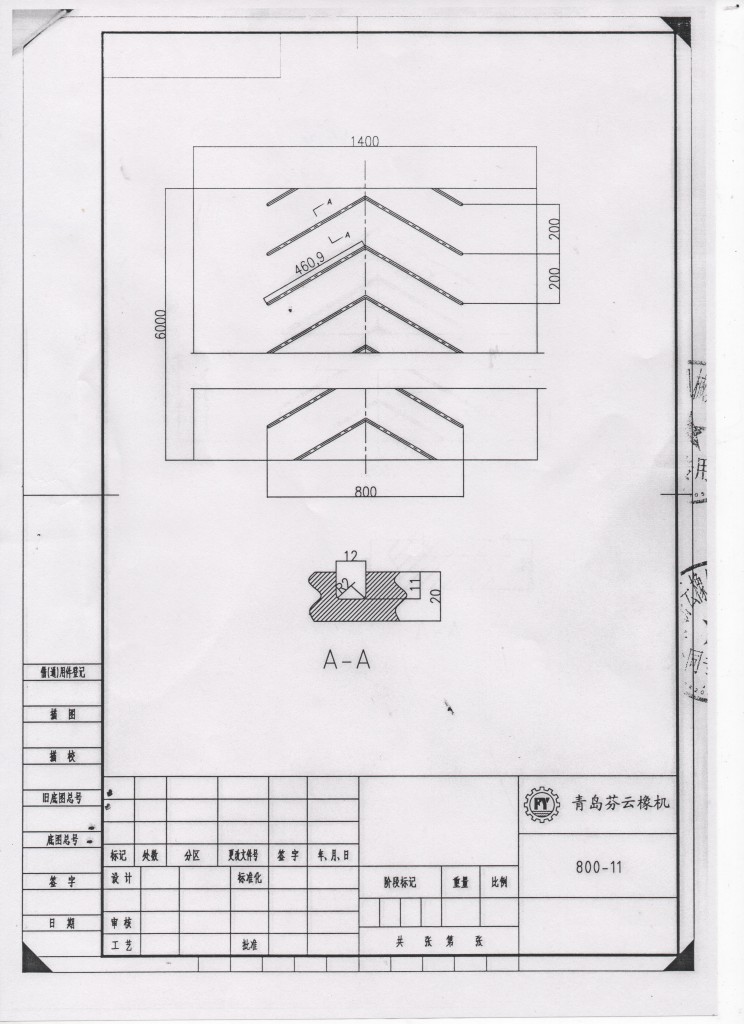

V-Profile Chevron conveyor Belt

Monster Belting offers our chevron conveyor belt for transporting various granular and powder materials through a safe way. Effective for transporting sand, grains and coal powder among other products, these belts can be used in the mining, metallurgy, light and chemical industry among other fields. Browse below to know more about the product.
