Brief introduction

Conveyor roller & idler is an important part of the belt conveyor, with many kinds and large quantity. It takes up 35% of the total cost of a belt conveyor and bears more than 70% resistance, so the quality of the roller is particularly important.
The role of the roller is to support the conveyor belt and the weight of the material. The operation of the roller must be flexible and reliable. Reducing the friction between the conveyer belt and the roller is crucial to the life of the conveyor belt, which accounts for more than 25% of the total cost of the conveyor. Although the roller is a smaller part in the belt conveyor, the structure is not complicated, but it is not easy to make high quality rollers.
The criteria for judging the quality of the roller are as follows: the radial runout of the roller, the flexibility of the roller and the axial momentum.
The working principle of the Conveyor roller
Conveyor roller drives the idler tube body, the bearing seat and the bearing outer ring and the sealing ring to rotate through the friction force between the conveyor belt and the supporting roller, so as to realize the transportation of the logistics with the conveyor belt.
The use and operation of the roller
1. roller before use should be carefully checked whether the appearance of serious bump damage phenomenon, the rotating rollers should be flexible rotation, no jam.
2. the installation distance of the Conveyor roller should be determined by the scientific calculation of the type of logistics and the size of the conveyer, so as to avoid excessive or overtight installation.
3. the installation of the roller should be adapted to avoid each other grinding.

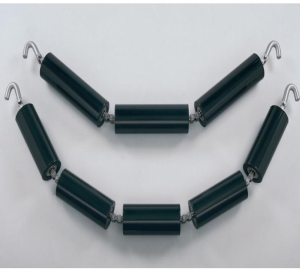

Suspended Idlers

Suspended Idlers

Offset Centre Roll Idlers

Offset Centre Roll Idlers

Beater Idlers

Beater Idlers

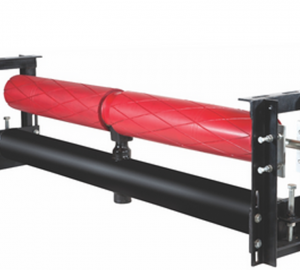

GUIDE IDLERS

GUIDE IDLERS

Winged Pulley

Winged Pulley

Conveyor Pulley

GUIDE IDLERS

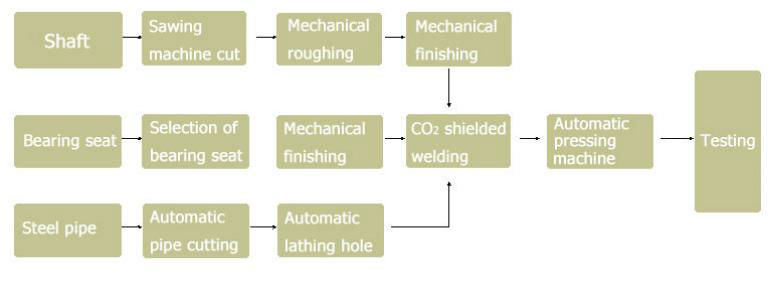

conveyor idler production process

conveyor idler production process

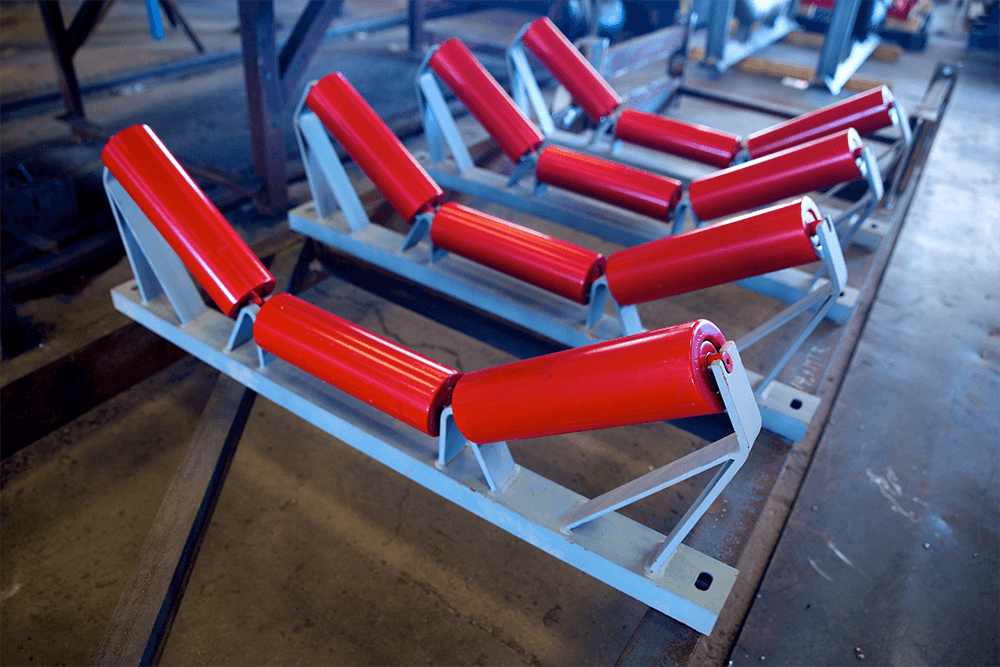

Conveyor roller Brackets

1. Conveyor idler/Belt conveyor idler roller feature

Roller Type Carrying,Impact,Return,Friction,Tapered,Guide,Spiral,Comb ,Garland,

Heavy duty roller

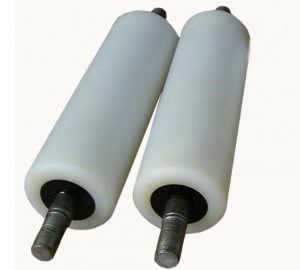

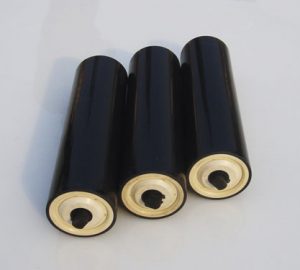

Material Carbon steel, Stainless steel, Rubber, Nylon, Pvc, HDPE, UHMWPE,Ceramic
Standard DIN/CEMA/ISO/GB/JIS
Roller

Feature

Low play radial eccentricity, low noise, low axial movement

Reduced power consumption (to start and run the conveyor)

Min 30,000 hours standard life time

Water Proof, Dust Proof

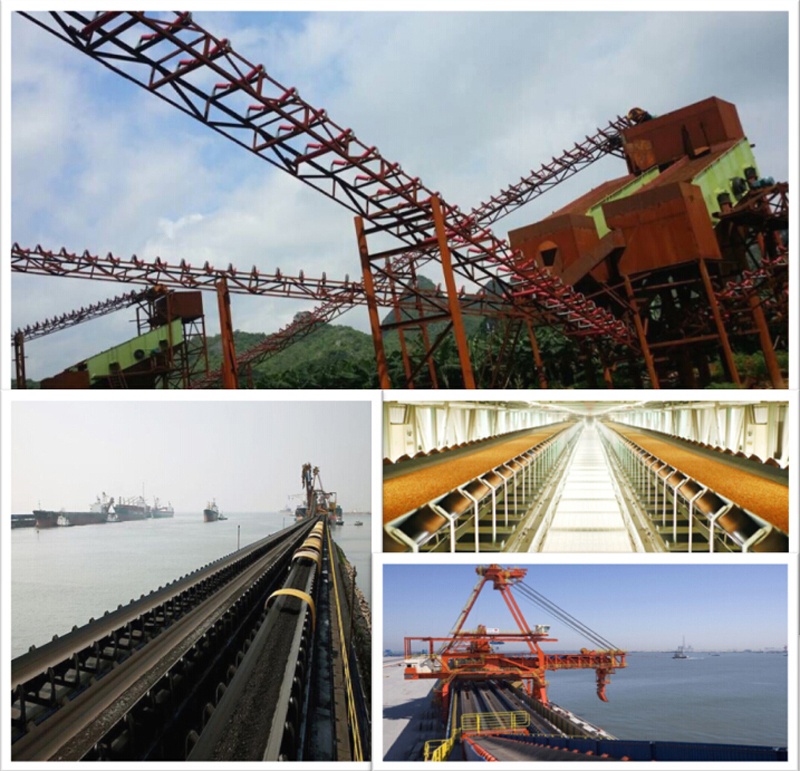

Application Coal, Mine, Quarry, Cement,Harbor, Steel, Power, Crusher industry

conveyor roller Uses
conveyor idler roller
2. Conveyor idler/Belt conveyor idler roller inner structure
Tube tube special for roller, compared with ordinary steel tube, it has great

advantages in diameter,thickness tolerance, bending degree, ovality and

so on which can make the roller have minimum play radial eccentricity

Shaft high precision cold-drawn steel which has high brightness and little tolerance.
Bearing use deep groove ball bearing with big C3, C4.clearance, which can make

rollers revolve flexibly. Bearing type is 2RZ and 2RS with oil seal which

have advantage in dust proof.

Bearing Housing formed by many times of punching which can make precise size

Type:Straight edge and flanging edge

Seals Seals Type: DTII, TD75, TK Contact, TK labyrinth, TKII

Material:  ABS resin, Nylon, Polyurethane, polyformaldehyde and so on.

Painting ordinary painting, hot galvanized painting, electric static spraying painting,

baked painting

Drawing We have professional engineer to design the type of roller. Also we can

produce according to your drawing and request.
