Monster belting factory Intro






We adhere to business philosophy of excellent quality, perfect service and sincere credibility and implement operating strategy of high technology, advanced management, strong varieties of perfectionist, best efficiency to provide over-satisfactory service toward customers or dealers both home and abroad, Our professional team aims to provide you:

-- One-Stop Exporting conveyor belts;
-- Whole solutions in Belt industry;
-- Consistent qua

EP-250 Conveyor belt Specification

Number of empolyes:

More than 200 workers
With our abundant experience and industrious and hardworking staff
members,we can meet various requirements from different types of
Export Market:Main markets are Asia,North America,Europe,Africa
and South America,etc.
Certifications:Passed ISO 9001,BV and CE certifications
Our Aim:Quality First,Reputation First,Customer First.

monster belting industry

1. Corrugated sidewall conveyor belt
Vertical corrugated sidewall conveyor belt, sidewall conveyor belt
2. Conveyor belt for general purpose
Cotton conveyor belt, polyester(EP) conveyor belt, Nylon conveyor belt
3.Steel cod conveyor belt
4.Flame retardant conveyor belt
Flame retardant conveyor belt, flame retardant pvc conveyor belt, flame
retardant PVG conveyor belt
5. Conveyor belt for special purpose
Heat resistant conveyor belt, high temperature resistant conveyor belt ,
flame proof conveyor belt, cold resistant conveyor belt, chemical
resistant conveyor belt, oil resistant conveyor belt
6.Elevator conveyor belt
7.Chevron conveyor belt
8. Conveyor belt fabric
Cotton fabric, EE fabric, PP fabric, EP fabric, Nylon fabric
9. Conveyor belt accessories
Carrier, roller
10. Pulley lagging for conveyors

Production Process

monster belting production process

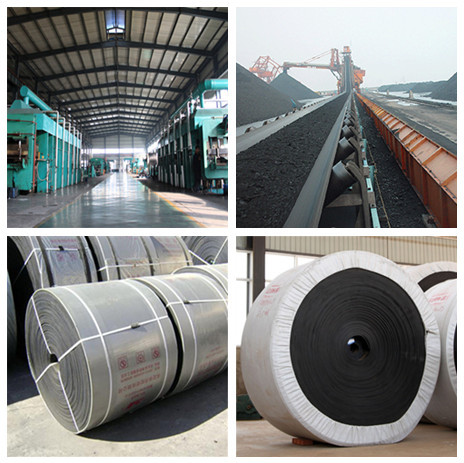

Production machine
We use the most update and advanced machine to produce conveyor belt.



The pulley diameters in a belt conveyor system depend on the design, on strains and on the type of splice of the conveyor belt. For determining the minimum diameters, the following pulley groups will be distinguished:

  • Group A: Drive pulley and other pulleys in the range of higher belt tensions
  • Group B: Deflection pulleys in the range of lower belt tensions
  • Group C: Snub pulleys (change in belt moving direction = 30°)

Minimum Pulley Diameter – Phoenix Conveyor Belt

The minimum pulley diameter for Group A pulleys can be roughly determined by utilizing the thickness value of the tensile member in the belt as follows:

(DTR min)GR.A = Material Characteristic Value dGK

Tensile member material in belt longitudinal direction material characteristic value
E (Polyester) 108
P (Polyamide) 90
St (Steel cables) 145

A pulley diameter so obtained shall be rounded up to the next higher value of the table below, in which there are shown for each minimum values for group b and C, too.

Minimum pulley diameter without lining (Quoted in mm) depending on utilizing the admissible tension in the steady operation state.



Packaging & Shipping

Packaging of rubber conveyor belts:

1.Water-proof nylon wrapping package

2.Standard and suitable export package for marine transport

3.At your request

Monster belting package

Shipping of rubber conveyor belts:

1. By Sea for batch goods
2. Loading port: Tianjin, Shanghai or according to customer's
3. Delivery Time: 3 -7 Workdays for samples
                    15-25 Workdays for 1-2 20ft containers
                    20-30 Workdays for 3-4 20ft containers

Packing photos:

shipping belting_Monster belt









Loading in container photos:



Pattern Types of Conveyor belts

pattern belts


Special properties Monster belting designation
Highly wear resistant (high tear resistance) WVF
Extremely abrasion resistant and dirt repellent MVF
Heat resistant up to 180°C MAGMA
Heat resistant up to 180°C and self-extinguishing MAGMA EXTRA
Heat resistant up to 240°C and acid resistant MAGMA SUPER
Extremely abrasion resistant and acid protected MVF-A
Oil-grease and heat-resistant and flame-resistant FR-MOR
Flame retardant FH
Energy optimized EOB
