Head Drive Diamond Rubber Lagging Pulley
Head Drive Diamond Rubber Lagging Pulley .A conveyor will always consist of at least two pulleys, head pulley and tail pulley, with additional pulleys used depending on the configuration. Standard-duty pulleys are usually adequate for simple applications, but mine-duty and engineered pulleys are also available where heavy-duty pulleys are required.
Different kinds of conveyor pulleys
MONSTER® sells conveyor pulleys in all the following sub-categories:
Tail and wing pulleys
The tail pulley is located at the loading end of the belt. It comes with either a flat face or a slatted profile (wing pulley), which cleans the belt by allowing material to fall between the support members.
Snub pulleys
A snub pulley improves the traction of the drive pulley, by increasing its belt wrap angle.
Drive pulleys
Drive pulleys, which can also be the head pulley, are driven by a motor and power transmission unit to propel the belt and material to the discharge.
Bend pulleys
A bend pulley is used for changing the direction of the belt.
Take-up pulley
A take-up pulley is used to provide the belt with the proper amount of tension. Its position is adjustable.
A take-up pulley is used to provide the belt with the proper amount of tension. Its position is adjustable.
| Type | Belt width(mm) | Standard Diameter(mm) | Length(mm) |
| Drive Pulley | 500 | 500 | Length of the pulley depends on the belt width of the conveyor |
| 650 | 500~630 | ||
| 800 | 630~1000 | ||
| 1000 | 800~1150 | ||
| 1200 | 800~1150 | ||
| 1400 | 1000~1350 | ||
| 1600 | 1150~1600 | ||
| 1800 | 1150~1800 | ||
| 2000 | 1350~2000 | ||
| 2200 | 1600~2200 | ||
| 2400 | 1800~2400 | ||
| Bend Pully | 500 | 250~500 | |
| 650 | 250~630 | ||
| 800 | 250~1000 | ||
| 1000 | 250~1600 | ||
| 1200 | 250~1600 | ||
| 1400 | 315~1600 | ||
| 1600 | 400~1600 | ||
| 1800 | 400~1600 | ||
| 2000 | 500~1600 | ||
| 2200 | 630~1600 | ||
| 2400 | 800~1600 |

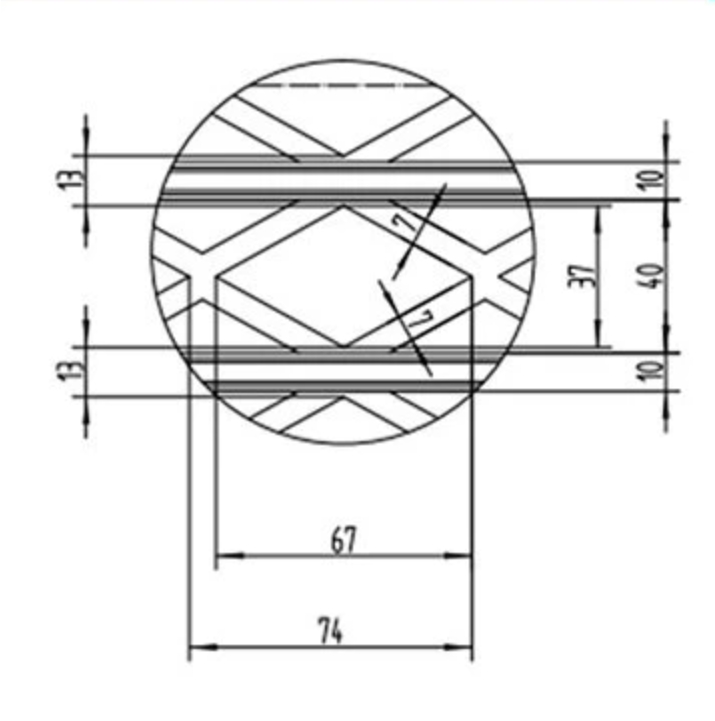

Diamond pattern rubber lagging used for drive pulleys of low to medium loaded conveyor belt, reduce slippage between belt and pulley, improve and stabilize coefficient of friction, prevent the pulley against wear and corrosion, strong adhesive system with CN bonding layer.
1. Pre grooved rubber plate, suitable for rubber coating of driving wheel
2. Protect the surface of the drum from adhesion and transportation and avoid deviation;
3. Increase the sliding friction coefficient, so as to reduce the slip between the roller and the conveyor belt;
4. Protect the drum from wear and tear;
5. Suitable for medium and low motion fabric conveyor belt;
6. It is suitable for rollers of various sizes and diameters.
