Flat Return Roller / Idlers

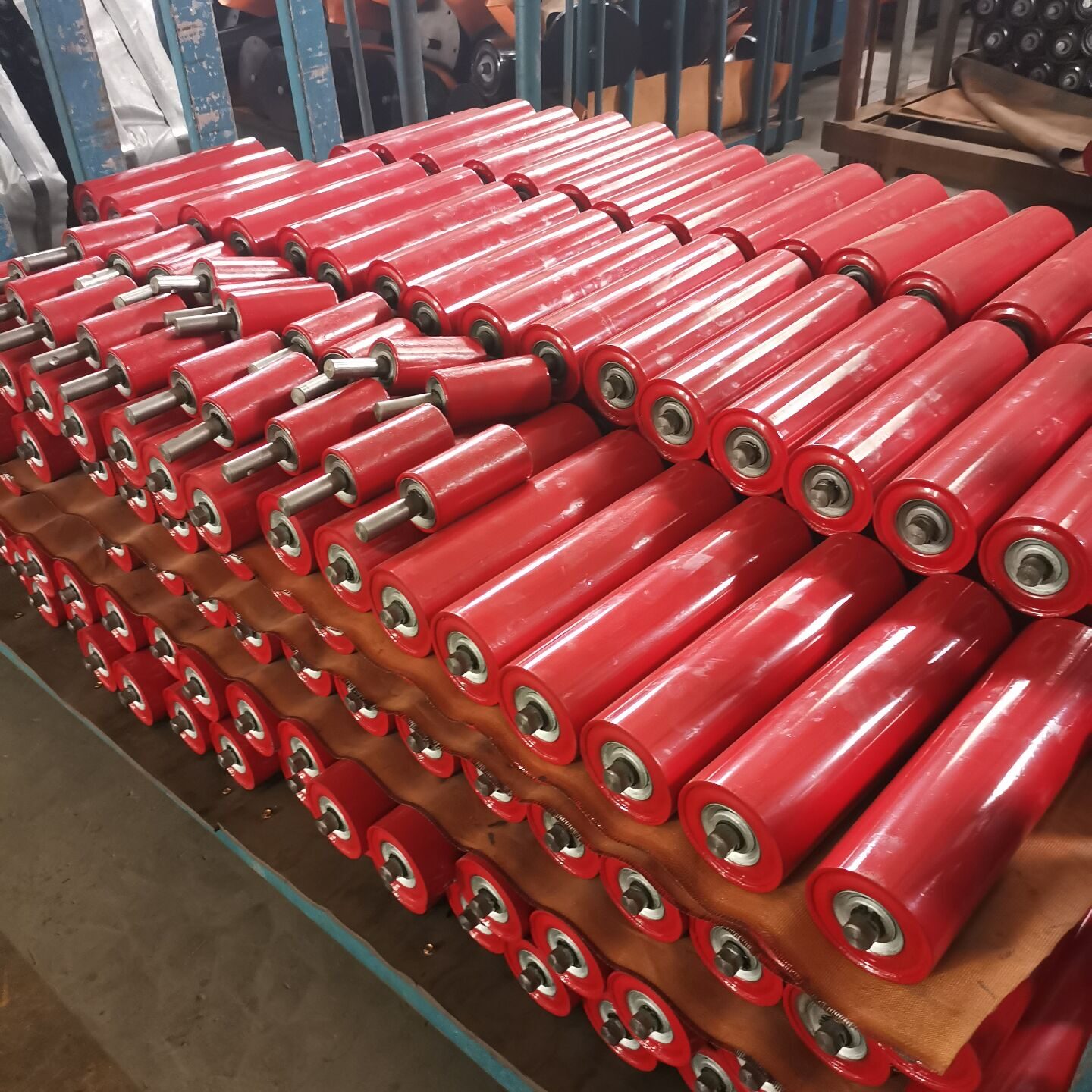

Carrier Roller

Our company specializes in producing Flat Return Roller idlers, and return roller has extremely high wear resistance, extremely low friction coefficient, not easy to wear belt. Superior self-lubricity, do not have to lubricate, under poor condition use not easy card to die; Antistatic, anti-combustion, aging resistance, acid, alkali and organic solvent corrosion; Can withstand repeated shocks and vibrations;Using the environment temperature range: – 40 ℃ to 90 ℃;

Excellent mechanical properties, light weight, convenient installation and no maintenance; Stable operation, long life, etc. We plant also produce more conveyor belt related products, can meet your needs completely.

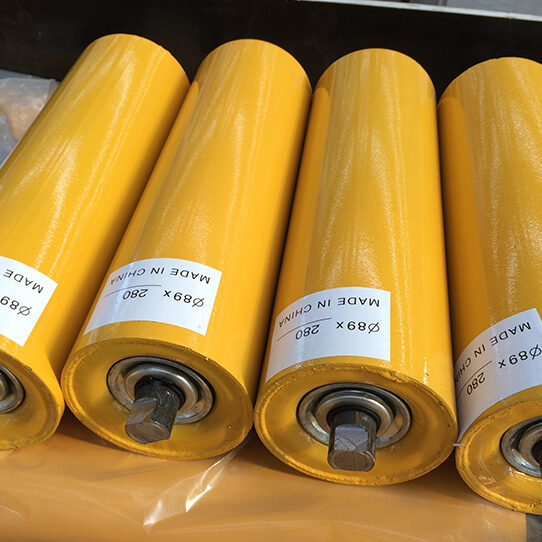

Carrier roller
Carrier roller idler

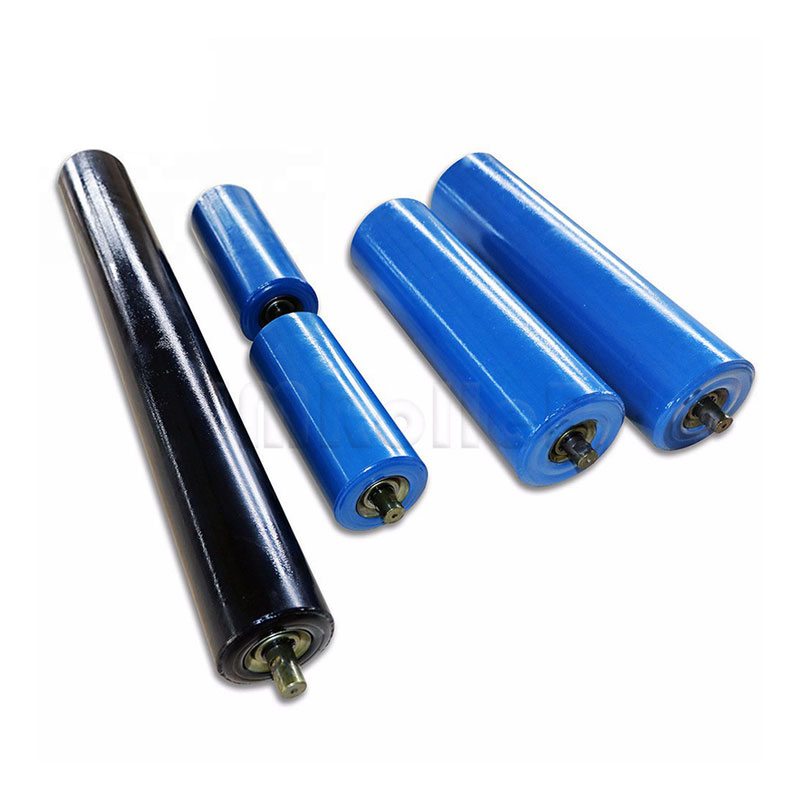

We can produce as customers' specification

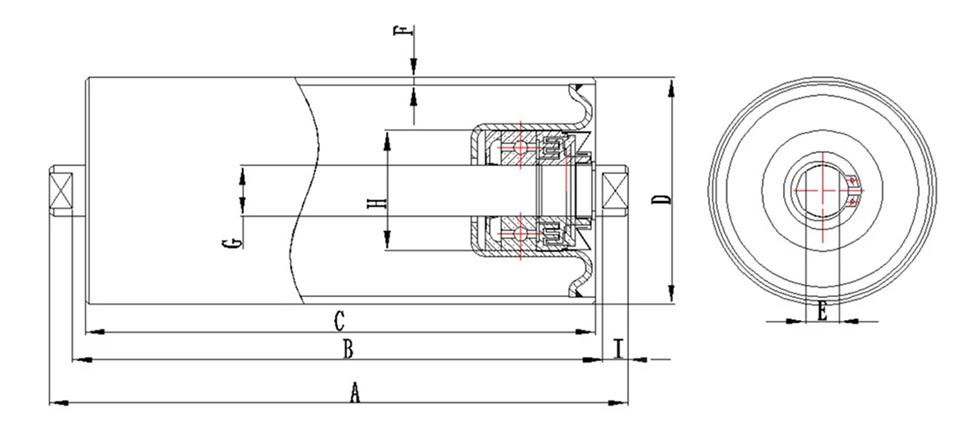

carrier roller drawing

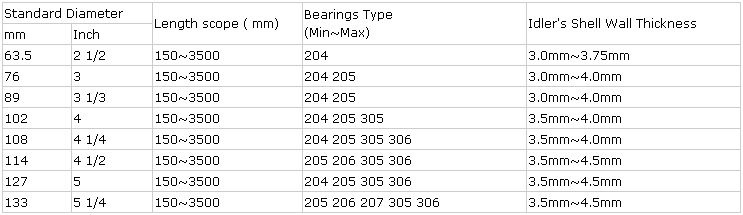

Roller idlers Dia 76mm-219mm

Detailed conveyor idler feature:

1. Roller idlers Dia 76mm-219mm, length 190-3500mm, which are used in the steel in dustry, harbor, coal industry, power in dustry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
4. Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
5. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc.
6. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
7. Welding: Mixed gas shielded arc welding end.Fine welding tube ensure the rollers with low vibration and noise.
8. Working life: 30,000 – 50,000 hours.
9.Standard:CEMA/JIS/DIN

Roller idlers Dia 180mm
Cement plant

Cement plant

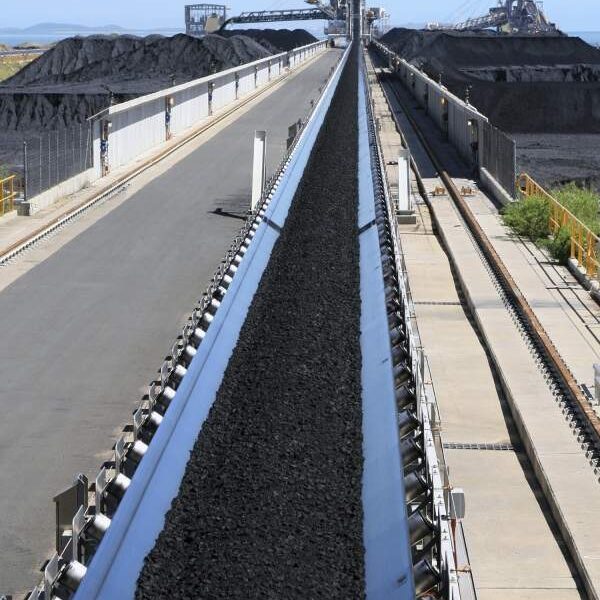

Coal plant

Coal plant

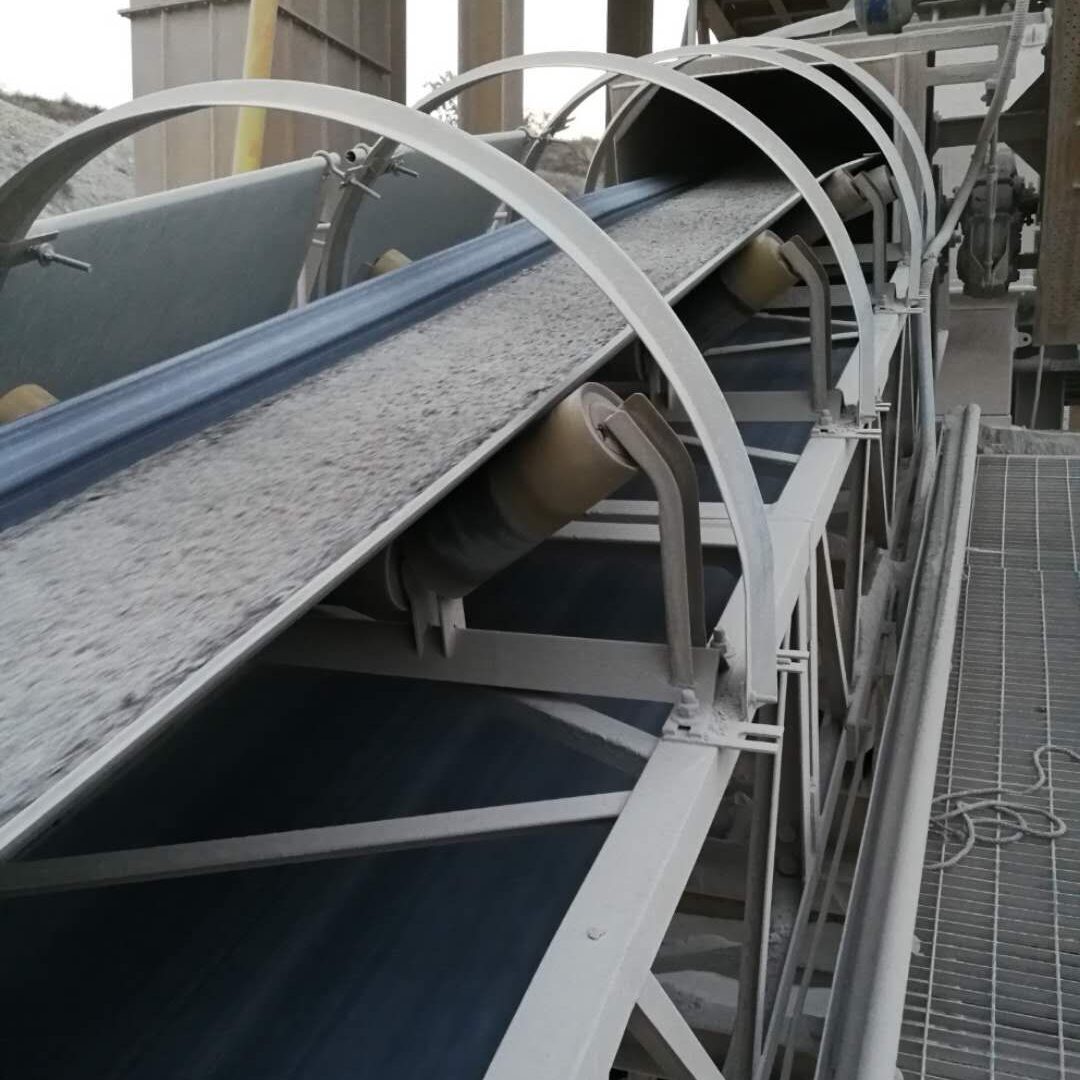

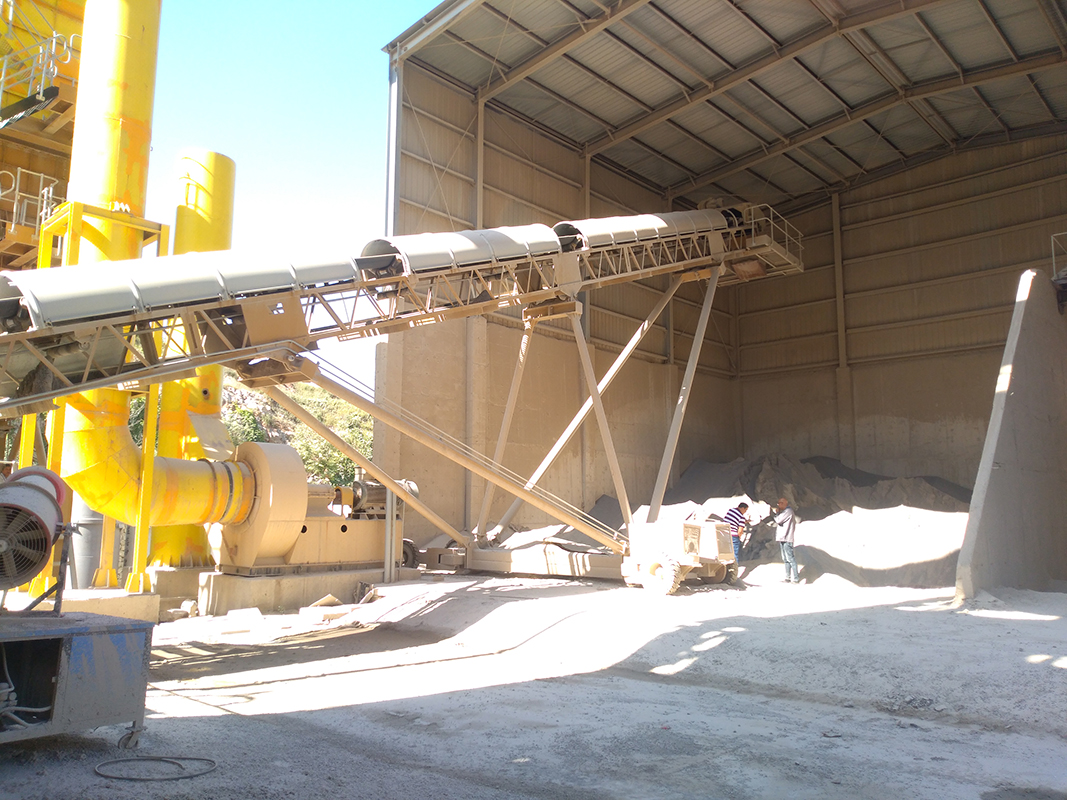

Concrete plant

Concrete plant

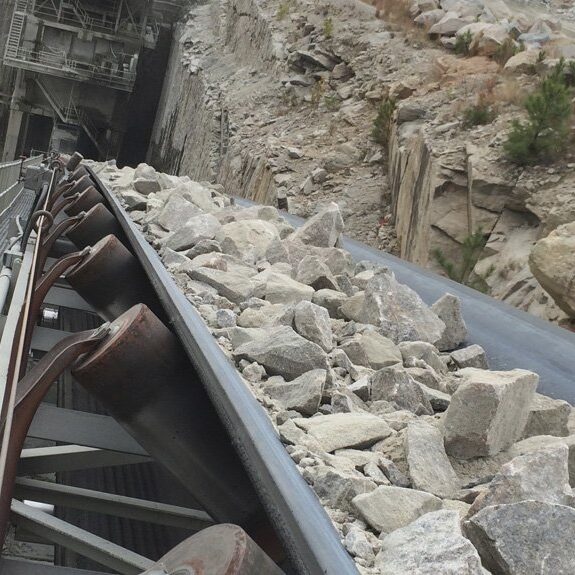

Diamond mining

Diamond mining

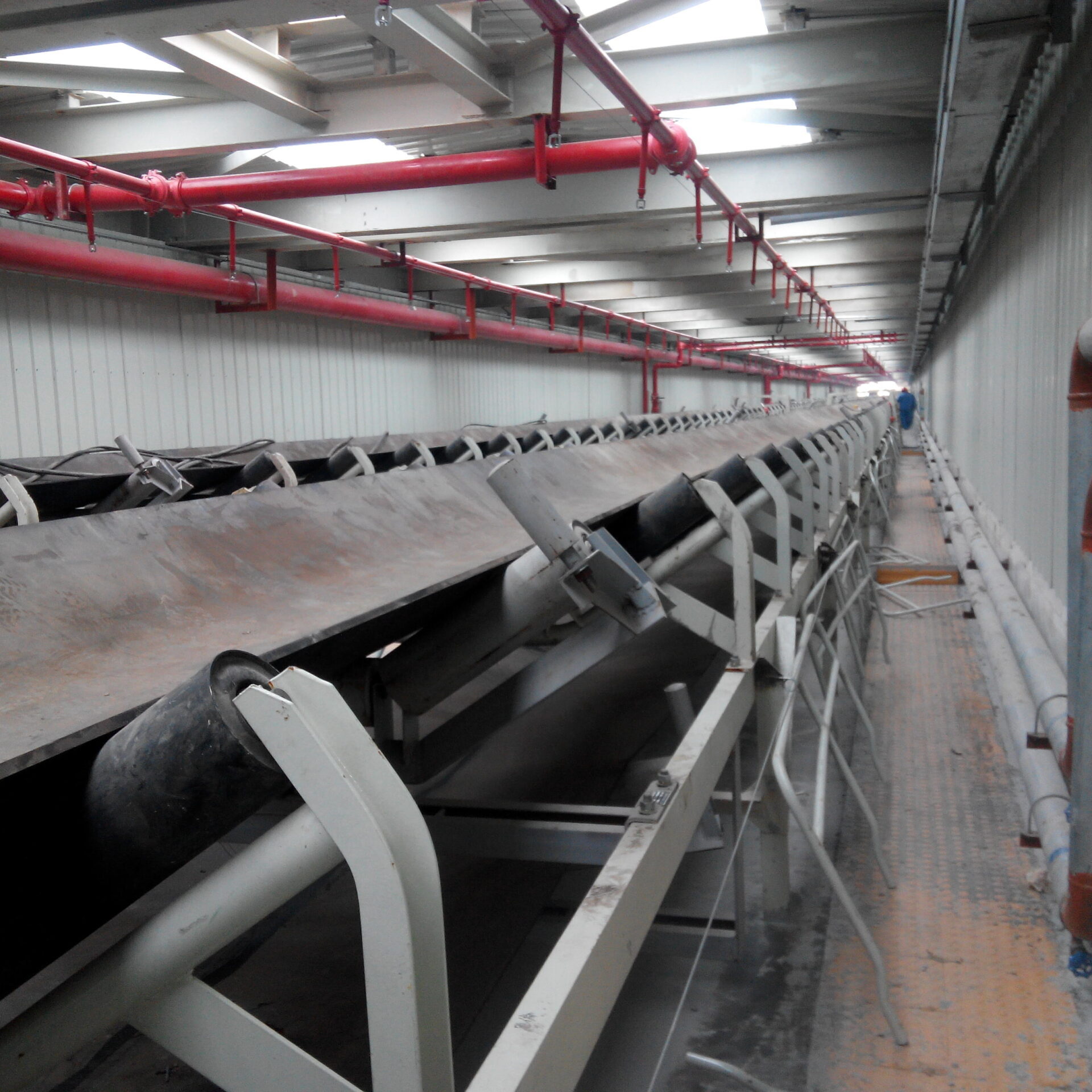

Power plant

Power plant

Power plant

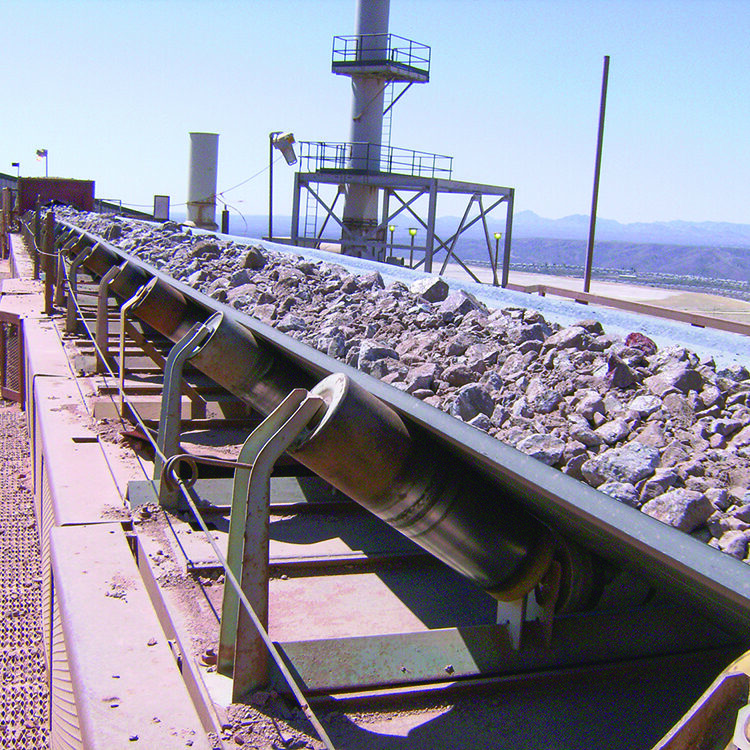

Quarry

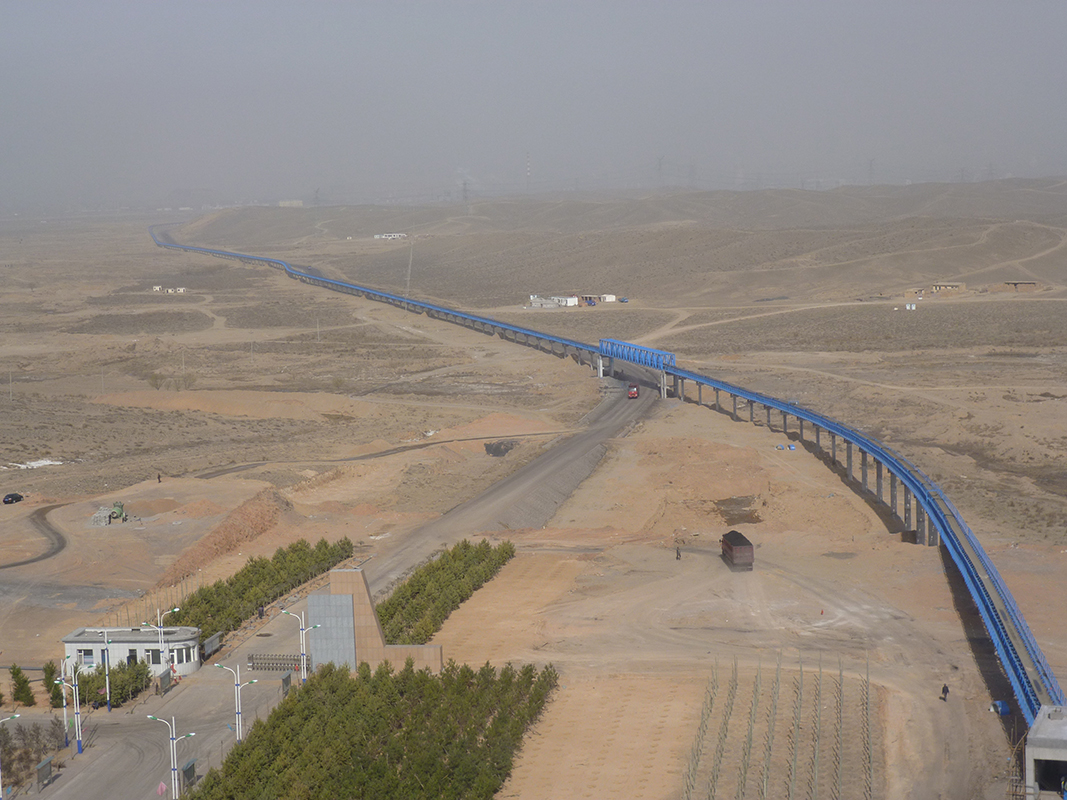

coal mining

Coal Mining.2020
Capacity: 2500t/h,
Material type: Ironstone,
Curve: 7,
Belt Length: 8617m,
Belt width: 1200mm

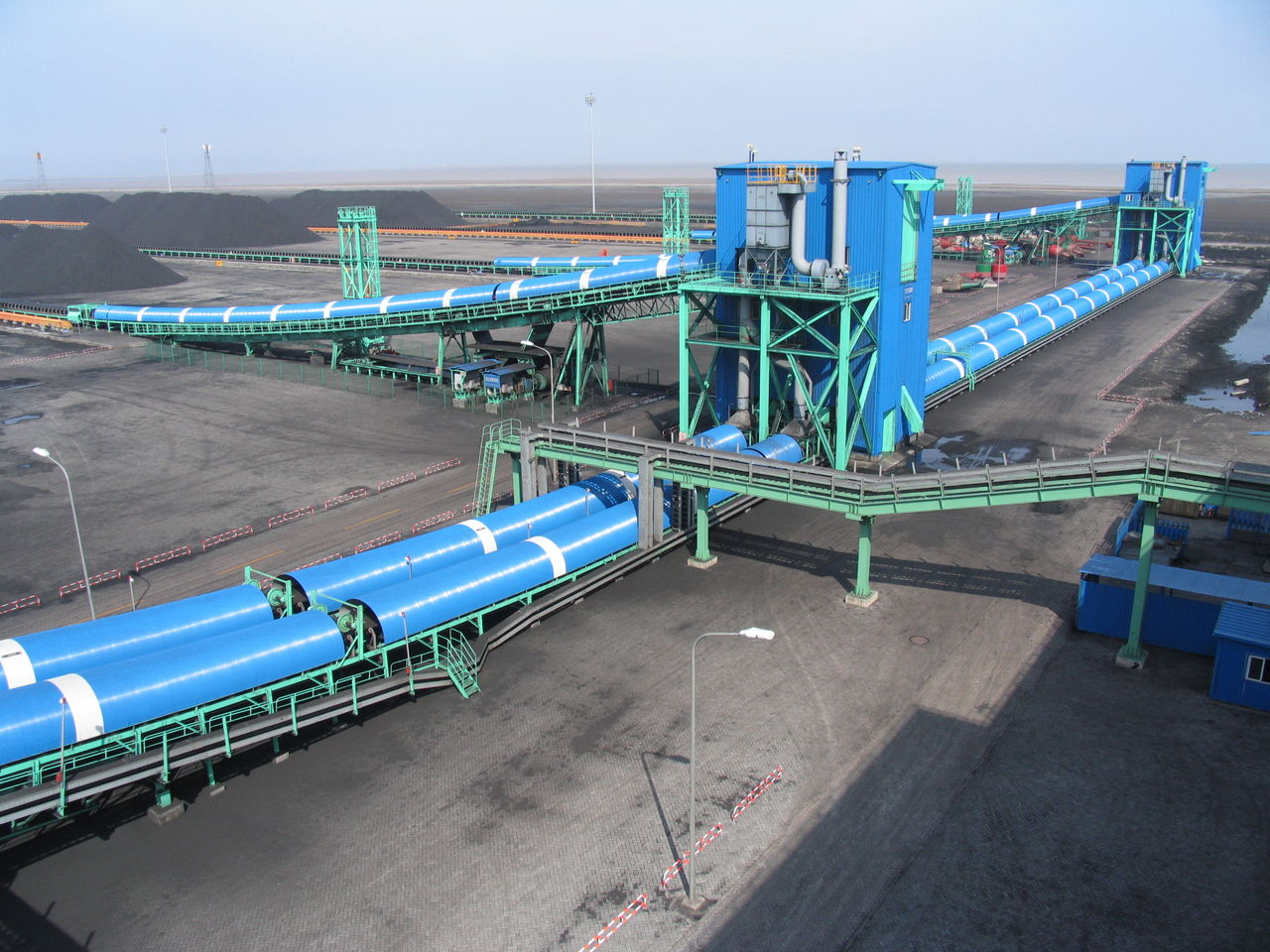

Steel Raw material plant

Brazil Steel Raw material plant
Capacity: 2*5000t/d,
Material type: coal,
Angle: 31°,
Belt width: 1000mm

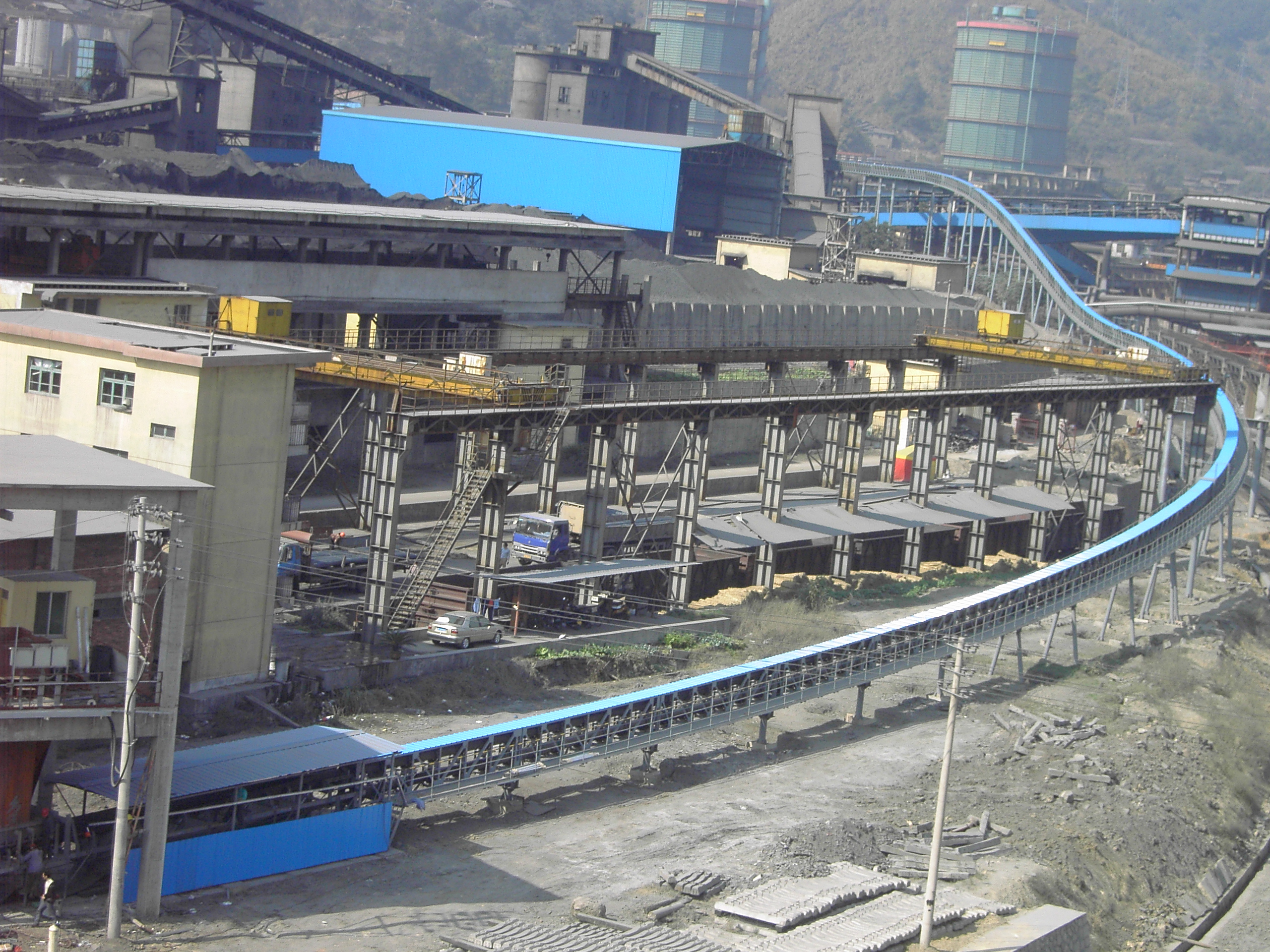

Chemical belt

YunNan Yuntian Chemical.2019
Capacity: 350t/h,
Material: Phosphogypsum,
Pipe diameter: 350mm,
Belt length: 719m

Vietnam power plant

Hai Duong, Vietnam power plant. 2020
Variable tilt mobile stacker,
Belt length: 55m,
Belt width: 1200mm

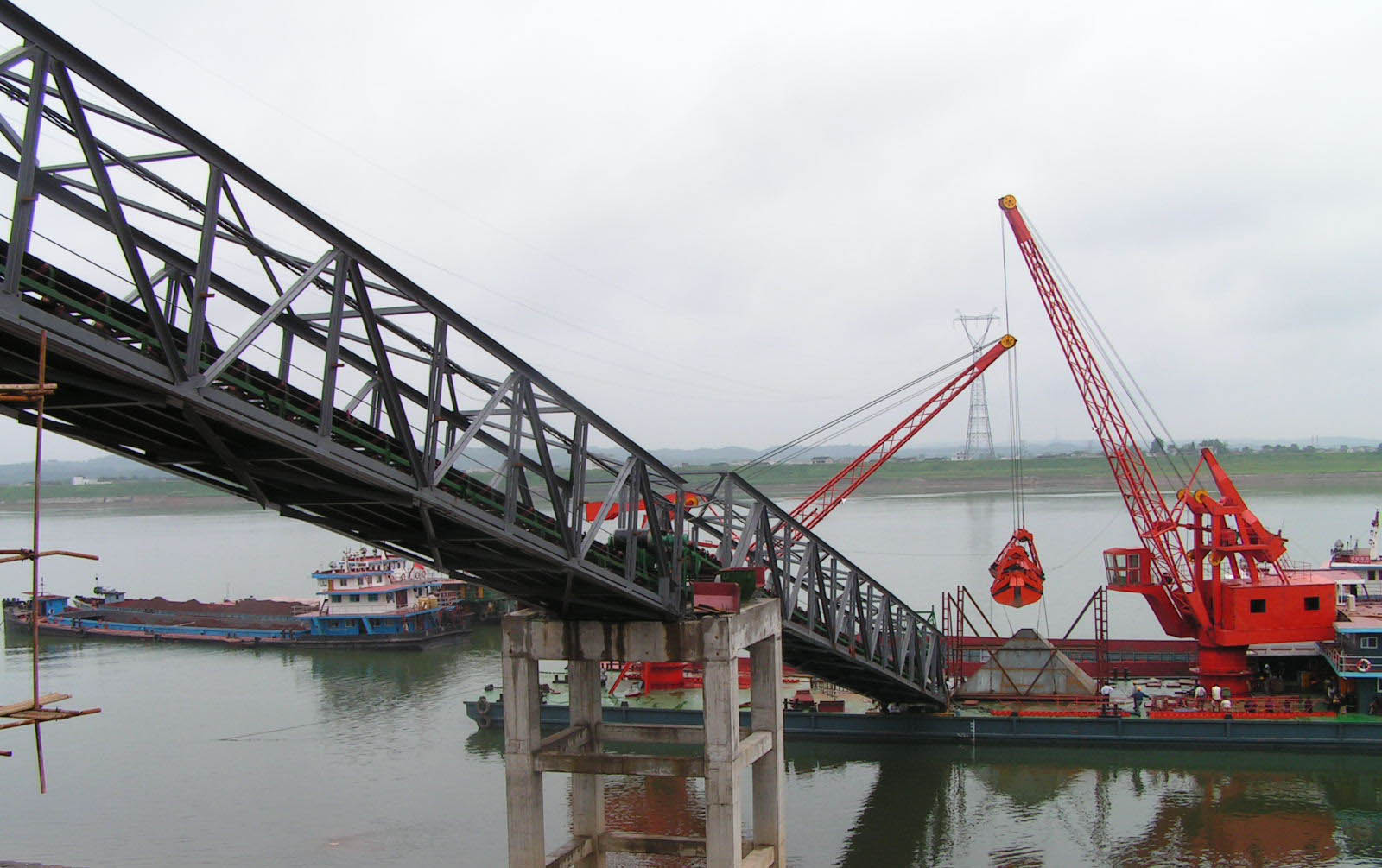

conveyor, Ship unloading system

Jiujiang Jiangxi P.R. 20115 sets conveyor,
Ship unloading system
Capacity: 2200t/h,
Belt width: 1400mm

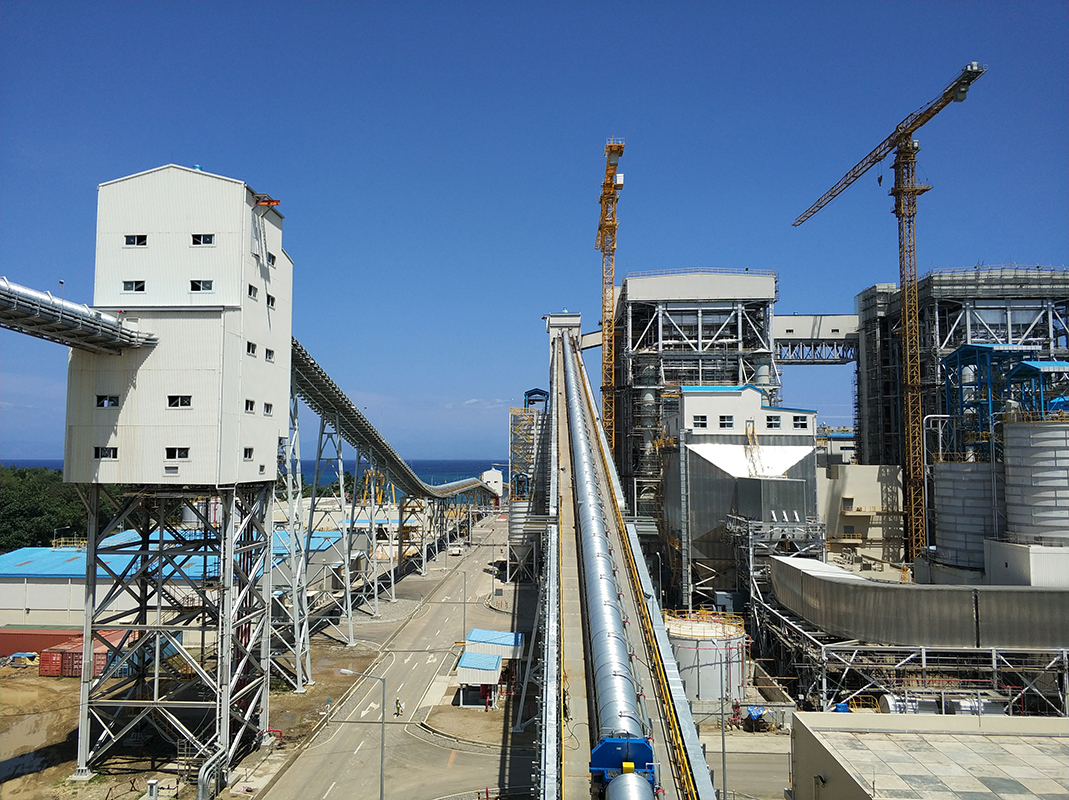

Philippines Power Plant

Philippines Power Plant.2018
Belt conveyor system
Capacity:4*1800t/h
Belt width: 1200mm

Work process:

Project parameters, scenarios —- determine the specifications and drawings —- confirm the quotation, sign the contract —- perform the contract for production —- inspection delivery and transportation —- guide installation —- After-sales service
