Pipe Conveyor Belting

Pipe Conveyor Belt | Tubular Conveyor Belt

Product Description:

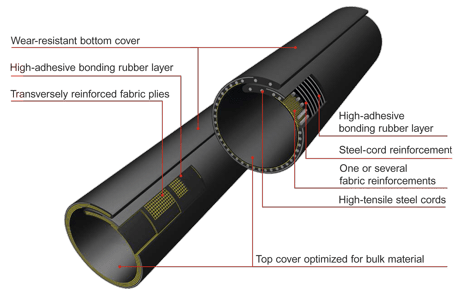

The core of Pipe Conveyor Belt is composed of high canvas or steel cord carcass, with high strength and wearable rubber as this top and bottom cover. During operating, the rubber belt is gradual changing from the plane to U-size, while the belt is rolled into tubular size for hermetic conveying.

Pipe Conveyor Belt is using for conveying materials required environment protecting and three-dimensional bend conveying in coal, mine, port, electric power, metallurgy, architecture, food industry. During hermetic conveying, the materials do not fly upwards and fall off, do not influence by environment, can be bend, big obliquity, out and home conveyed.

Characteristics:

Suitable stiffness can make the belt transform a pipe shape, bend easily, and keep it round enough.
Overlapped part of soft belt edges is sealed well, which results in fatigue resistance, abrasion resistance, and stable carrying capacity.
For enclosed transportation, materials won’t fly, fall or influence the environment, especially conveying powdery, paste fine materials.
Protect materials from environmental influence of wind, rain and snow, etc.
The belt can bend easily and convey high loading materials to and fro at high speed and a big angle.
Flexible transporting line, the belt can be bent into a relatively small radius and convey materials at a vertical, horizontal or three-dimension angle.
Sectional area is small.
Low noise.

Both edge part can be rolled up into tubular shape to avoid material falling. The belt is widely used in metallurgy, power, chemical industry, port, wharf, construction materials, coal, mine, grain, etc. The belt has types of abrasion/heat/cold/acid-alkali/fire/static resistance.

Width & pipe diameter

Belt width & corresponding pipe diameter (unit: mm)
Belt width	360	600	800	1000	1100	1300	1600	1850	2250	2450	2900	3100
Pipe diameter	100	150	200	250	300	350	400	500	600	700	800	850

Cover rubber Grade

Cover grade	Tensile strength	Elongation	Abrasion	Tensile strength and elongation after aging	Standard
Cover grade	≥	≥	≤	Tensile strength and elongation after aging	Standard
	MPa	%	mm3	%
M	24	450	125	-50	Austrilia Standard AS1332-2000C
N	17	400	200	-50
RMA1	17	400	175	-50	USA Standard
RMA2	14	350	250	-50
Z	15	350	250	-50	Germany Standard DIN22102
Y	20	400	150	-50
X	25	400	120	-50
W	18	400	90	-50
C	10	150	200	-50	Russia standard ГОСТ20-8
N	15	400	100	-50
T2	14.7	300	200	-50
M	14.7	350	150	-50
