Drum pulley

Name: MONSTER BELTING INDUSTRY CO.LTD
Address: No.18 Powerlong Building, Qingdao Shandong, 266300, China
Telephone: +86 15964912185
Price range: $$

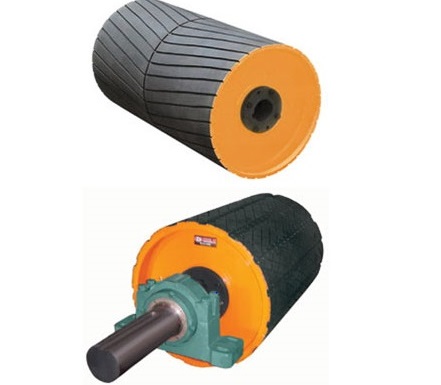

Head pulley /Drive Pulley

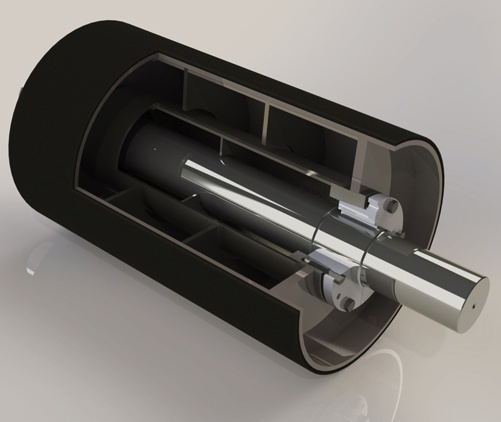

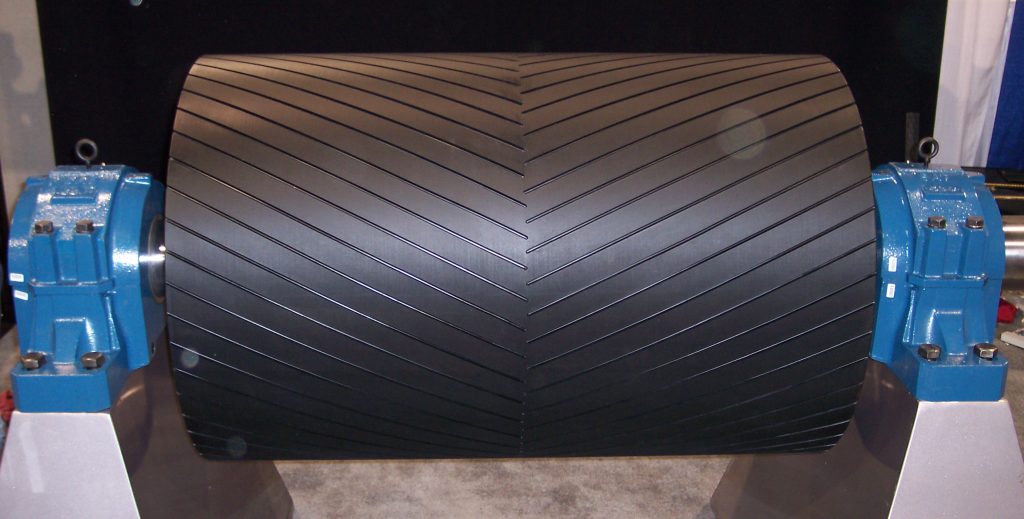

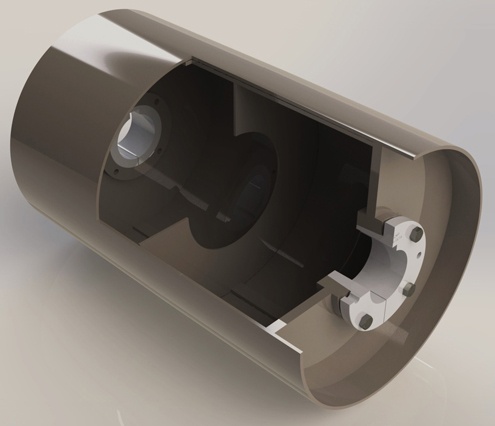

The drum pulley is an important part and component part of the belt conveying and transportation system. The encapsulation of the drum pulley can effectively improve the operation condition of the conveying system, protect the metal drum pulley from being worn, prevent the slipping of the conveyor belt, and make the drum pulley and belt run synchronously.

Technical Data Sheet

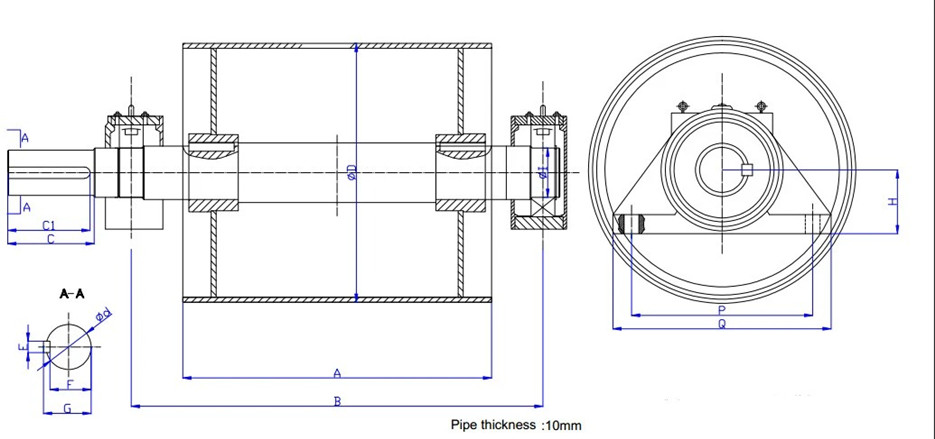

Conveyor-Roller-Return-Roller-Carrying-Idler-Return-Idler-Carrier-Roller (1)

Parameter of conveyor drum pulley
Type	Belt width(mm)	Standard diameter(mm)	Length(mm)
Drum Pulley	500	500	Length of pulley depends on the width of conveyor belt
	650	500~630
	800	630~1000
	1000	800~1150
	1200	800~1150
	1400	1000~1350
	1600	1150~1600
	1800	1150~1800
	2000	1350~2000
	2200	1600~2200
	2400	1800~2400
