High-Quality PVC Solid Woven Conveyor Belts

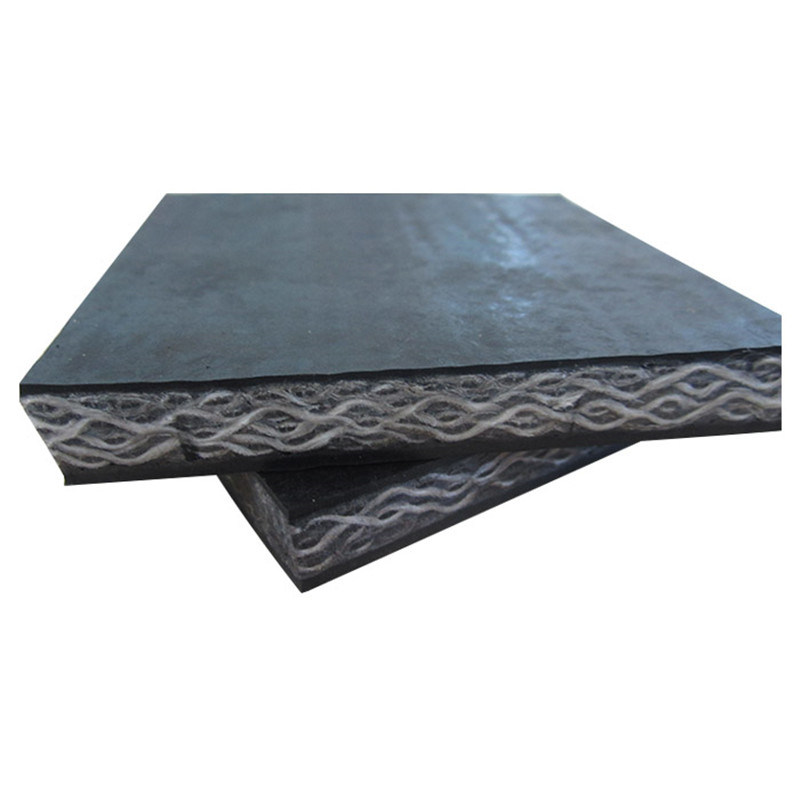

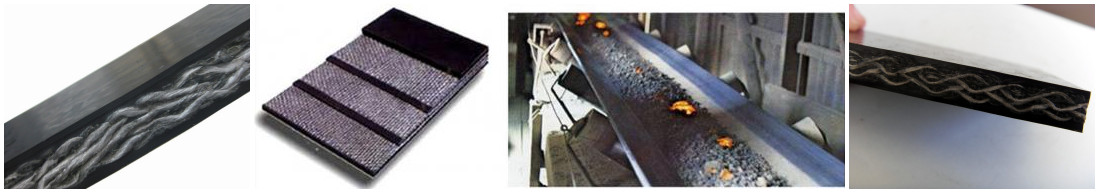

Solid Woven Fire Resistant Conveyor Belt

The solid woven flame retardant conveyor belt is made by dipping its core in PVC paste, combined by vulcanising. The belt has anti-static properties, high tensile strength (in proportion to weight), no delimitation, excellent impact and rip resistance.

The solid woven fabric uses high tensile strength and low elongation polyester long filament as warp fibre. For weft fibre, it uses high tensile and medium modulus nylon filament. The fabric is high in strength, low in elongation, high in the carcass, free of separation of plies, shock resistant, and anti-tear.

Solid Woven Flame Retardant Conveyor Belt:

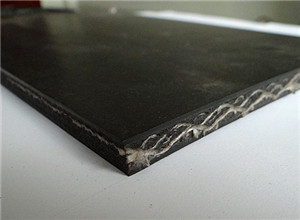

Non pressed PVC type is suitable for applications in dry conditions at a slope angle of no greater than 16 degrees. The belt is non-pressed with cover no more than 0.8mm.

Pressed PVC type, both top and bottom covers are PVC, thickness of each side can be up to 4mm, the belt has much more advantages than non pressed PVC belt on impact resistance, water soaking, with longer service life, higher fastener holding.

Solid Woven Flame Retardant Conveyor Belt

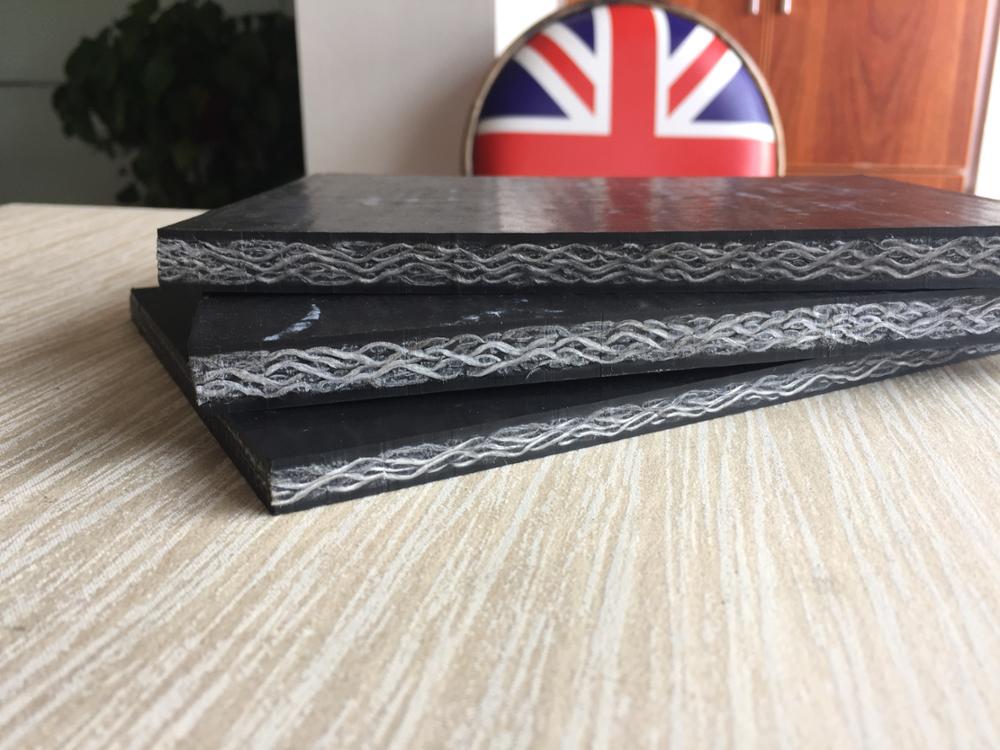

PVG type is covered with covers mainly composed of rubber, which further improves the troughability, resistance to wetness and slip, resistance to low temperature, elongation and wear resistance of the belt. Both top and bottom cover are PVG, the belt can be used to carry materials mixing some water at the slope no more than 20 degree,elongate life of belt.

Safety Performance of Solid woven conveyor belts

Safety performance of PVC/PVG solid woven conveyor belt:
Performance name	alcohol combustion	propane combustion	antistatic property	roller friction
Standard value	average value≤3S,unit value≤10S(has covering glue)	≥250mm	≤3X108Ω	≤325°C
Standard value	average value≤5S,unit value≤15S(no covering glue)	≥250mm	≤3X108Ω	no spark

Safety Properties
Items			Indexes
Anti-static property	Average electrical resistance of both surfaces (요) Indexes		3.0*108
Drum friction	Surface temperature of drum ℃		≤325
Drum friction	Any test piece shall not show any sign of flame or glow
Burning on spirit	Burning with cover rubber	Average duration of flame for six test pieces(s)	≤ 3
	Burning with cover rubber	Duration of flame for any individual test piece (S)	≤ 10
	Burning without cover rubber	Average duration of flame for six test pieces(s)	≤ 5
	Burning without cover rubber	Duration of flame for any individual test piece (S)	≤ 15
Buring on propane burner	length that is completely undamaged by flame.mm		≤ 250mm

PVC solid woven conveyor belt specification and technical data

Executive standard of the product MT914-2008						Safety parameter 10(breaking strength*1/10)
Conveying inclination<16°C
Standard model No.	Corresponding grade	Breaking strength≥,Nmm		Elongation at break≥,%		Thickness mm	Recommend min diameter of the roller
Standard model No.	Corresponding grade	Vertical	Horizontal	Vertical	Horizontal	Thickness mm	Recommend min diameter of the roller
680s	Four	680	265	15	18	8	320
800s	Five	800	280			8.5	400
1000s	Six	1000	300			9	500
1250s	Seven	1250	350			10.1	500
1400s	Eight	1400	350			10.5	630

GRADE	STANDARD
M24	IS: 1891 (PART I)
HEAT RESISTANT	IS : 1891 (PART II)
OIL RESISTANT	IS : 1891 (PART III)
FOOD GRADE/HYGENIC	IS : 1891 (PART IV)
FIRE RETARDANT	IS: 1891 (PART V)

GRADE	TEMPERATURE RESISTANCE
HR	100-120 Deg.C
SHR	125-150 Deg.C
UHR	180 Deg.C
PYROSHIELD 200	200 Deg.C
PYROSHIELD 250	250 Deg.C
PYROSHIELD 300	300 Deg.C

PVG solid woven belting technical data

Executive standard of the product MT914-2008 BS3289 HG2805						Safety parameter 10(breaking strength*1/10)
Conveying inclination<20°C
Standard model No.	Corresponding grade	Breaking strength≥,Nmm		Elongation at break≥,%		Recommended minimum diameter of the roller
Standard model No.	Corresponding grade	Vertical	Horizontal	Vertical	Horizontal	Recommended minimum diameter of the roller
680s	4	680	265	15	18	400
800s	5	800	280			500
1000s	6	1000	300			630
1250s	7	1250	350			750
1400s	8	1400	350			750

Solid woven conveyor belt Cover Grade

Mechanical properties of cover(DIN22109)
ITEM	Tensile strength MPa (min)	Elongation at break %(min)	Abrasive wear mm3(max)
PVG	15	350	200
PVC	12.5	300	200

Solid woven conveyor belt specification

Main physical properties:
	Min.Tensile		Carcass thickness	Carcass weight	Carver grade and recommended thickness		Belt width	Rec pulley diameter
	Strength(N/mm)		mm	Kg/m2	mm		mm	mm
	Warp	Weft			Pressed PVC	PVG	500-2200	400
680/1	680	265	6.5	8.5	1.5+1.5	1.5+1.5		500
800/1	800	320	6.9	9	1.5+1.5	1.5+1.5		630
1000/1	1000	350	7.5	9.7	2+1.5	2+1.5		750
1250/1	1250	350	8.5	11	2+2	2+1.5		750
1400/1	1400	350	9	11.5	3+2	2.5+1.5		800
1600/1	1600	450	9.5	12.3	3+2	2.5+1.5		800
1800/1	1800	450	10	13	3+2	3+2		1000
Jan-00	2000	450	10.5	13.6	3+2	4+2		1200
Jan-00	2500	450	12.5	14.5	3+2	5+3		1500
Jan-00	3100	450	17	17	Chosen based on conveyor systems
Jan-00	3500	500	20	19
Jan-00	4000	500	25	22

Frequently Asked Questions

1. How can I receive a quote?

To get a quote, you can call us on +86 18724717692 (China) or send a text on WhatsApp/WeChat (same number). For other countries’ contact details, visit our contact us page.

2. Can I order a sample before placing an order?

New customers can ask for a sample; we charge a small fee for the same. We refund the fee after you place an order. Get in touch with us to place a sample order.

3. What is the Pressed PVC thickness on each side?

Both top and bottom of the conveyor belt is made of PVC. Thickness can be up to 4 mm on each side.

4. Is solid woven conveyor belts resistant to edge-wear?

Yes. Our manufactured conveyor belts are resistant to edge-wear, rot, moisture and mildew. To see other specifications, click here.
