Impact Roller

Impact Roller /Idlers

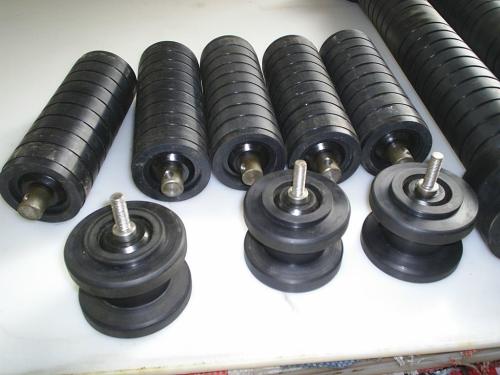

Our company specializing in the production of Impact Roller , Impact Roller surface by cold elastic rubber ring of drill string and the lock ring, Impact Roller installed on the conveyor material down to the bottom of the section, reduce the impact of conveyor belt by extending the service life of the conveyor belt.

The cushioning roller is the main buffer.

Impact Roller used in belt conveyor by where the slow blanking the impact on the conveyor belt, Impact Roller mainly for coal, coking plant, chemical plant and other corrosive environment and developed a kind of roller, Impact Roller itself has the toughness is 10 times more than ordinary metals, Impact Roller life is five times as traditional column shoes, corrosion resistant flame retardant, antistatic, light weight and other characteristics, widely used in mining.

Description of Impact Roller for Belt Conveyor

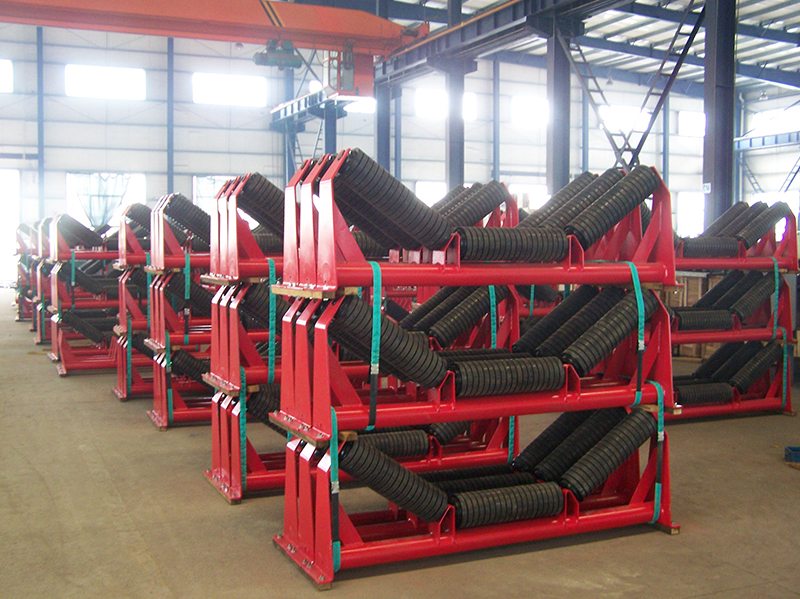

Conveyor idler, impact roller Inner structure

Tube	Tube special for roller, compared with ordinary steel tube, it has great advantages in diameter,thickness tolerance, bending degree, ovality and so on which can make the roller have minimum play radial eccentricity
Shaft	High precision cold-drawn steel which has high brightness and little tolerance.
Bearing	Use deep groove ball bearing with big C3, C4.clearance, which can make rollers revolve flexibly. Bearing type is 2RZ and 2RS with oil seal which have advantage in dust proof.
Bearing Housing	Formed by many times of punching which can make precise size Type:Straight edge and flanging edge
Seals	Seals Type: DTII, TD75, TK Contact, TK labyrinth, TKII Material: ABS resin, Nylon, Polyurethane, polyformaldehyde and so on.
Painting	Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

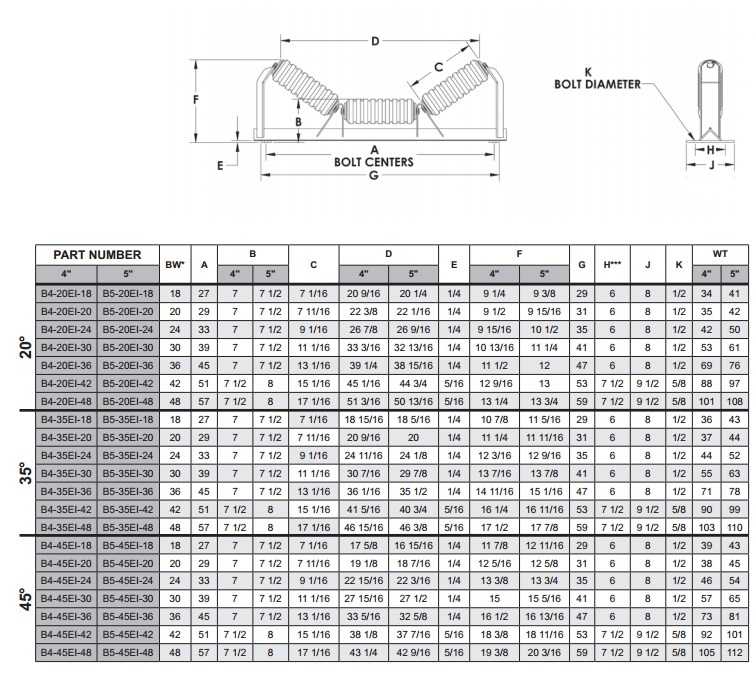

Drawing	We have professional engineer to design the type of roller. Also we can produce according to your drawing and request.

Application:

Impact roller used in belt conveyor by where the slow blanking the impact on the conveyor belt, mainly for coal, coking plant, chemical plant and other corrosive environment and developed a kind of roller, it itself has the toughness is 10 times more than ordinary metals, life expectancy of traditional column shoes five times, corrosion resistant flame retardant, antistatic, light weight and other characteristics, widely used in mining.

The mechanical properties of the impact roller are similar to bronze, with good wear resistance and good self-lubricating properties without damaging the belt.
The cushion roller has superior anticorrosion performance.

Rollers and seals are made of high polymer materials and corrosion resistant.
The service life can be more than five times that of ordinary roller.
