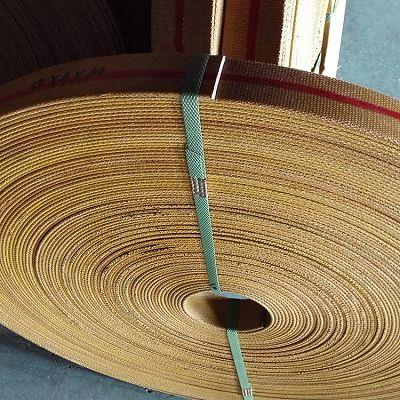

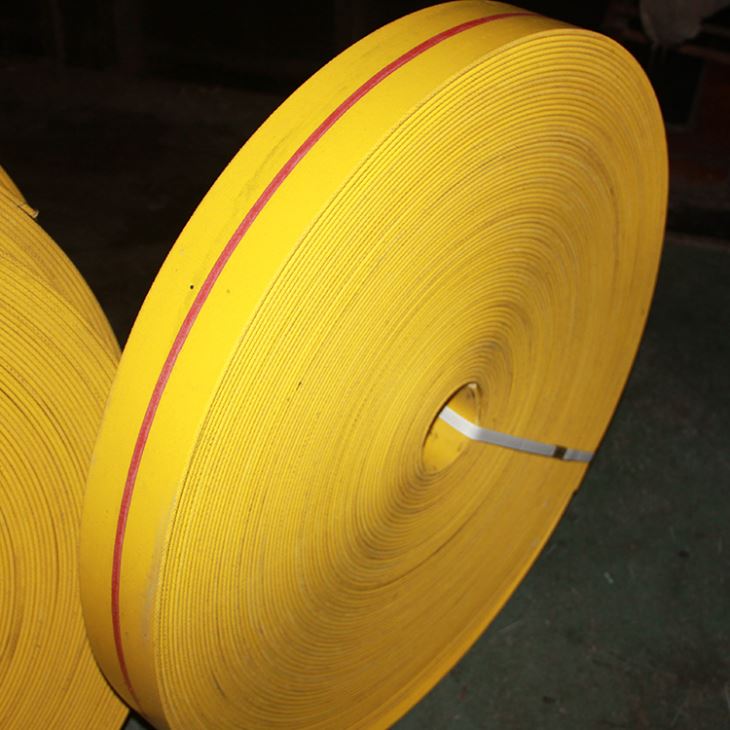

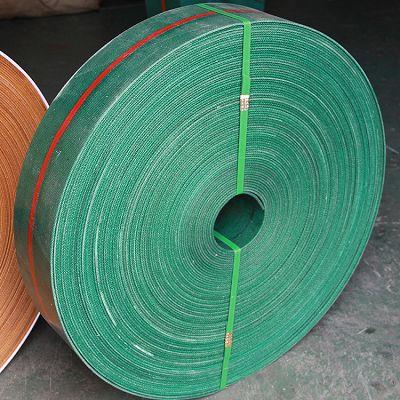

Flat Transmission Belting
Flat transmission belt is a common flat rubber belt, also called transmission belt, usually uses high-quality cotton canvas as its skeleton layers.

Application:
It is mainly used in factories, mines, docks, metallurgical industry, ordinary mechanical power transmission, great power processing of grains like rice and wheat, irrigation equipment, wood cutting and other power transmitting equipment for industry and agriculture.

Characteristic: 1. Uniformity in Thickness & Width
2. Higher longitudinal & transverse strengths
3. Higher levels of adhesion
4. Controlled elongation
5. Lighter in weight thus consuming less power
6. Improved resistance to flex fatigue test.

Constructional Features of Rubber Transmission Belts:
Width: 25mm to 1500 mm
Length: 100 mtr. Roll length
Fabrics: Hard cotton ducks/soft cotton
Plies: 2 plies to 10 plies
Type of edges: Cut edges and round/ folded
Colors: Beige, Grey, Camel, Yellow, Black ,or as per customer requirement

Products Specification

Width(mm)	Plies	Width Toleance (mm)
20 25 30 40 45 50 55 60	3-4	±2
65 70 75 80 90 100 125	3-6	±2
140 160 180 200 224 225	4-6	±2
288 300 315 350 400 450 550 600	4-10	±2

Physical Property

Tensile strength specification	Overall thickness tensile strength		Reference number of canvas layers
Tensile strength specification	Vertical minimum	Horizontal minimum	Reference number of canvas layers
190	190	75	3
240	240	95	4
290	290	115	5
340	340	130	6
385	385	225	7
425	425	250	8
450	450	/	9
500	500	/	10
