Steel breaker conveyor belts

Steel breaker conveyor belts

STEEL CORD BELT WITH THE HIGHEST STRENGTH

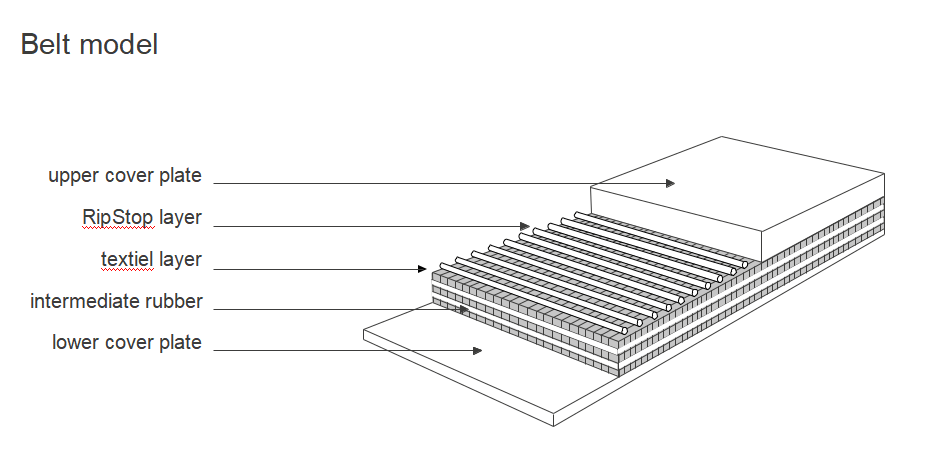

Steel breaker conveyor belts can be equipped with textile or steel breakers to provide efficient protection.

Steel breaker conveyor belts

These breakers can be included in either the top or both the top and bottom cover. They guarantee extra impact and rip protection for the belt and potentially allow smaller pulley diameters, serving as the basis for a longer service life and a lower risk of severe damage.

Advantages of Steel breaker conveyor belts

Rip stop steel breaker rubber conveyor belt with steel cable reinforced, the advatage as follow,

  • Choice of several breaker types, either steel or textile, perfectly tailored to the specific application.
  • High elasticity in transversal direction provides high impact resistance while maintaining an excellent troughability.
  • Increased carcass protection against longitudinal cuts and punctures
  • Improved absorption and distribution of the impact energy over the full belt width.
  • Higher protection against penetration by foreign objects.Enhanced load distribution on the drive pulley and therefore more room for optimisation of pulley diameters.

RIP STOP, STEEL & KEVLAR BELT

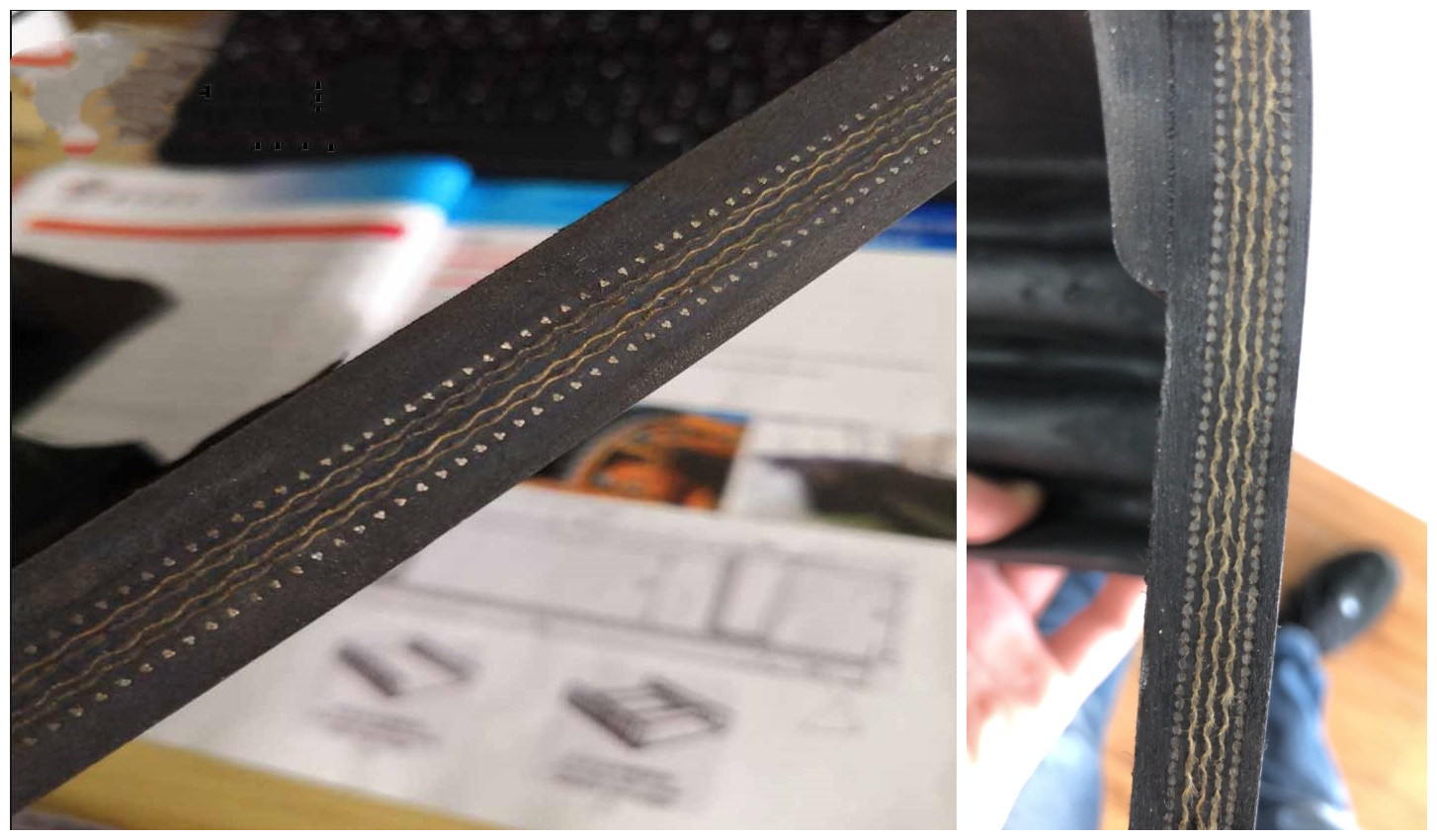

Cross Stabilized Conveyor Belts

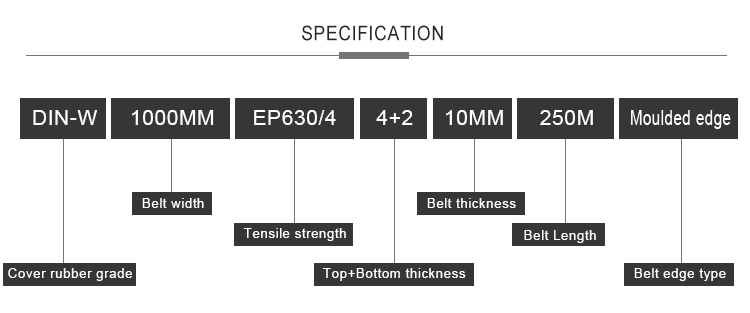

Specification

Rip Resistant Conveyor Belts
STEEL FABRIC REINFORCED ELEVATOR BELT

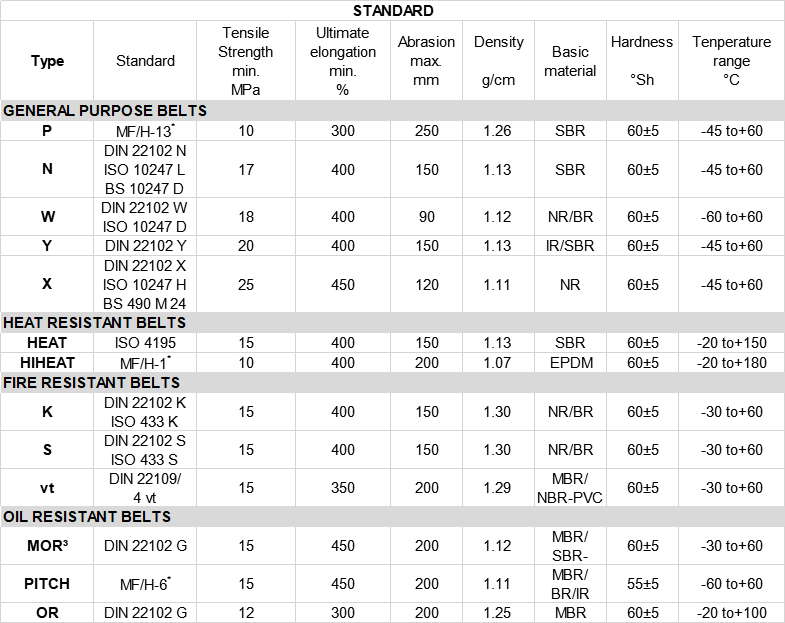

Cover Rubber Grade
8MPA,10MPA,12MPA,14MPA ,15MPA,17MPA
18MPA,20MPA,24MPA
DIN-ZDIN-N,DIN-D,DIN-W,DIN-Y,DIN-X,
RMA-1,RMA-2.
HR150°C,HR180°C,K, S, VT, MOR, OR
Belt Width (mm)
200,300,400,500,600.650,700,800,1000,1200,1400,1500,1600,1750,1800,2000,2200,2500
18″,20″,24″,30″,36″,40″,42″
48″,60″,72″,78″,86″,94″
Tensile Strength
CC56,TC70,EP100,EP125,EP150, EP200, EP250,EP300,EP350,EP400,
EP250/2 EP315/3,EP400/3,EP500/3,EP600/3
EP400/4,EP500/4,EP600/4
EP500/5,EP1000/5,EP1000/4,EP1250/5
EP600/6,EP1200/6
Top+Bottom Thickness
0+0,0.5+0.5,2+0,3+0,3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,5+2,8+3,
3/16″+1/16″, 1/4″+1/16″
Belt Thickness
4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm
Belt Length
10m,20m,50m,100m,200m,250m,300m,500m
Belt Edge Type
moulded(sealed) edge or cut edge

Product packaging

We offer a variety of packing solutions, it can also be customized according to your requirements.

steel breaker conveyor belts

Shipping loading

Reinforced Rubber Conveyor Belts

FAQ

1. Are you manufacture or trading company?
We are factory, established in 2003.

2. How long is your delivery time?
5-7 days for the stock, 15-30 days for the mass production.

3. Are there technical data sheet and test report?
 We have export goods all have test report before delivery. Data sheet will accompany with quotation sheet always.

4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.

5.Do your company have the certificate of origin COO, Form E, Form P, FTA ?
Yes, sure we can provide COO as customer request and Chamber of Commerce Certificate of Origin.

Get A quote!

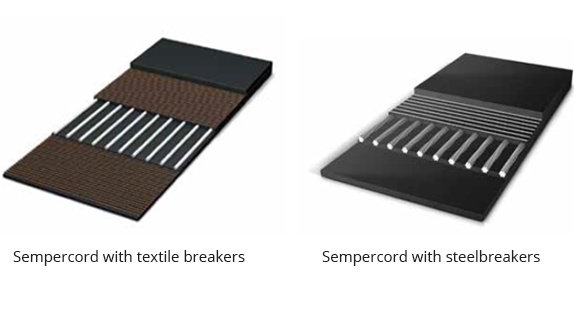

Types of breakers
Available in

Steel breaker conveyor belts

Three types of breakers are available:

F – Fabric breaker as woven textile breaker provides higher impact, cut and especially puncture resistance

T – Textile breaker as high strength single-cord-breaker provides excellent carcass protection and transversal elasticity

S – Breaker made of single steel cords in a transversal direction offers higher strength with high or super high elongation for high elasticity and enhanced protection against rips.

Reference specifications

Available in
Belt type Covers (mm) Belt width
XE 400 / 3 4 + 2 400 – 1 450 mm
XE 400 / 3+2 4 + 2 650 – 1 450 mm
XE 250 / 2 2 + 0 400 – 2 000 mm
XE 400 / 3 2 + 0 400 – 2 000 mm

XE 250 / 2 Oil & Grease Resistant 2 + 0 400 – 2 000 mm
XE 400 / 3 Oil & Grease Resistant 2 + 0 400 – 2 000 mm

The cover types and thicknesses are selected according to belt service conditions, taking the following factors into consideration:

  • Loading conditions
  • Number of working cycles
  • Belt service life under continuous operation
  • Material lump size
  • Material abrasiveness
  • Fire resistance
  • Temperature conditions
  • Resistance to chemicals
Recommended minimum cover thickness for Sempercord belts
Application Carried material Top cover (mm) Bottom cover (mm)
Underground and surface
conveyors
Coal, gravel, overburden 6.0-8.0 4.0-6.0
Underground and surface conveyors, reloading conveyors, short conveyors Unsized coal,ores, stone,overburden 8.0-10.0 5.0-6.0
Excavator and dumping conveyors, reloading stations Lump coal,stone ores 12.0-18.0 6.0-10.0
