Rip stop conveyor belt

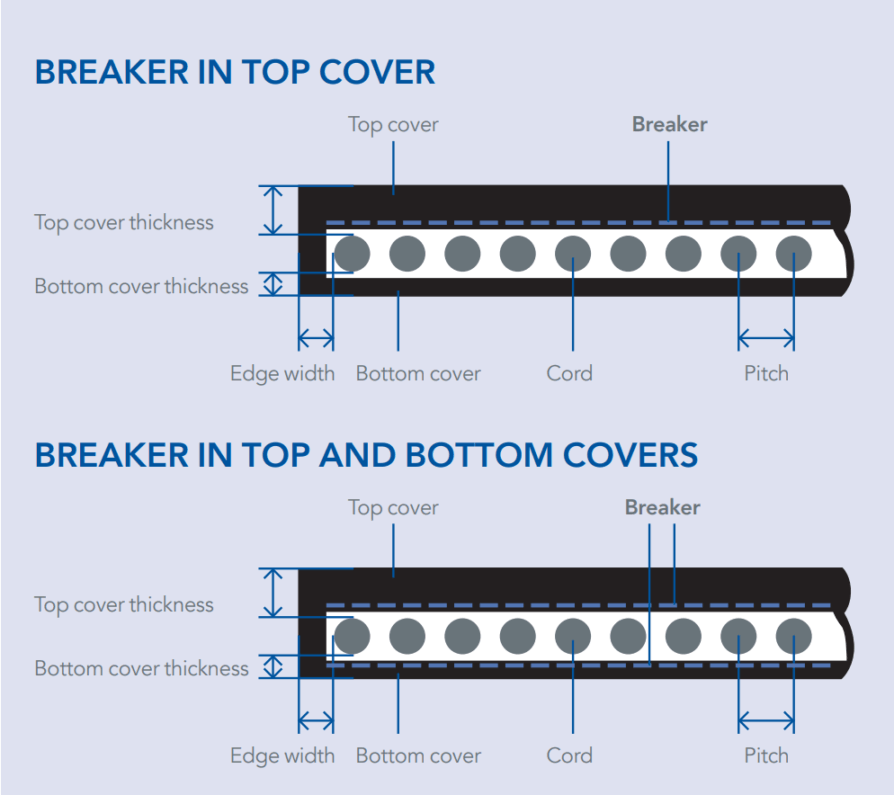

Rip Stop breaker reinforced tear resistant steel cord rubber conveyor belt

Rip stop conveyor belt Reinforcement properties

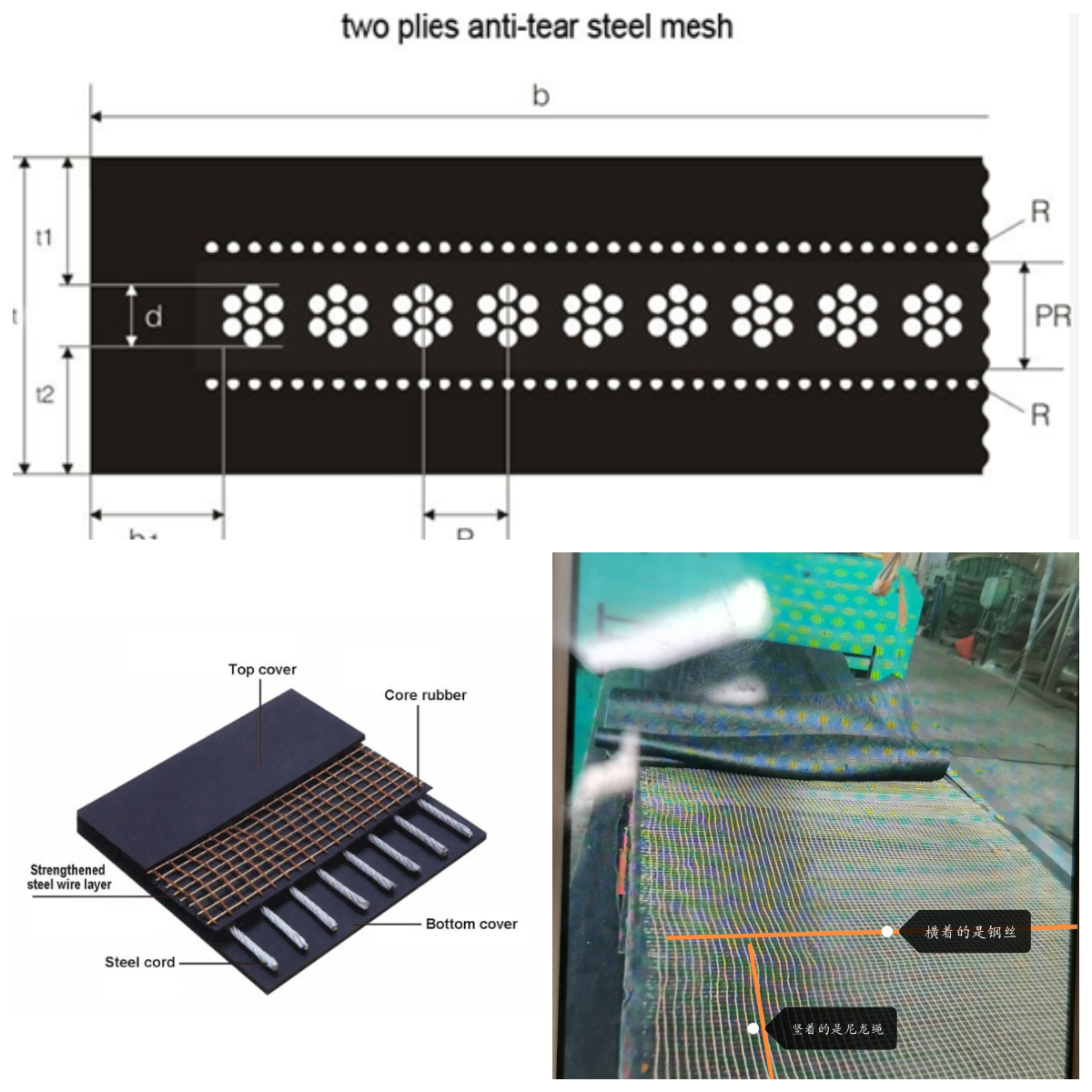

Made of high-tensile steel cords and various cover grades . A typical carcass with 7 x 7 hot-galvanised steel cords provides a tensile strength of up to 2,000 N/mm. Also available as 7 x 19 for higher tensile strength (10 000 N/mm).

Standard cords have an elongation of 0.22 – 0.28%. High structural strength and pull-out strength ensure good resistance against fatigue. The open cross-lay design of the cords and the chemical adhesive system ensure that the core rubber penetrates thoroughly, bonds well and protects against corrosion for long-term integrity.

Cover grades

The belts come with various cover grades, all made of high-quality rubber with extremely high resistance to abrasion, cutting and impact and with excellent ageing properties. The choice of cover grade will depend on the application and will also determine the working life of the belt.

Wear-resistant

Available in X, Y, W grades (and similar) for heavy-wear conveying applications such as bulky, sharp materials like heavy, abrasive rocks. High-quality cover grades are recommended to offer the best protection to the belt carcass.

Heat-resistant

Different types of grades are available for high-temperature applications (T120 and T200) such as clinker, coke, foundry sand and slag. Can be used for transporting material at continuous temperatures of up to 190 °C, with peaks of up to 200 °C

Flame-resistant

Available in flame-resistant grade K to comply with ISO 340. Can be used in tunnel projects but not underground applications.

Applying Monster’ s developed Sensor Guard, an electronic belt protection system that limits belt rip. Today, Monster’s sensor guard system stands alone as the most proven and reliable rip detection system in the world, with installation on many coal, copper, iron ore and other applications, sensor Guard has proven itself by reducing downtime costs, replacement costs and lost production.

Type A – Abrasion Resistant Cement Works: Quarries, open storage and reclamation, preblending.Ports: Ship loading or unloading installations . Quarries: Primery and secondary conveyors. Public Works: Boring, tunneling earthmoving. Electricity Generating Stations: Pre-blending, feed to hoppers, open storage and reclamation.Sugar Mills: Handling of raw beets.Pulp Mills: Handling of logs. Coal Mines: Tipping, refilling, washing. Steel Works: Iran ore hanling, open storage and reclamation, sinter plant, blast furnace feed,slag recovery.

Monster Belting constantly endeavor towards innovation and quality, fulfilling high demand for quality conveyor belts. This enables us to have a responsive approach to customer needs and satisfy their requirements quickly and with a high degree of flexibility. Monster Belting can offer customized specifications to application needs. RMA I, RMA II ,DIN-X

Industries: Coal Mines | Thermal Power Plants | Ore Mines | Ports | Coal prep plants, Ports and Rail, Chemical and processing , Mining and Minerals, Energy and Power, Engineer,
