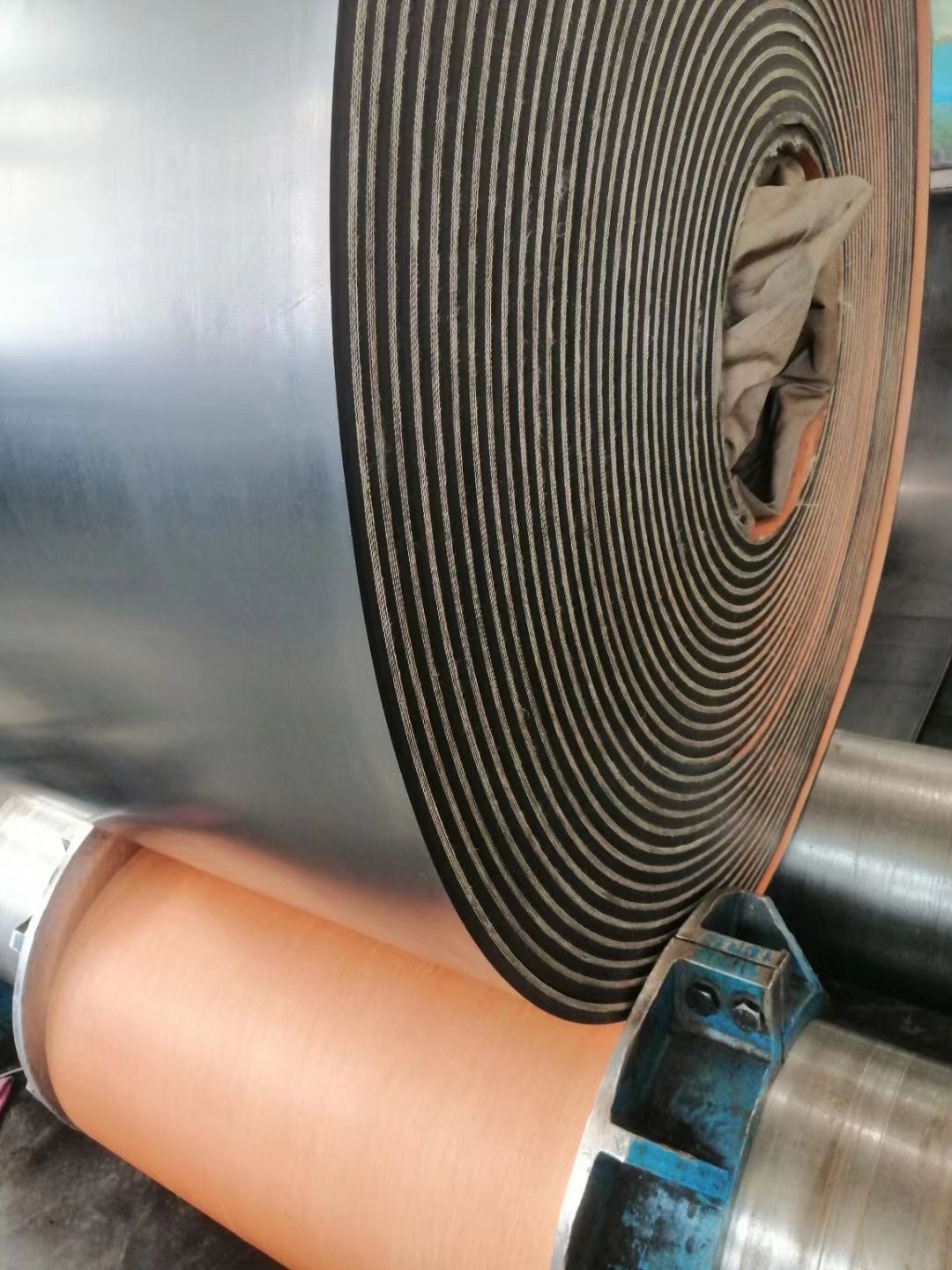

Solid Woven Conveyor Belts (PVC/PVG) for Coal Handling
Solid Woven Conveyor Belts Advantages:
- Good elasticity, anti-impact and abrasion resistance.
- High adhesion.
- Higher strength.
- Good flexing capacity and troughability.
PVC cover: suitable for conveying material up to 16° inclination in dry conditions.
PVG cover: suitable for conveying water material up to 20°inclination.
Application: mainly for the underground coal and potash mining industry.
Conveyor Belt is Fire proof
Designed primarily for underground mining applications, solid woven conveyor belts are ideally suitable for long-distance transportation.
Due to the belt’s smooth and low abrasive PVC/PVG cover, maintenance and belt cleaning is becoming an easy and straightforward process. Meeting the fire resistance and antistatic requirements of all international safety standards, our solid woven conveyor belts offer exceptional conveying performance.
Various compounds in the production process such as plasticizers, guarantee a stable cover hardness and avoid the cracking of the conveyor belt over-resulting in a trouble free performance of the belt.
A GUIDE TO FIRE RETARDANT CONVEYOR BELTS
Advantages:
- Good elasticity, anti-impact and abrasion resistance.
- High adhesion.
- Higher strength.
- Good flexing capacity and troughability.
PVC: suitable for conveying material up to 16° inclination in dry conditions.
PVG: suitable for conveying water material up to 20°inclination.
Application: the underground coal and potash mining industry.
Application: the underground coal and potash mining industry.
| Mechanical Properties of Solid Woven Belts Covers | |||||
| Type | Tensile Strength (Mpa) | Elongation at Break (%) | Abrasion index (mm3) |
||
| PVC | 15 | 350 | 200 | ||
| PVG | 12.5 | 300 | 200 | ||
| Physical Properties of Vasco solid woven conveyor belts | |||||
| Specification | Tensile Strength (N/mm) | Elongation at Break (%) | Min. Pulley Diameter Recommended (mm) | ||
| Warp | Weft | Warp | Weft | ||
| 680S | 680 | 265 | 15 | 18 | 400 |
| 800S | 800 | 320 | 15 | 18 | 500 |
| 1000S | 1000 | 350 | 15 | 18 | 630 |
| 1250S | 1250 | 350 | 15 | 18 | 750 |
| 1400S | 1400 | 350 | 15 | 18 | 750 |
| 1600S | 1600 | 450 | 15 | 18 | 800 |
| 1800S | 1800 | 450 | 15 | 18 | 800 |
| 2000S | 2000 | 450 | 15 | 18 | 1000 |
| Physical Properties of Vasco solid woven conveyor belts | |||||
| Surface Resistance: ≤3×108Ω | |||||
| Drum Friction Test: temperature ≤325ºC, with no sign of flam, sparks or glow. | |||||
| Burner Flame Test: |
With cover | Average: ≤3.0S | |||
| Individual: ≤10.0S | |||||
| Without cover | Average: ≤5.0S | ||||
| Individual: ≤15.0S | |||||
| Propane Burner Test: Length remains undamaged, not blistered or charred >250mm | |||||
| High energy propane burner test: undamaged length in full width>2250mm | |||||
