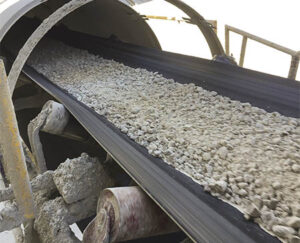

Bucket Elevator Conveyor Belt with Steel Cord in Cement Plant

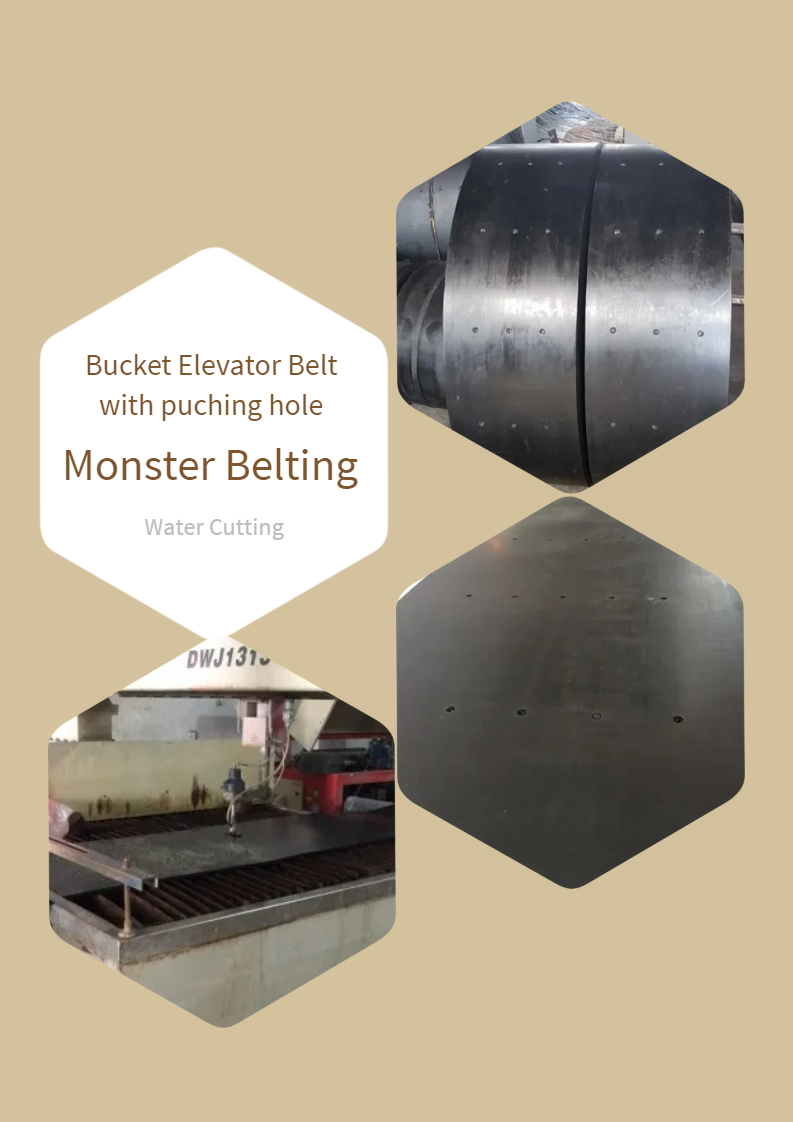

The steel bucket elevator Belt is a rubber elevator belt with a special steel cord core. The cords provide low elongation with high elasticity in the length, and cross rigidity in the width. The built-in elasticity allows running over slightly crowned pulleys which greatly improves belt tracking, and helps to avoid belt wandering which is often the reason for elevators shutting down. The rigid weft cords act as a barrier to ripping and tearing which increases the holding ability for the bucket bolts. This produces a good cross rigid belt resulting in excellent straight tracking characteristics.

In contrast, most conventional steel cable belts lack elasticity and consequently have to run over truly flat, cylindrical pulleys which increases the risk of belts off-tracking.

The Monster bucket elevator belts is designed for heavy duty/industrial bucket elevator applications with long centre distances that require stable running and reliable belts with high safety factors. All Monster bucket elevator beltss are manufactured in accordance with DIN 22102 and ISO norms.

Bucket width(mm)		250	315	400	500	630	800	1000	1250	1400	1600
Bucket volume(L)		5	6.5	14.6	18	29	37	58	73	99	114
Conveying Capacitym³/H	Φ100%	85	117	225	280	450	570	950	1255	1547	1780
	Φ75%	63	88	168	210	338	428	712	941	1160	1335
Lifting height(m)		>100	>100	>100	>120	>120	>120	>130	>130	>130	>130

Elevator conveyor belt is composed of rubber belt and elevator bucket, which need a belt with
high strength and low elongation in service. The Bucket Elevator Conveyor Belt is applicable to
transport vertically loose powdery materials of usually not more than 50mm in diameter, such as
crushed limestone, sand, gravel, cement, grain etc.
