Solid Woven Coal Mine PVC Conveyor Belt

Solid Woven Coal Mine PVC Conveyor Belt

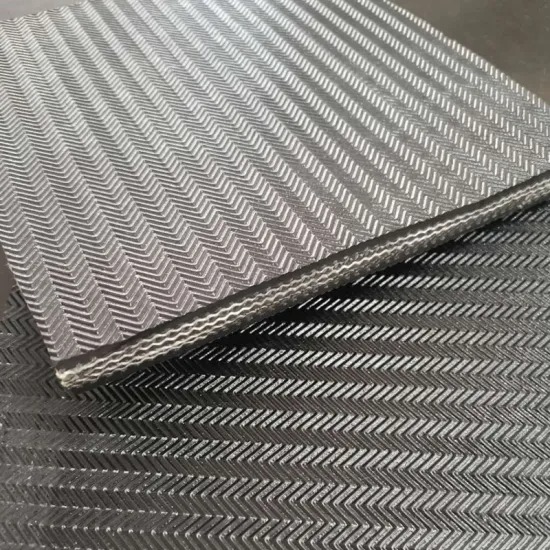

Solid Woven Coal Mine PVC Conveyor Belt Features and AdvantagesPVC-Pvg-Solid-Woven-Conveyor-Belt (1)

1. High tensile strength

The pressed PVC belt has higher strength compared to the ordinary PVC conveyor belt at the same level, the pressed conveyor belt with a body structure further optimized, and higher internal bond strength.

2.Excellent joint performance

The belt can adopt mechanical joints, also it can make use of vulcanized joints. The joints efficiency is high, and it allow the joints quick finished within poor work situation. Then it ensures customers’ production carry on normally.

Application fields
Metallurgy, power stations, chemical and metallurgy industries.Tensile Strength & Width
Tensile strength: 500 ~ 2500 N/mm. Width: 500 ~ 2000 mm.

Main Properties and Specification
Standard MT914-2008 Selection Safety Coefficient
10 (Tensile Strength *1/10)
Slope <16ºC
Standard Type Corresponding Grade Tensile Strength≥, Nmm Elongation ≥,% Suggested Min-diameter of
Transmission Drum
Longitudinal Horizontal Longitudinal Horizontal
680s 4 grade 680 265 15 18 320
800s 5 grade 800 280 400
1000s 6 grade 1000 300 500
1250s 7 grade 1250 350 500
1400s 8 grade 1400 350 630
1600s 9 grade 1600 400 750

Safety Performance
Function Name the alcohol combustion the propane
combustion
conduct electricity
the function
the roller rub
Standard value average value≤3s,
list value ≤10s(have the cover gum)
≥250mm <=3×108 <=325ºC
average value≤5s,
list value ≤15s(have no cover gum)
Have no mars

Our advantages :

1. More than 30 years experiences
Our company was established in 1998,the registered capital is US$16 Million.

2. First-class producing equipment and management system
We have more than 8 conveyor belt production lines, and advanced Drum Type Vulcanizing Machine.

3. Products are certified with ISO9001 standard
We have ISO 9001 Quality Control System, ISO14000 Environment Management System and GB/T28001 Occupational Health&Safety Management System, Measurement Management System, State Standardization Good Compliance Certificate.

4. Strong technical support and R&D capacity
We have a separate design, research and development capability and can be customized according to customer demand.
Our company possesses a complete set of detection apparatus, the independent chemical analysis and physical labs, ensuring all the raw materials. Semi-products and finished products are under control and there no unqualified materials and no unqualified product.

B2400MM, NN/EP conveyor belt

Monster Belting manufacturer in China.
Warmly welcome your kind inquiry!
