Rubber sidewall weight feeder conveyor belt
Rubber sidewall weight feeder conveyor belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space requirement,no transfer point, low maintenance, and big capacity. A Rubber sidewall weight feeder conveyor belt can be designed into a set of complete transportation system according to application.
Corrugated sidewall conveyor belt Feature:
Increase the transporting capacity to 4 times compared to the standard conveyor belt.
Save installation space due to the possibility of increasing the angle of inclination up to 90。
Small pulley diameters may be used, without the need for skirt boards. Facility costs are reduced with flat rollers
Application
Quality control
Step 1: Raw material inspection
.jpg)

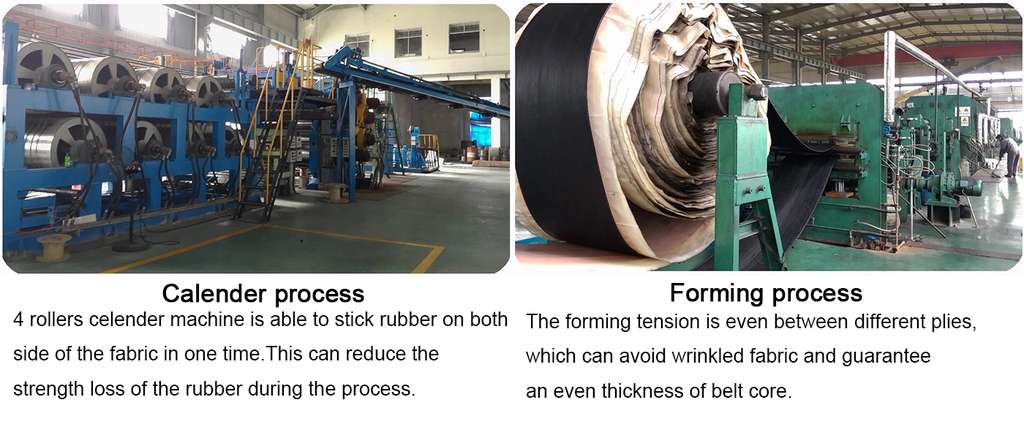

Step 2: Advance equipment to guarantee quality from the details
.jpg)

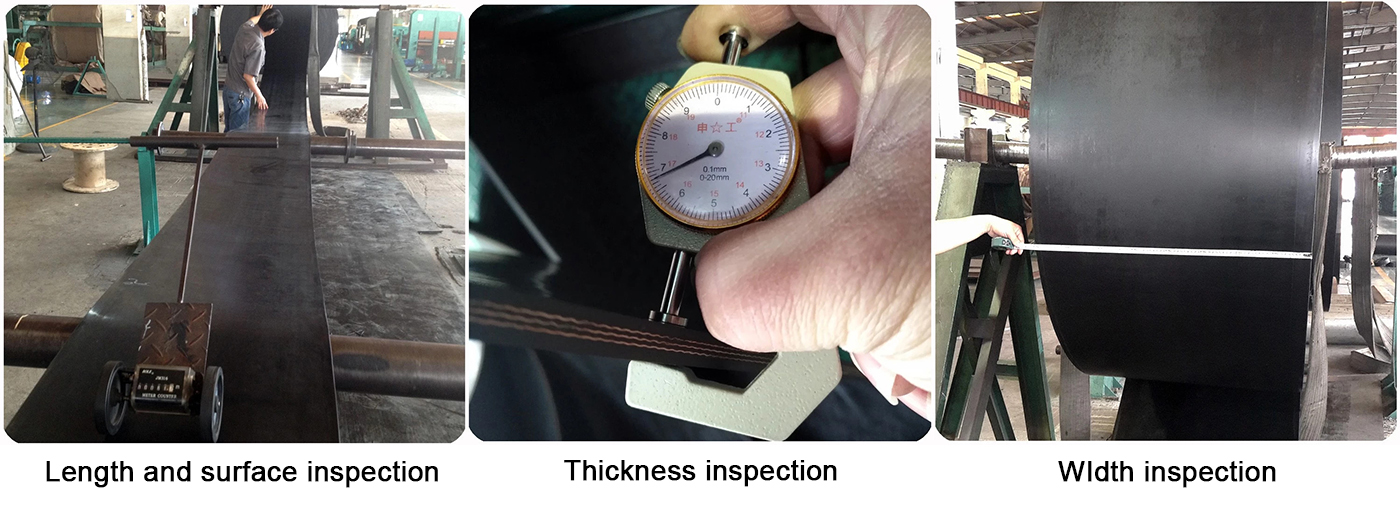

Step 3:Finished belts inspection
We have an inspection team to inspect the surface and dimension of each conveyor belt. If any problem on belt surface, we will repair at once in our factory.

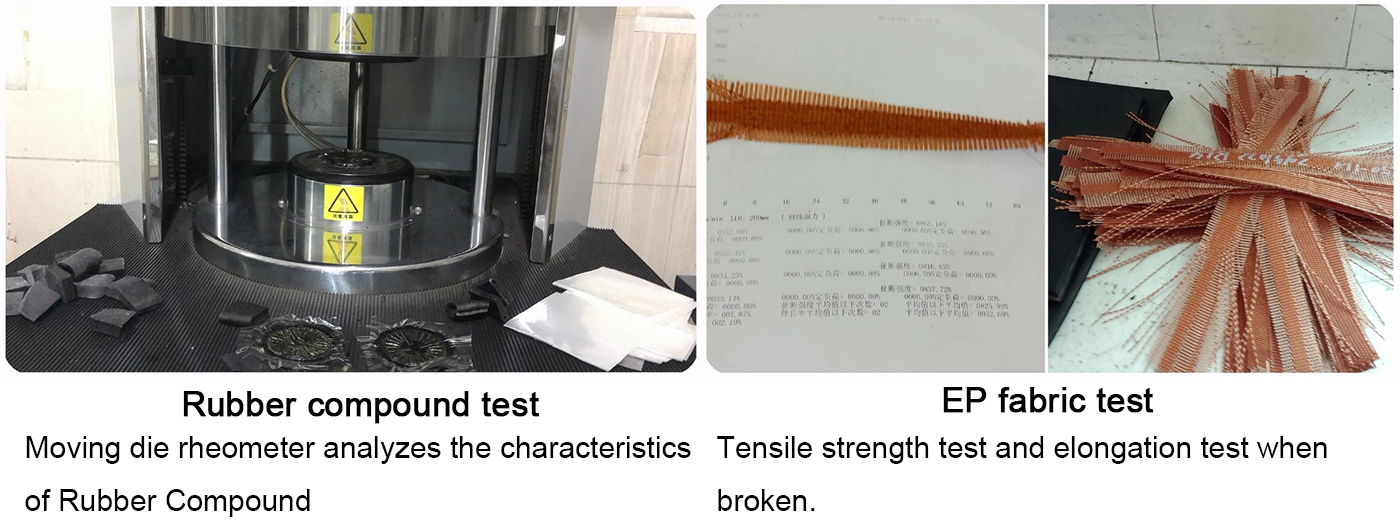

Step 4: Technical data test
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
Sidewall major line shapes:

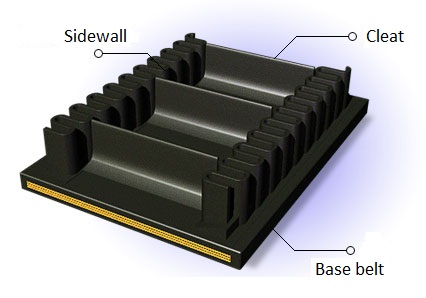

Base Belt Structure:
Reinforced core; Cross rigid.
Sidewall height: 60~500mm
Cleat height: 55~460mm
Belt core: Cotton, Nylon, EP or Steel Cord Belt width: 300~1800mm

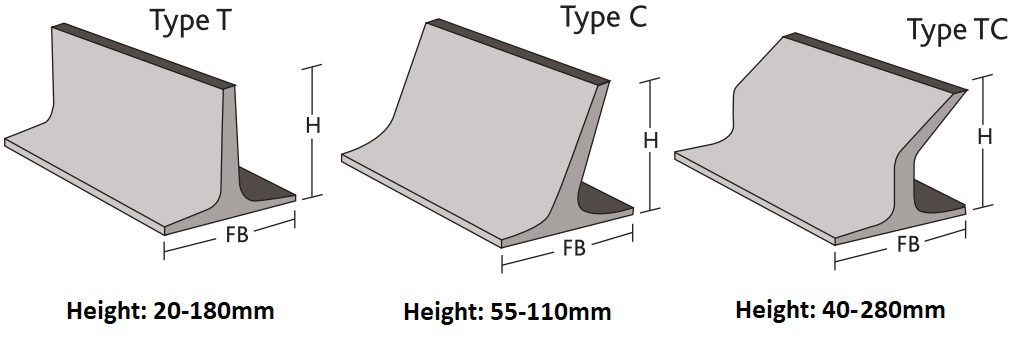

Cleat types:
The cleat is made of enforced fabric, solid, anti-shock to avoid distortion.
“T” cleat are normally used for abrasion condition
“C” cleat are normally used up to 40 degree
“TC” is normally used from 40 degrees to 90 degree

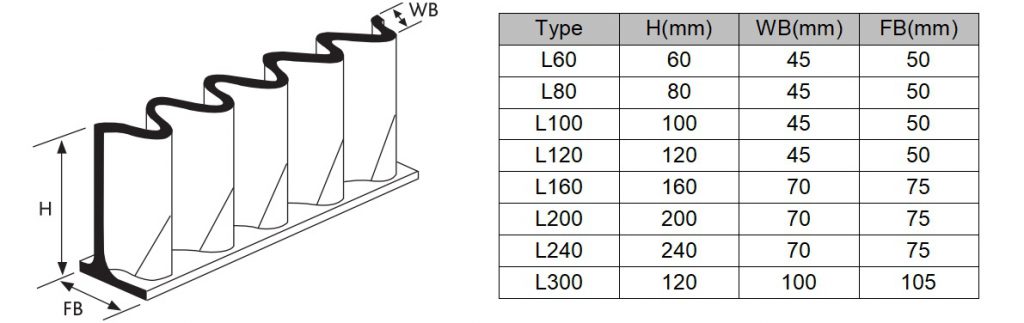

Sidewall type:

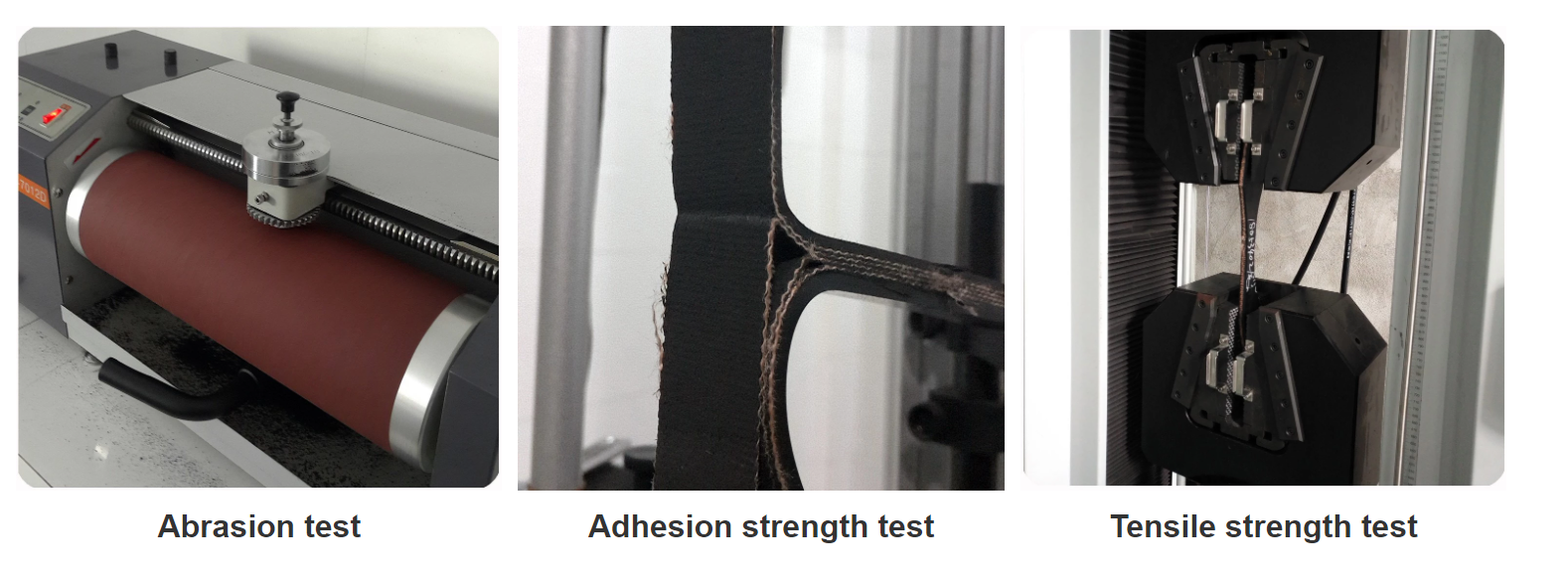

Technical data test
We have a lab to test all raw materials and rubber compound.For each roll of conveyor belt,the lab will test the following features, and issue Quality Test Report.
