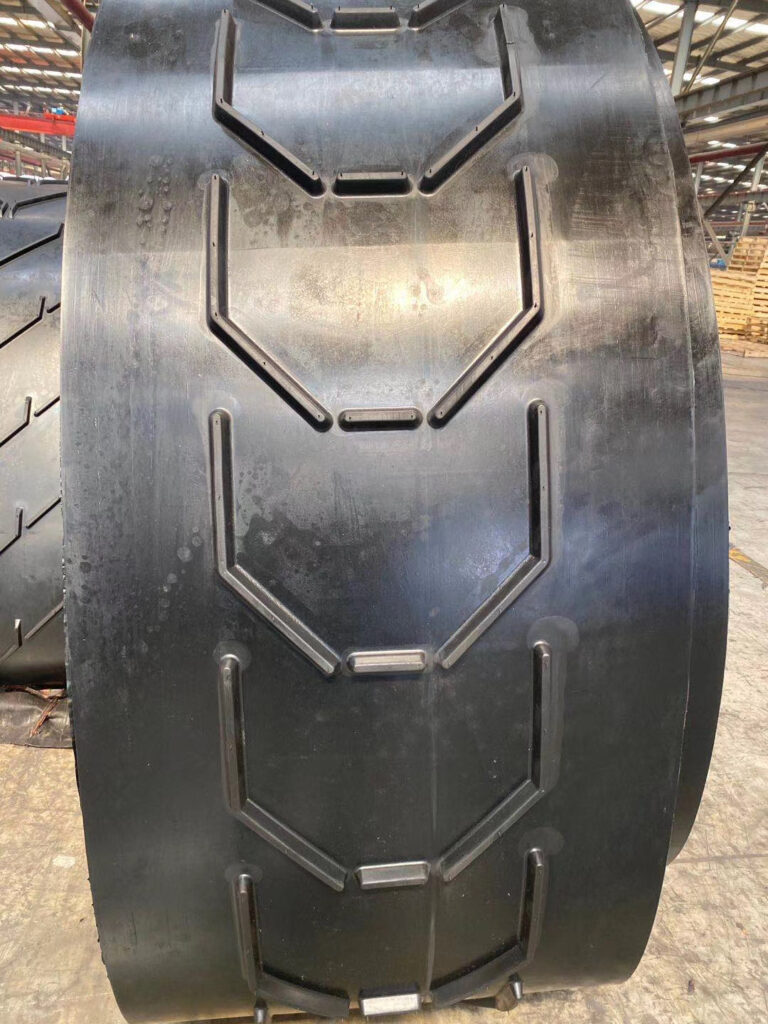

C25 Closed U chevron belt including four pattern mold types
C25 P550 Closed U chevron belt ;
Profile height 25 mm ;
Profile C25 P550 | profile width 550 mm
| Available in | ||
| Belt type | Covers (mm) | Belt width |
| EP 250 / 2 | 3 + 1½ | 600 – 650 mm |
| EP 400 / 3 | 3 + 1½ | 600 – 650 mm |
Profile C25 P550 | profile width 550 mm
| Available in | ||
| Belt type | Covers (mm) | Belt width |
| EP 250 / 2 | 3 + 1½ | 650 mm |
| EP 400 / 3 | 3 + 1½ | 650 – 800 mm |
Profile C25 P750 | profile width 750 mm
| Available in | ||
| Belt type | Covers (mm) | Belt width |
| EP 400 / 3 | 3 + 1½ | 1 000 – 1 200 mm |
Profile C25 P1000 | profile width 1 000 mm
| Available in | ||
| Belt type | Covers (mm) | Belt width |
| EP 400 / 3 | 3 + 2 | 1 400 – 1 600 mm |
| EP 500 / 4 | 3 + 2 | 1 400 – 1 600 mm |
Product Description
Type: C25 Closed U chevron belt , open V, close V , L type, H type , multi-V type, etc.
Width of belt: 300mm–2200mm.
Height of Pattern: 5, 10, 15, 20, 25, 30(mm).
Pattern pitch: 125, 200, 250, 330, 400, 500(mm)\
Note: Pattern can be designed according to the user’s requirement.
width: 400mm-2200mm;
thickness :6mm-30mm
length:20m-1000m;
rubber cover tensile strength: 8mpa -25mpa.
fabric tensile : Ep80-ep400.
Packages: plastic sheets or according to customer enquirments.
shipping: by containers , if customer need steel pallets, we can offer it.
Quality guarranty period:
1. general belts, guarranty period is 12months
2. heat resistant belt : 200c only 6months, up 250c, guarranty period is 3 months.
3. steel cords belts guarranty period is 36months.
4. we can offer technical references for using,
5. if products got not manue demaged , we will send engineer to fix or repoduce the products during our gurranty period.
We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
| Standards | Cover Rubber | Adhesion | ||||
| Tensile Strength | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| DIN 22102 | Mpa | % | mm3 | N/mm (≤ 1.5mm) |
N/mm (> 1.5mm) |
N/mm |
| DIN 22102-Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| DIN 22102-W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| DIN 22102-Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| DIN 22102-X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| AS 1332 | Mpa | % | mm3 | N/mm (≤ 1.9mm) |
N/mm (> 1.9mm) |
N/mm |
| AS 1332-N17 | 17 | 400 | 200 | 4 | 4.8 | 6 |
| AS 1332-M24 | 24 | 450 | 125 | 4 | 4.8 | 6 |
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| RMA | Mpa | % | mm3 | N/mm (≤ 1.6mm) |
N/mm (> 1.6mm) |
N/mm |
| RMA-I | 17 | 400 | 3 | 4.4 | 4 | |
| RMA-II | 14 | 400 | 3 | 4.4 | 4 | |
