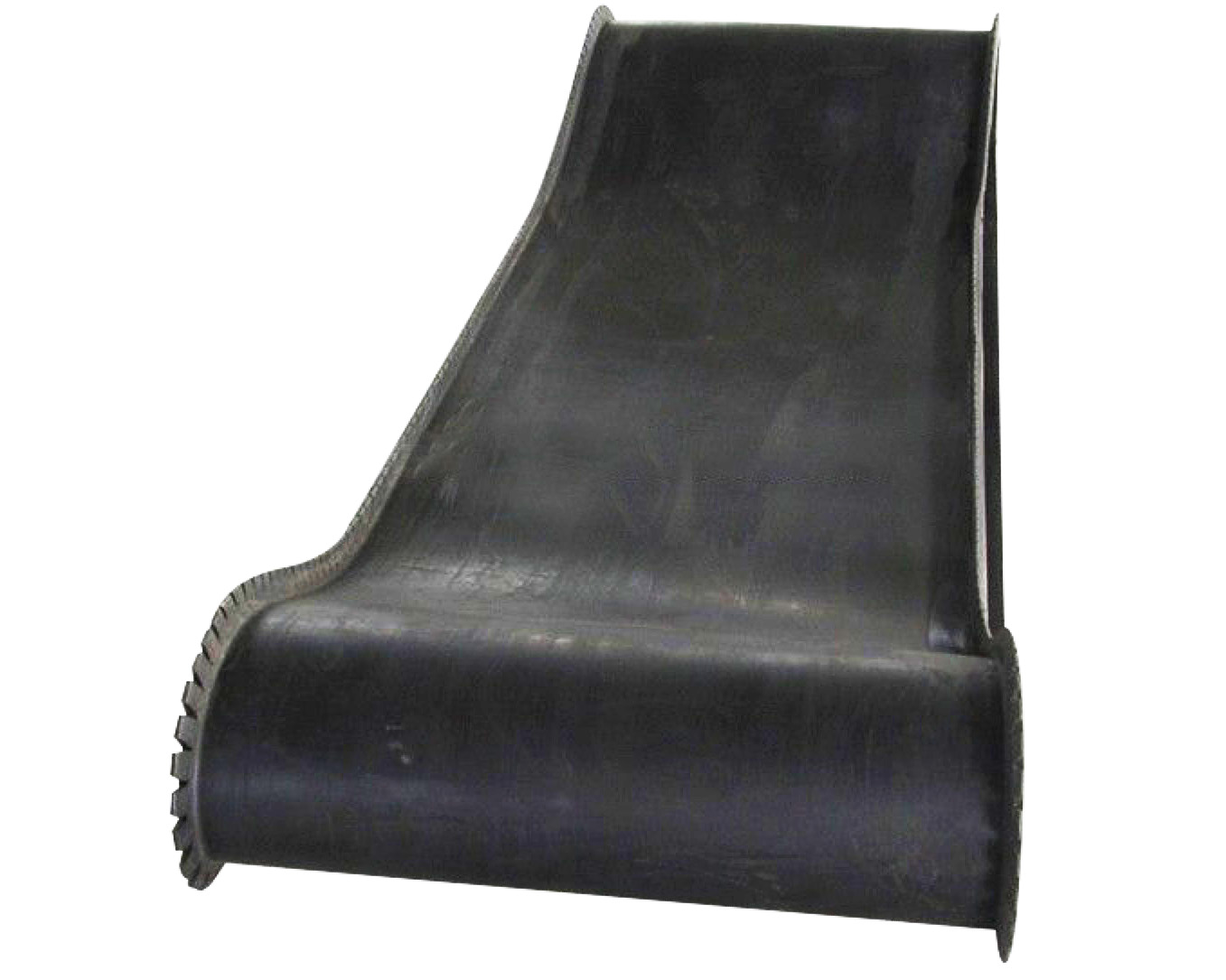

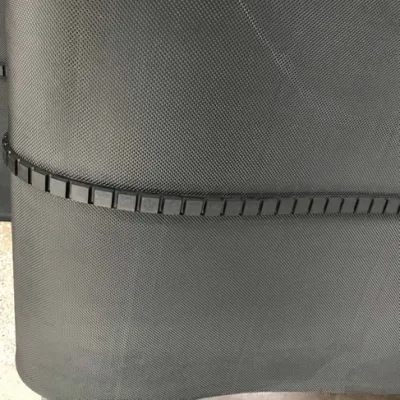

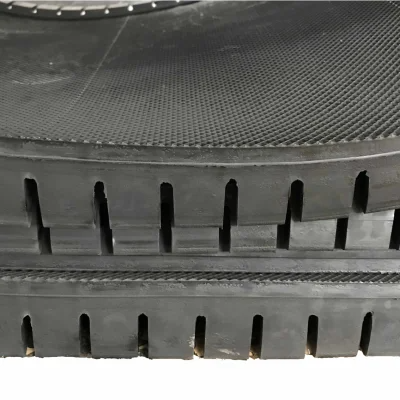

Coal Belt feeder conveyor endless

Coal Belt feeder conveyor endless

BOTTOM DEC OVERFLOW, MIDDLE DECK OVERFLOW

Usage: High-angle belt conveyor can be transported at a high angle or even vertical transportation, with a large amount of transportation, small footprint, easy maintenance, which can be widely used in coal, food, building materials, construction, metallurgy, electric power, chemical and light industry.

The Coal Belt feeder conveyor endless has some advantage including large capacity, long distance, less maintain and running cost, it’s suitable for high-angle(Max incline 35°) bulk continuous conveying with special profile idlers, the idler angle is about 60° which can avoid conveying material flow backwards, ensuring belt conveyor meets the requirement. The Ripple flange belt conveyor is suitable for big angle(Max, incline is 90°) and less capacity conveying condition.

Working Principle:

Large angle belt conveyor is mainly composed of two end rollers and tightly closed on the conveyor belt. Driving the belt rotation of the drum known as the drive roller (drive roller); the other is only to change the direction of the conveyor belt called the drum to change. Driving roller driven by the motor through the reducer, the conveyor belt and drive belt to rely on the friction between the drag. Driving roller is generally installed in the discharge end, in order to increase traction, is conducive to drag. The material is fed from the feeding end, falls on the rotating conveyor belt, and relies on the conveyor belt friction to drive the unloading end of the conveying bag.

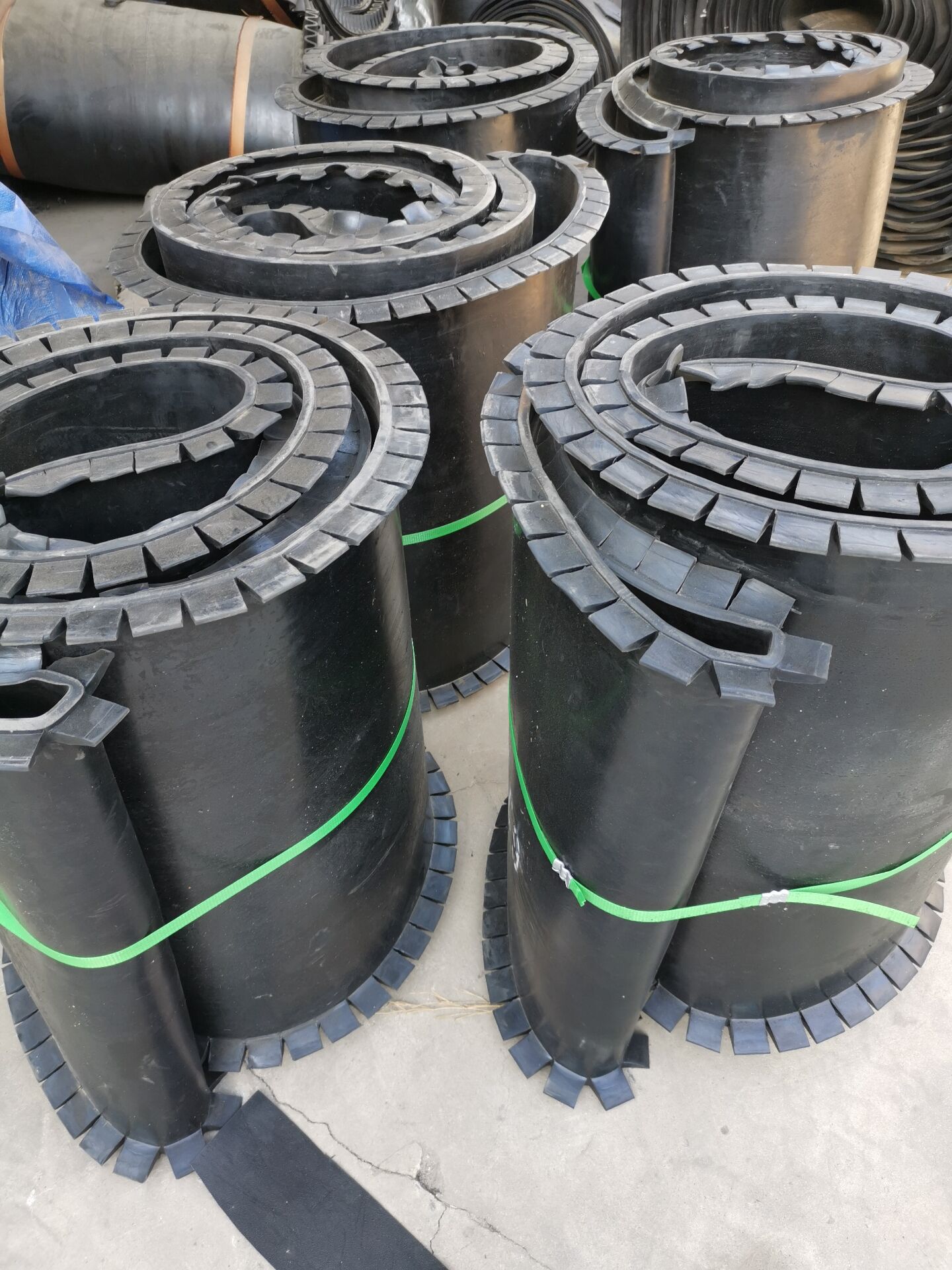

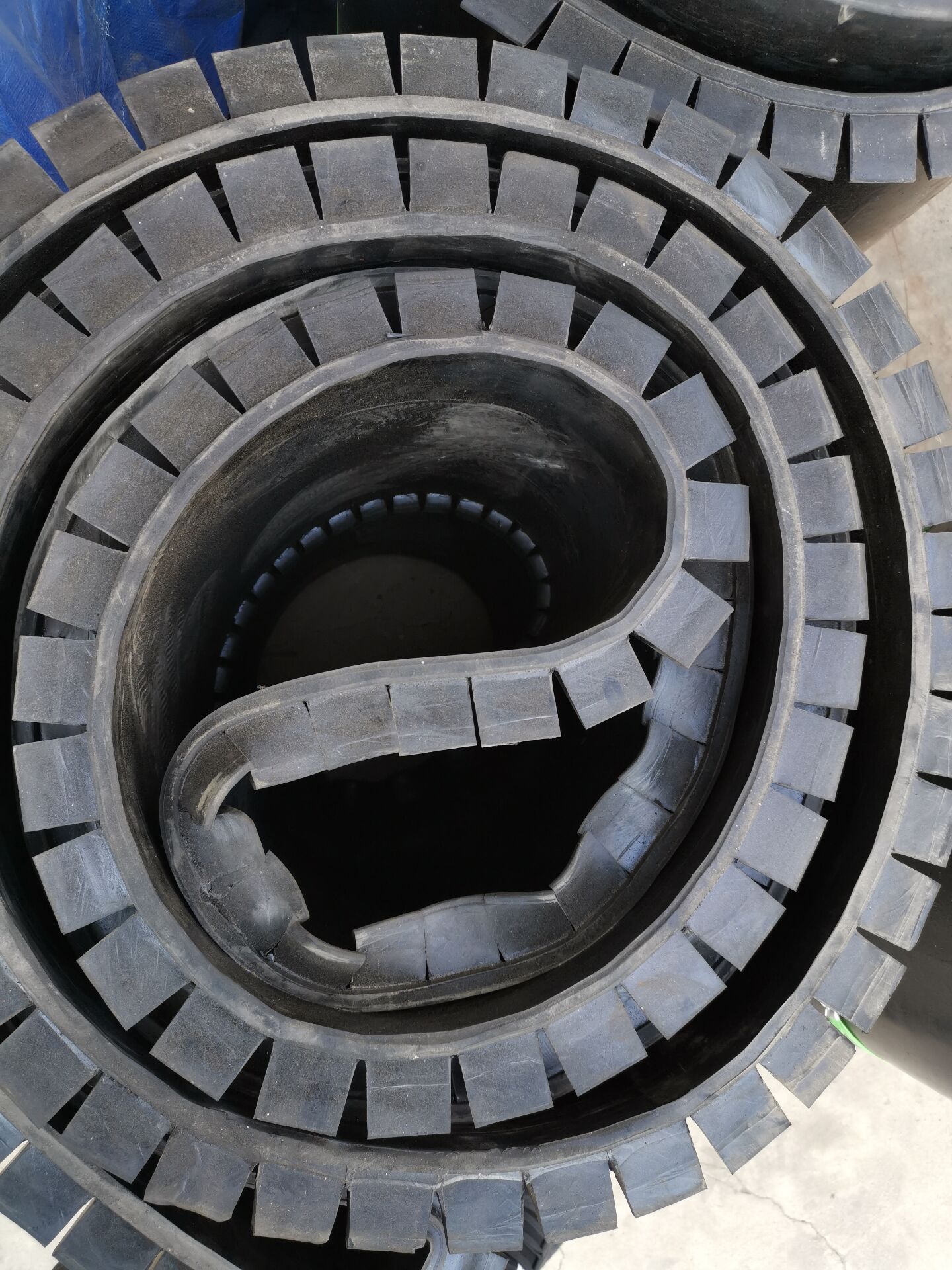

Features and advantage of High-angle ripple flange conveyor:

1. Designed, manufactured, installed and commissioned total conveyor system.

2. Provided significant cost and energy savings by feeding blended material directly to load out silos, by passing their blended silos and associated conveyors.
