Coal feeder sidewall conveyor belting

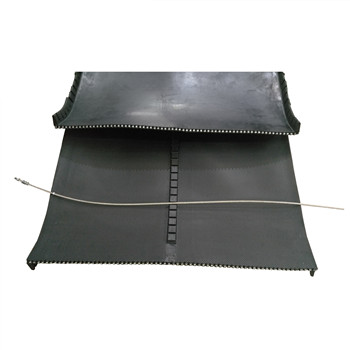

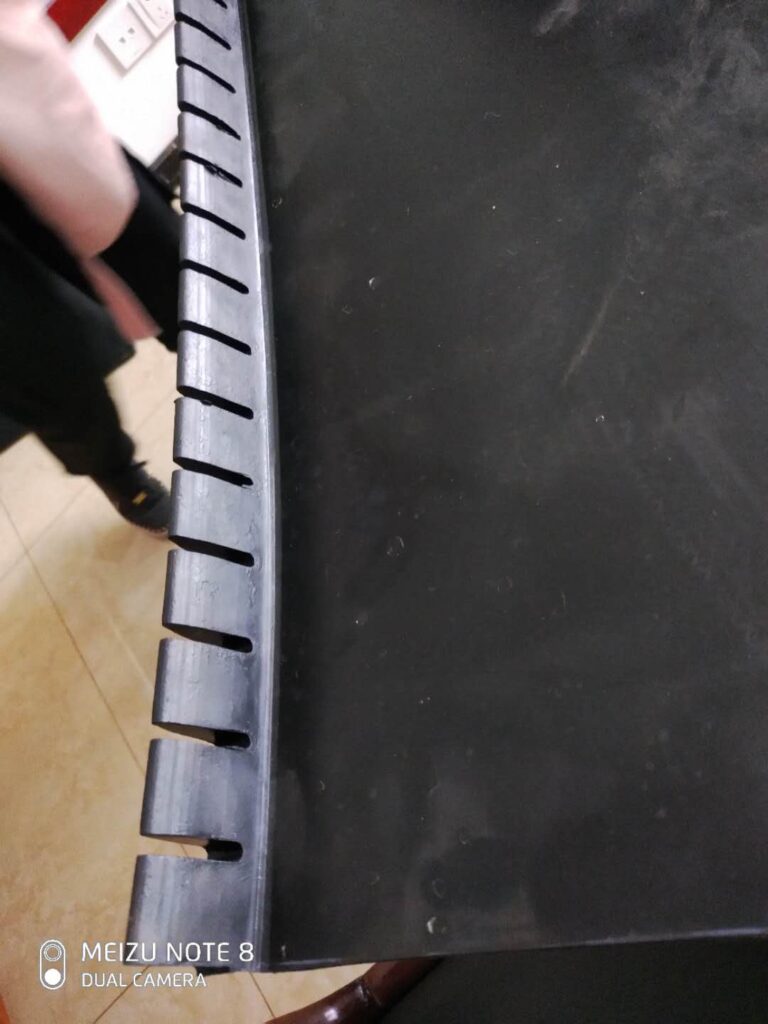

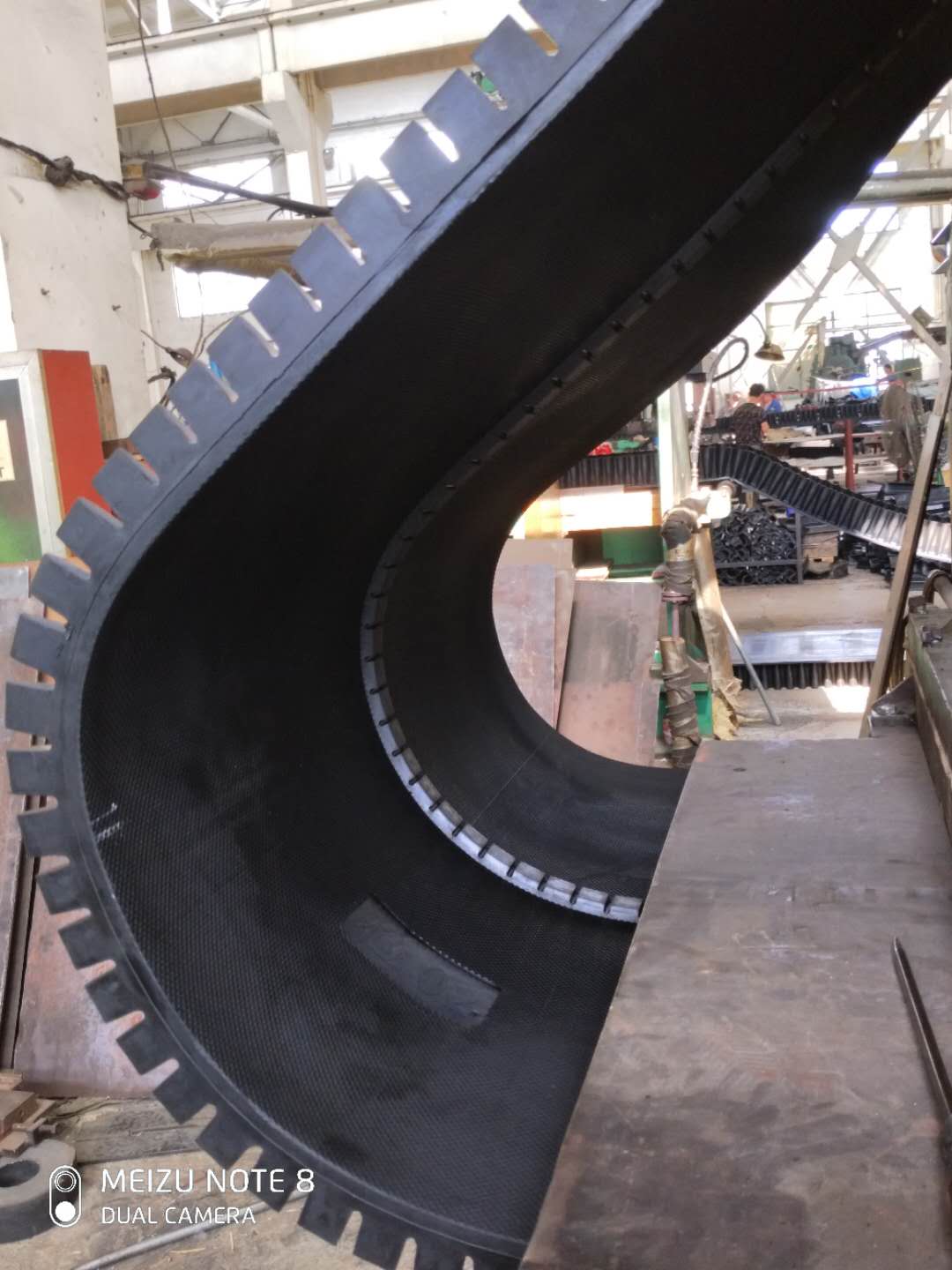

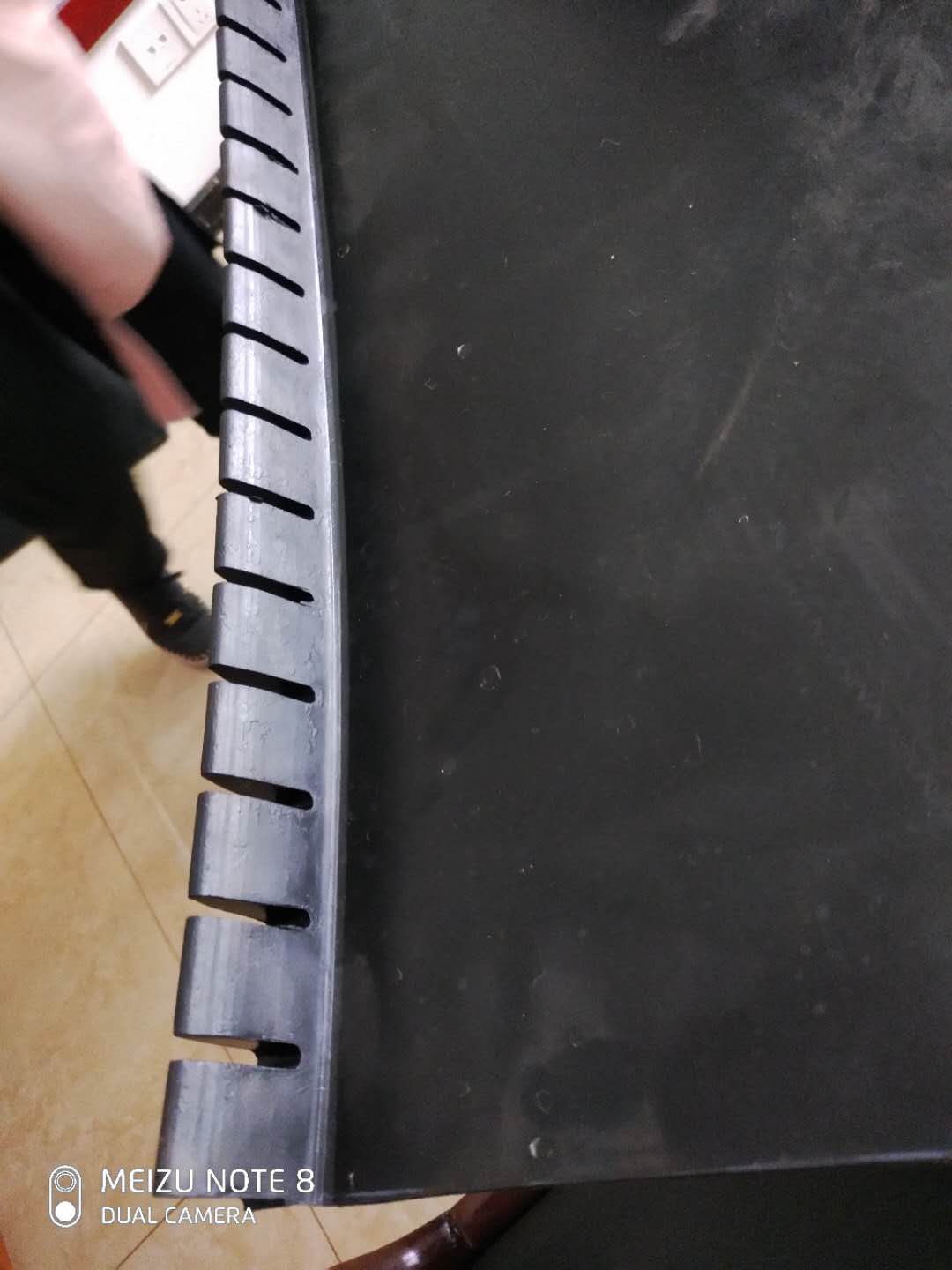

Coal Feeder Conveyor Belting an unused length of flanged rubber conveyor belt, it is primarily used as a conveyor belt for gravimetric and volumetric weigh feeders, but you can use it for moving any material you need. It features a notched edge for keeping materials on the belt during transport.
- width: 500mm 838mm. 1000mm
- thickness: 8mm/10mm
- Cover grade: 17mpa/24mpa
Coal Feeder Conveyor Belting width: 400mm-2200mm;
- thickness :6mm-30mm
- length:20m-1000m;
- rubber cover tensile strength: 8mpa -25mpa.
- fabric tensile : Ep80-ep400.
We deal in Coal Feeder Conveyor Belt (also called Gravimetric Feeder Belts). We have a long list of satisfied clients who are using our Coal Feeder Conveyor Belt. Our Coal Feeder Conveyor Belt is a popular choice in power stations and cogeneration plants etc. The best feature of our Coal Feeder Conveyor Belt is its Flanges and V·guide which are integrally moulded on the rubber covers for giving the base belt maximum strength. In addition to this, the v-guide tracking strip fits in to the groove of the pulley, hence reducing tracking problems.
Special Features Of Our Coal Feeder Conveyor Belt
V guide strip reduces tracking problems
These belts are designed to keep belts running consistently in proper alignment
Flanged pattern prevents coal powder or lamps from spilling over edges during transportation
Rubber covering give the base belt maximum strength

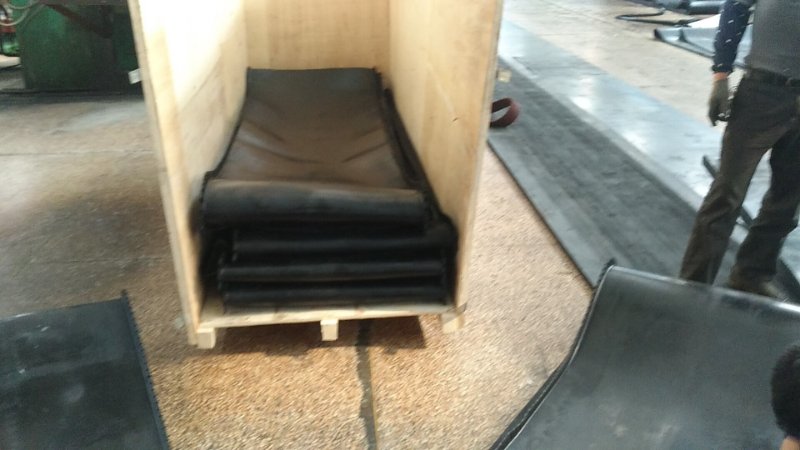

Packages: plastic sheets or according to customer enquirments.
Shipping: by containers , if customer need steel pallets, we can offer it.
Quality guarranty period:
1. general belts, guarranty period is 12months
2. heat resistant belt : 180c only 6months, up 200c, guarranty period is 3 months.
3. steel cords belts guarranty period is 36months.
4. we can offer technical references for using,
5. if products got not manue demaged , we will send engineer to fix or repoduce the products during our gurranty period.
