Conveyor Belt Used in Blast Furnace is generally composed of three main components:
1. Cover Rubber (Top & Bottom Covers)

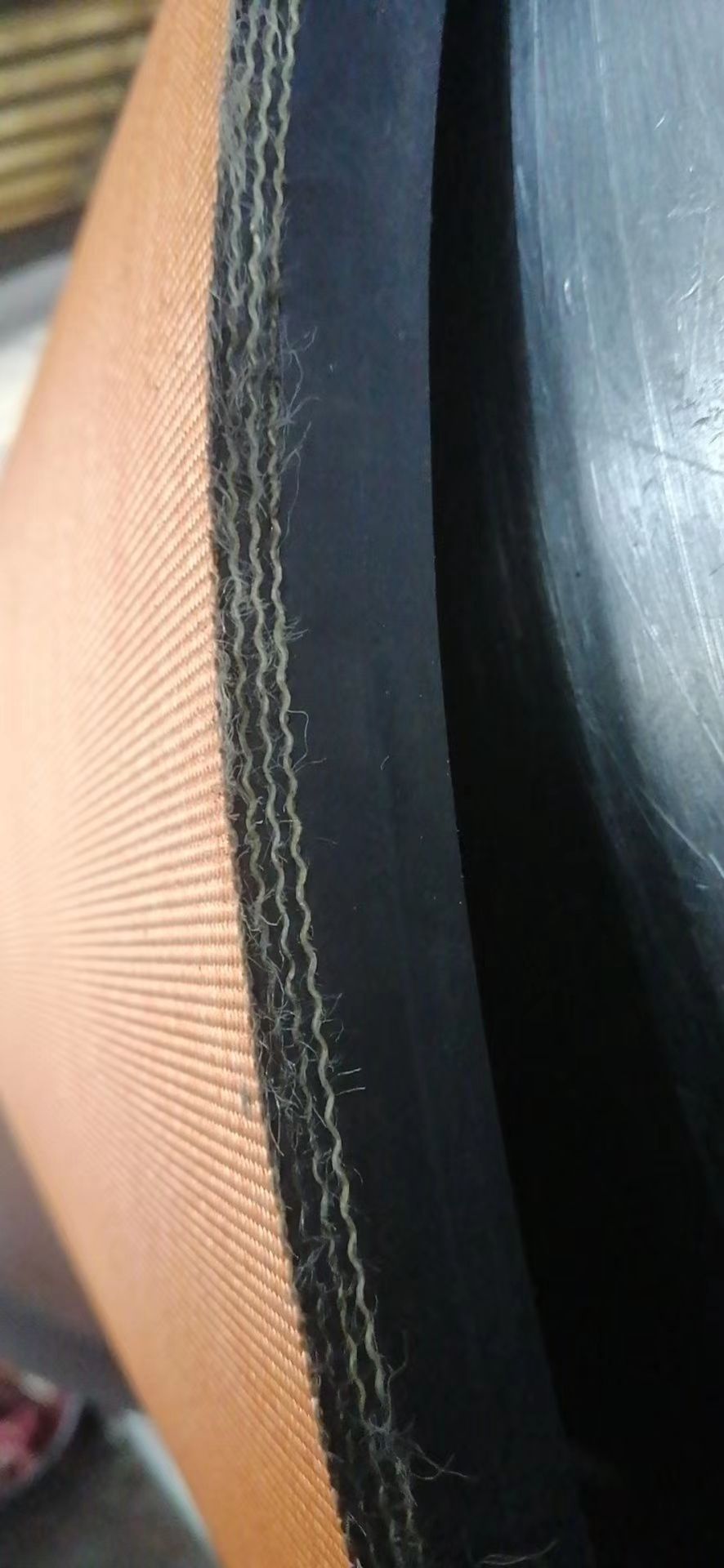

2. Carcass
3. Rubber Skim Coat

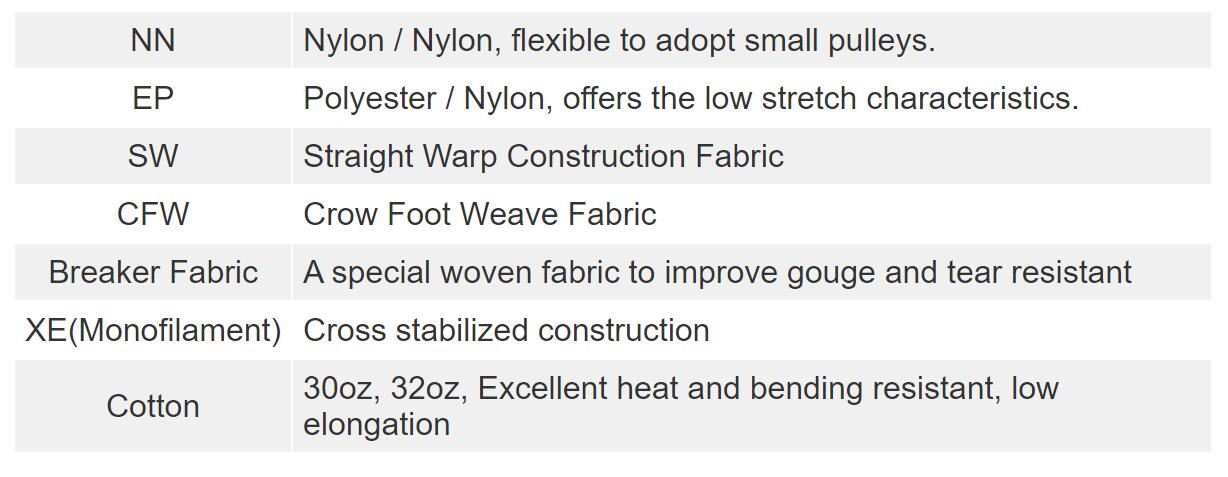

4. The additional reinforce Breaker fabric or Monofilament could be used for extra protection.
Conveyor Belt Used in Blast Furnace
Heat Resistant Conveyor Belts
are meant to exhibit high resistance towards hot materials such as Pellets, Sinter, Cement, Powder, Chemicals and Fertilizers. Heat resistant belt aren’t just heat resistant but also have a much adequate service life as their cover rubbers ensure to prevent any serious damage which high temperatures can do particularly to the conveyor belt carcass. The cover rubber of these belts are so designed to provide satisfactory tensile strength and good abrasion resistance property to ensure longer life of the belt.
Abrasion Resistant

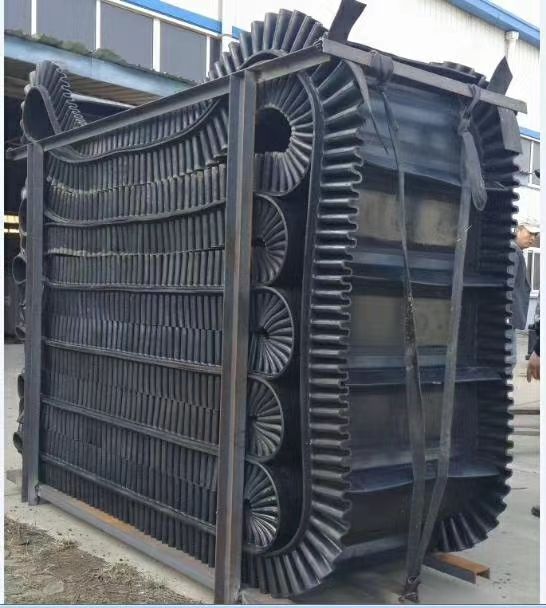

Tilting Sidewall Cleated Belt Lifter Conveyor for Blast Furnace are highly resistant to abrasion & hot materials
Excellent Cut Resistance
The heat resistant belts are highly resistant to cuts
In the HR- As per IS T1 & DIN T category, the conveyor belts are made out of special rubber compound that contains high quality SBR. They help in the transportation of material such as hot coke, clinkers & hot lime stone. Maximum temperature on the belt surface is 100 ⁰C & Maximum temperature of material handled is 125 ⁰C.
Extreme Heat Resistance
Conveyor Belt Used in Blast Furnace in the HR-T2 – As per IS T2 & DIN T category, special synthetic rubber compound can endure higher temperature for transportation of materials such as hot cement, sintered coke, or soda ash. The Maximum temperature on the belt surface is 125 ⁰C & Maximum temperature of material handled is 150 ⁰C.
