MOR oil resistant conveyor belt advantages

Scrap recycling industry use oil resistant conveyor belts.
As a rule, oils have a very destructive impact on rubber,and in order to protect rubber components in the conveyor belt from swelling, types of rubber that are resistant to oil and grease should be applied.

Since not all oil types are equally aggressive, the engineers have developed three different types of conveyor belts to meet all the requirements

Type 1 – oil and grease resistant
Type 2 – medium oil and grease resistant
Type 3– completely oil and grease resistant

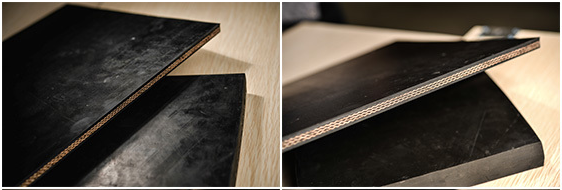

Basic construction of conveyor belt

• two- or multi-ply EP carcass (warp polyester + weft polyamide)
• a special intermediate skimmed layer
• special oil and grease resistant types of rubber cover

Benifits of oil resistant conveyor belt

– resistant to oil and grease, as well as certain other chemical impacts from the environment

– limited and minimised swelling

– high adhesion strength

– low cost endless splicing by hot and cold curing, or mechanical clamping

– low elongation at reference load

– manufacture according to HG/T3714-2003

– improved weathering and rotting resistance

– moulded rubber edge

Kindly note:

We can also supply our oil resistant belts in combination with other properties such as : OR-HR, OR-FR and HYG-OR

Oil resistant conveyor belt application

Oil resistant belts are specially designed to handle greasy material or products containing oil, animal or vegetable fats, Mineral oils, solvents, weak acids etc. at temperatures 15oC to 800C
