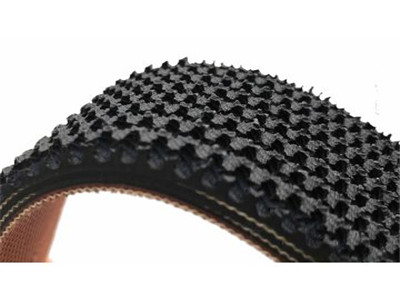

Rough Top Conveyor belting
Color: Black
We manufacture and supply all the range of Rough Top Conveyor Belting, which is designed with a Rough Top / Pimpled
or Ribbed / Cleated carrying surface to prevent any kind of slippage. Avail Rough Top Rubber Conveyor Belts in varied specifications and at affordable prices.
Salient Features
- Low friction co-efficient with bare back bottom
- High strength & flexibility
- Anti-slippage
- Superior performance
- Packaged materials on gradients of more than 20o
Product introduction:
Rough top conveyor belting is used to increase the friction coefficient. It is usually used for fabric traction in different processes in the textile industry. For example, it is used in various jets, water jets, rapiers, grippers and other looms and fabric inspection machines. The guide roller and paper making equipment of the finishing equipment.
MONSTER BELT rough grain surface belts are generally 100M in length, width 100mm, 50mm, 40mm, etc. Other widths can be customized according to requirements, and the maximum width can be 1000mm. When applied, the spiral is wrapped around the roller, adhered with an adhesive, and the head is fixed with a clip or a screw.
MONSTER brand rough grain surface has various surface patterns, which can be used for the traction of all kinds of fabrics. It has the characteristics of oil resistance, abrasion resistance, high temperature resistance, high elasticity, no deformation, no elongation, no peeling, and strong durability.

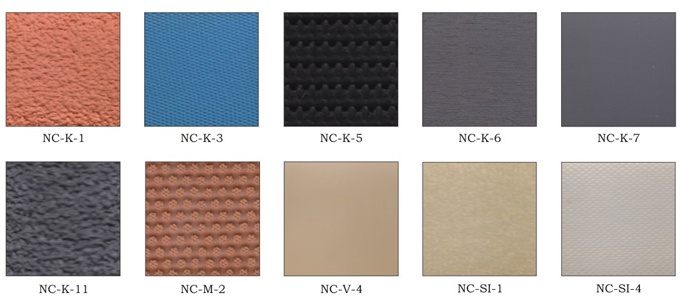

Technical Data sheet
Technical Parameters:
| Technical Parameters | ||||||||||||||
| model | Thickness (mm) |
Temperature resistance (°C) |
Effective pulling force (N/mm) |
surface | ||||||||||
| material | Pattern | colour | pattern | |||||||||||
| Nc-K-1 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Orange peel | White | Blue | gray | black | Red |     |
|||
| Nc-K-2 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Grain surface | White | Blue | gray | black | Red | ||||
| Nc-K-3 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Cloth pattern | White | Blue | gray | black | Red |  |
|||
| Nc-K-5 | 3.5～4.5 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Deep pattern |
|
 |
|||||||
| Nc-K-6 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Pulling hair | Dark gray |  |
|||||||
| Nc-K-7 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Matt | Dark gray |  |
|||||||
| Nc-K-11 | 1.8 to 2.0 | -10～+100 | 35 | Synthetic rubber/polyester fabric | Rough surface | Dark gray |  |
|||||||
| Nc-M-1 | 1.8 to 2.0 | -10～+80 | 35 | Natural rubber/polyester fabric | Orange peel | White | Blue | gray | black | Red |  |
|||
| Nc-M-2 | 1.8 to 2.0 | -10～+80 | 35 | Natural rubber/polyester fabric | Grain surface | White | Blue | gray | black | Red | ||||
| Nc-V-1 | 1.8 to 2.0 | -10～+70 | 35 | PVC/polyester fabric | Orange peel |
|
||||||||
| Nc-V-4 | 1.8 to 2.0 | -10～+70 | 35 | PVC/polyester fabric | Bright type |
|
 |
|||||||
| Nc-Si-1 | 1.8 to 2.0 | -60～+280 | 6 | Silicone/polyester fabric or glass fabric | Orange peel |
|
||||||||
| Nc-Si-4 | 1.8 to 2.0 | -60～+280 | 6 | Silicone/polyester fabric or glass fabric | Bright type |
|
 |
|||||||
