Rubber Lifting belt conveyor with steel wire reinforced layer

This Rubber Lifting belt conveyor is ideal for bucket elevators or conveyors handling oil-treated grain, crushed soybeans and other material where animal or vegetable fats are a deteriorating factor and where combustion properties are a concern. The belt construction meets and exceeds safety standards established by OSHA for static conductivity and MSHA for flame resistant properties. All Stocked Belts are China made.

Product Construction: Plied Polyester/Nylon fabric w/ NBR formulated Grain Handling Compound.
Special Standards: Fire resistant to MSHA 2G/ASTM D378. Static Resistivity to ISO 284.
Top / Bottom Cover: 1/16” Smooth Rubber, Black

Product Data sheet

Belt strength （st-No.）	Cord diam d （mm）	Cord structure	Pitch P （mm）	Standard working tension（ N/mm）	Standard rubber cover thicknes t1t2（mm）	Belt weight （Kg/㎡）	Min.Pulley diam. （mm）	Cord strength KN/piece
ST-630	3	6*7+1WS	10	90	5*5	20	800	6.93
ST-800	3.5	6*7+1WS	10	110	5*5	20.6	800	8.8
ST-1000	4	6*7+1WS	12	140	6*6	24.7	800	13.2
ST-1250	4.5	6*7+1WS	12	175	6*6	25.4	800	16.5
ST-1600	5	6*19+1WS	12	225	6*6	26	1000	21.12
ST-2000	6	6*19+1WS	12	285	8*6	30	1000	26.4
ST-2500	7.5	6*19W+1WS	15	355	8*6	32.2	1250	41.25
ST-3150	8.1	6*19W+1WS	15	450	8*8	35.7	1400	51.98
ST-4000	9.1	6*19W+1WS	17	570	8*8	37.8	1600	74.8
ST-4500	9.7	6*19W+1WS	16	645	8*8	38.7	1800	79.2
ST-5000	10.9	6*19W+1WS	17	715	8.5*8.5	41.9	1800	93.5
ST-5400	11.3	6*19W+1WS	17	760	9*9	43.9	2000	101
ST-6300	12.3	6*19W+1WS	18	900	10*10	48.3	2000	124.74

Belt bucket elevator, steel-reinforced belt ,Rubber Lifting belt conveyor ，

Bucket elevator belts

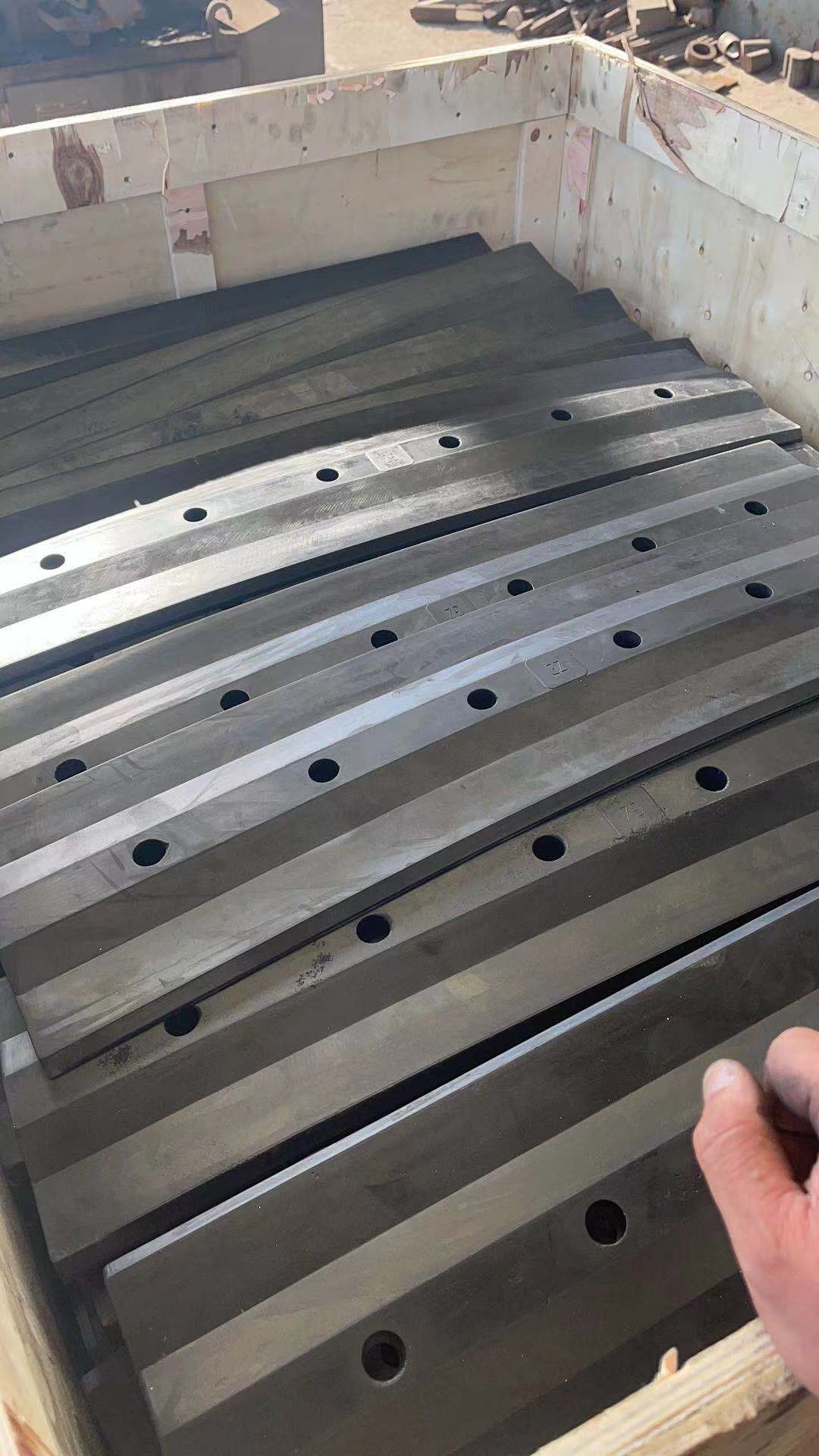

Profile rubber strip
Segment plate

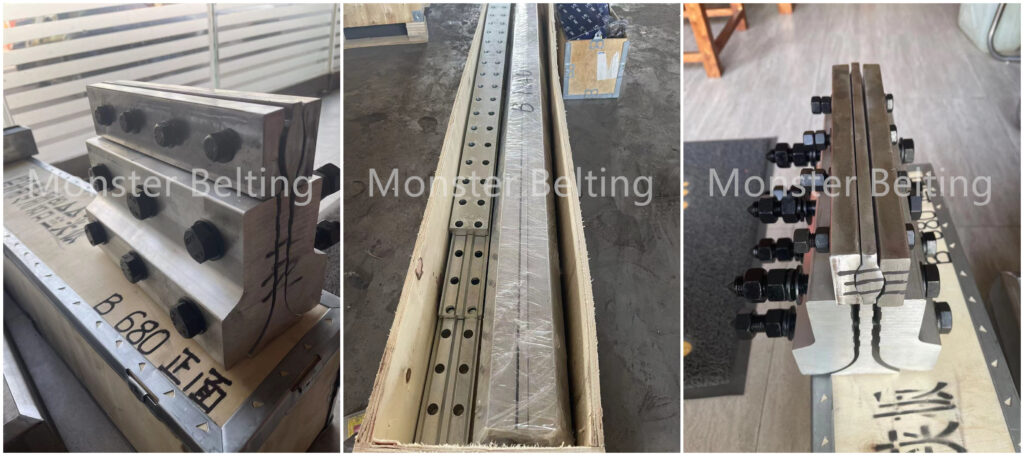

clamping connection

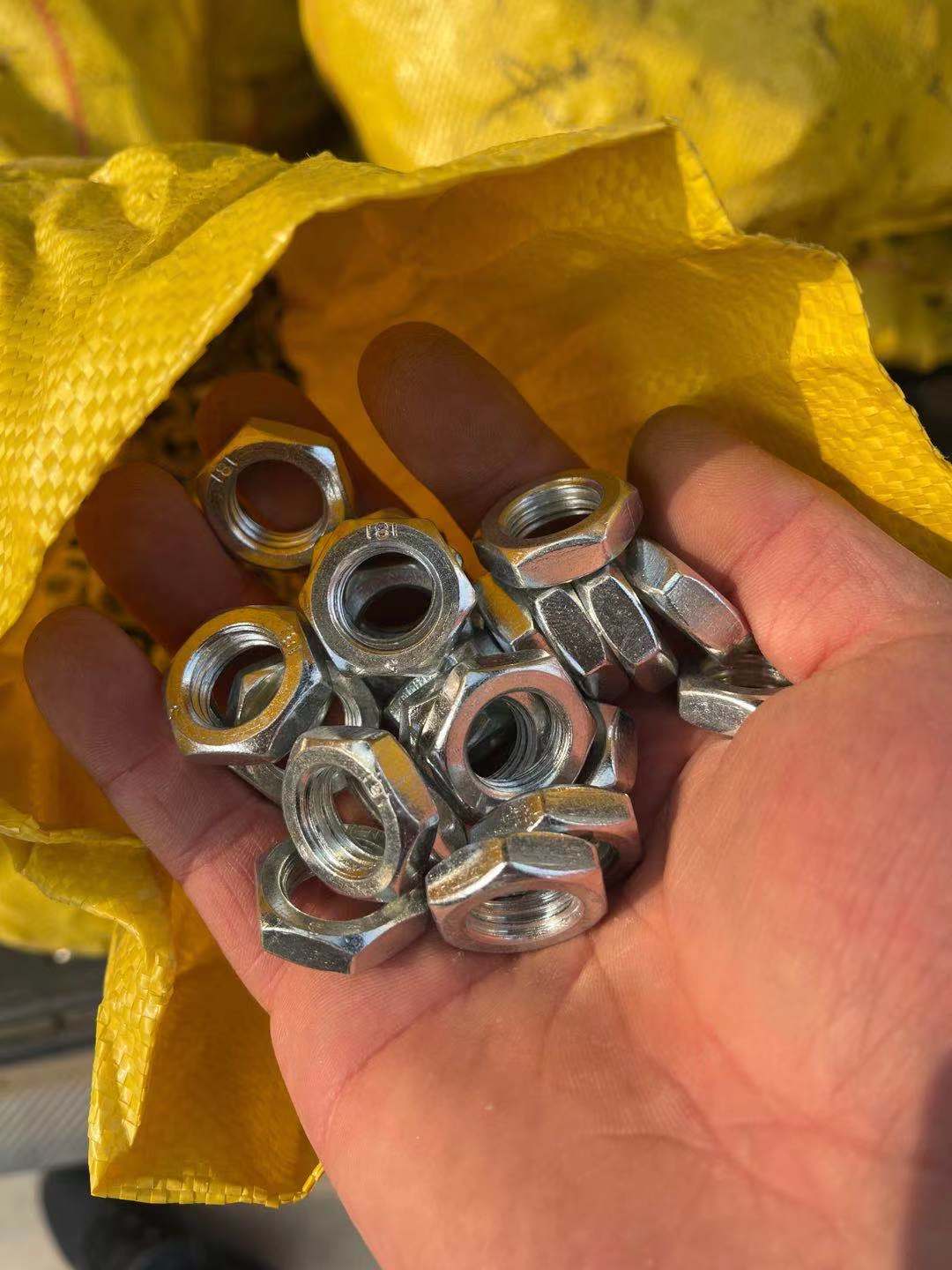

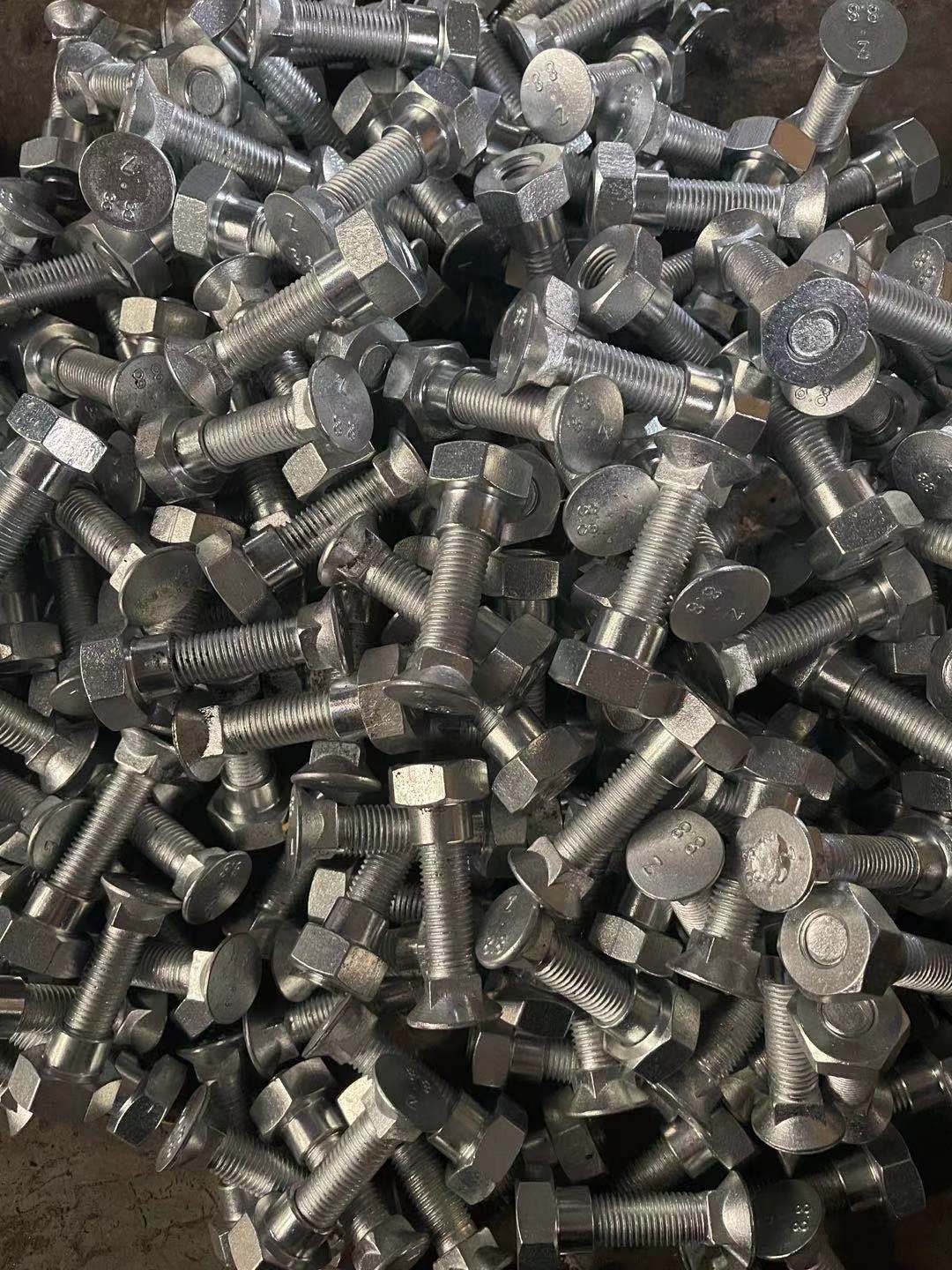

bolts/Plate screw
