TEXTILE FABRIC CONVEYOR BELTS (EP/NN/CC)
Textile Fabric Conveyor Belts Features:
1. The Nylon canvas is woven by nylon fabric both in warp and in weft.
2. Its outstanding merits are its high abrasion resistance, high tensile strength and good fatigue resistance.
3. Conveyor belt with Nylon canvas inside has the characteristics of thin belt body,high tensile flexibility and long working life time.
4. Nylon conveyor belts are suitable for medium, long distance and heavy-load transportation of materials.
Application:

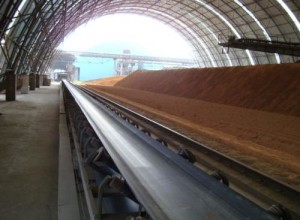

Textile Fabric Conveyor Belts. It is widely used in mining, metallurgical industry, architectural industry,and ports etc. Such as: coal, coke, dinas, cement, powder etc.
Specifications:
|
Fabric specs |
Ply thickness |
Strength(N/mm) |
Cover thickness |
Width |
Length |
||||
|
|
Mm/ply |
2ply |
3ply |
4ply |
5ply |
upper |
lower |
mm |
m |
| NN100 | 0.8 | 200 | 300 | 400 | 500 |
1.5-12 |
0-4.5 |
400-2600 |
50-500 |
|
NN150 |
1 |
300 |
450 |
600 |
750 |
||||
|
NN200 |
1.2 |
400 |
600 |
800 |
1000 |
500-2600 |
|||
|
NN250 |
1.35 |
500 |
750 |
1000 |
1250 |
||||
|
NN300 |
1.45 |
600 |
900 |
1200 |
1500 |
||||
|
NN350 |
1.6 |
|
1050 |
1400 |
1750 |
800-2600 |
|||
|
NN400 |
1.75 |
|
|
1600 |
2000 |
1000-2600 |
|||
|
NN500 |
1.9 |
|
|
2000 |
2500 |
||||
|
NN630 |
2.1 |
|
|
2400 |
3000 |
||||
| Style | Fabric Type | Quality of single fabric, kg/m2 | Strength of singleFabric, N/mm | Fabric Piles | Range of width
mm |
Length m/volume |
|
EP Belt |
EP100 |
1.175 |
100 |
2-8 |
500-2400 |
200 |
| EP125 |
1.225 |
125 |
||||
| EP160 |
1.307 |
160 |
||||
| EP200 |
1.401 |
200 |
||||
| EP250 |
1.664 |
250 |
||||
| EP300 |
1.934 |
300 |
||||
| EP350 |
2.587 |
350 |
||||
| EP400 |
2.737 |
400 |
||||
| EP500 |
3.055 |
500 |
||||
| EP600 |
3.433 |
600 |
