White nitrile rubber conveyor belt for Sugar Granule |WHITE BELT FDA GRADE
We have dealed with White Rubber Food Standard Conveyor Belt for Sugar Plant. Our white rubber conveyor belts are manufactured on FDA standards. Our max width of white belts can be reach up to 4000mm,which doesn’t have bad smell.

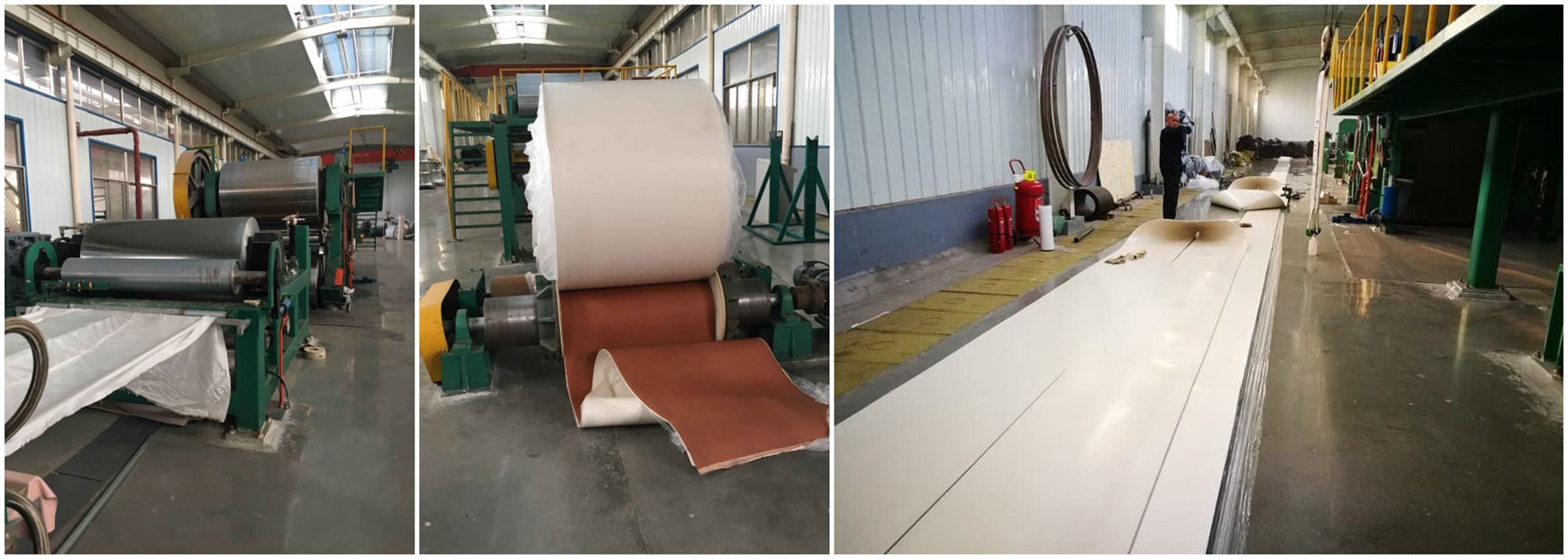

We have 3 workshops, 12 products lines. We have 400workers,50 professional and skilled experts are included. We are looking forward to cooperate with customers all over the world.
White rubber conveyor belting is made of Natural latex and rubber. We use very less Recycled rubber in its manufacturing.It has the good advantages as :snow white and Smooth & flat surface; less smell, and high abrasion resistant.
INSTALLATION :
- No elongation after first installation
- Simplified installation = One final tensioning
- Enhanced security = No slip
- Maintenance free
WHITE BELT FDA GRADE COATING:
- Very Low Elongation 0,8%
- NBR white rubber
- Antistatic
- Flame resistant ISO 340
- Vegetable and animal fat resistant
- 3+1 : 3 mm pulley side for a better
adherence and a longer lifetime - Antiabrasive : ISO 4649< 200 mm3
CARCASS TEXTILE:
- Chain polyester, Weft polyamide
WORKING TEMPERATURE:
- -25°C to +80°C
| CHARACTERISTICS | ||||||
| RUPTURE STRENGTH (N/mm) | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Number of Plies | 1 | 1 | 1 | 2 | 2 | 2 |
| Thicknesses * (mm) + Coating | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
| Total (mm) | 5,9 | 6,1 | 6,9 | 10,0 | 10,2 | 11,9 |
| Average weight (kg) | 7,9 | 8,2 | 9,1 | 11,1 | 11,3 | 13,1 |
| Minimum Roll Diameter (mm) | 200 | 250 | 315 | 630 | 630 | 800 |
| Covered Pulley | ||||||
| Minimum Roll Diameter (mm) | 250 | 315 | 400 | 800 | 800 | 1000 |
| Uncovered Pulley | ||||||
| Width maximum advised (mm) | 650 | 1000 | 1250 | 1600 | 1800 | 1800 |
| *Tolerances : Coating Thicknesses +/- 0,2 mm — Total Thickness +/- 1mm — Width +/- 1% — +/- 5 mm minimum | ||||||
| Elongation at Break | 350%–450% |
| Abrasion | 350mm3–60mm3 |
| Tensile Strength | 8mpa-15mpa |
| Width | 400mm-2600mm |
| Thickness | As customer’s requirements |
| Fabric ply | As customer’s requirements |
Packing and Shipping
1.Free for samples, Door-to-Door.
2. By Air or by Sea for batch goods, Airport/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: In general,7-10days or based on customer’s quantity.
We do rubber belting for more than 20 years with good experiences. Our products are mainly used in food transportation, which Harsh requirements for the transportation environment.
