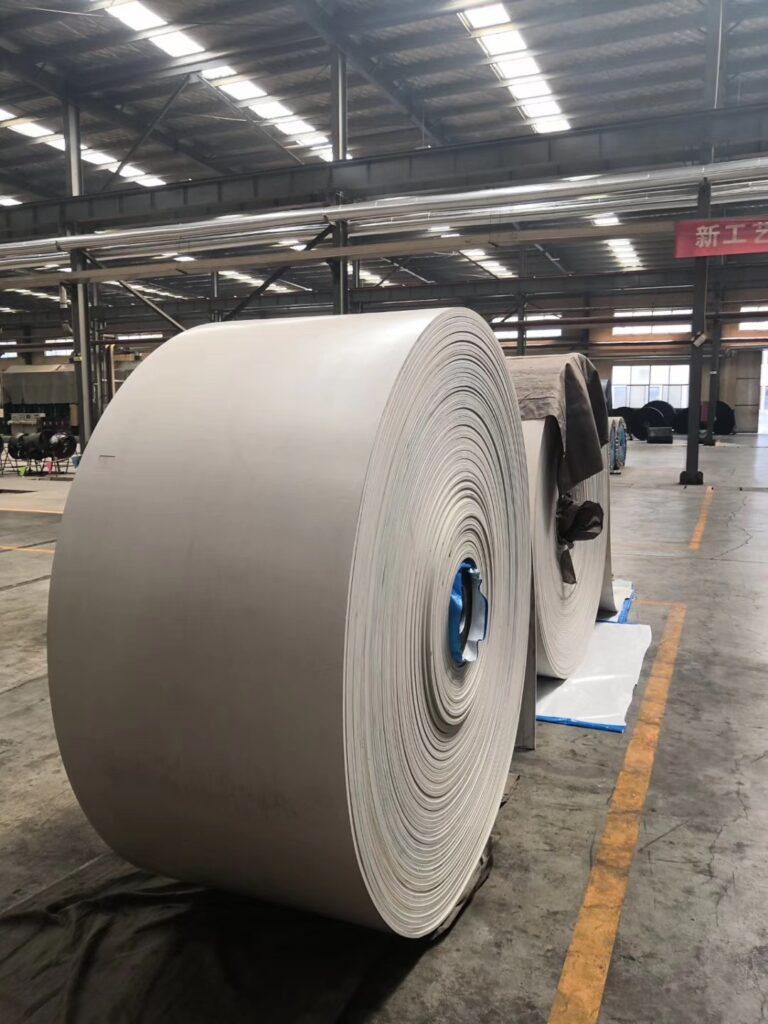

White food grade conveyor belt

Food Grade Rubber Conveyor Belt (1) — Food Grade Rubber Conveyor Belt

Approved by the Food Administration (FDA)

Used in the food industry, food processing and food packaging.

White food grade conveyor belt is suitable for handling of food materials that need to be moved directly on belt surface. We can supply the right belt with the right production like mold edge, cut edge, chevron, etc.

Available in many colors including white color, red color, green color and blue color.

Product Description
Technical Support

White food grade conveyor belt with high abrasive

FAD for food grade Belt, the food conveyor belt is made of non-toxic materials, non-toxic, odorless, smooth surface, suitable for the transportation of food and food materials and other environment.

Now used in food industry basic PU conveyor belt. Made of PVC, polyethylene, poly bean loose, PP, tech ACETAL, PE, nylon, PA, etc., according to the specific food has a corresponding special conveyor belt, such as: the aquatic class conveyer belt requires that the grid can be water seepage, anti-corrosion, easy to clean.

Common application: Cook conveyor belt, bread food special conveyor belt, beer special conveyor belt, seafood aquaculture special conveyor belt

white rubber conveyor belt Specifications

Top cover		Bottom Cover		Characte	Temp.℃		FABRIC	Max.
Colour	Surface	Colour	Surface	ristics	Min	Max	Plies	Width
White	Smooth	Natural	Impregnated	Antistatic	-15	90	1	2000
White	Matt	Natural	Impregnated	Antistatic	-15	90	2	2000
Dark	Matt	Natural	Impregnated	Antistatic	-15	90	2	2000
Green	Smooth	Natural	Fabric	Antistatic	-15	90	2	2000
White	Smooth	Natural	Fabric	Antistatic	-15	90	2	2000
White	Smooth	Natural	Fabric	Knife Edge	-15	90	2	2000

[/vc_column_text]

White FDA Rubber conveyor belt

Our White FDA Rubber conveyor belt is a high wearing resistant, strong rubber belt that has been approved by the FDA for food and sugar applications. It has a long life and good overall performance in all applications where high wear and tear protection is a desired property.

Properties	Test Method	Values
Product	–	FDA Abrasion Resistant Sheeting
Compound	–	NR
Hardness (Shore A)	ASTM D2240	38° ± 5°
Density	ASTM D297	0.98 g/cm2
Tensile Strength	ASTM D412	240 kg/cm2
Elongation at Break	ASTM D412	810%
Tear Resistance	ASTM D624	40 kg/cm
Abrasion Resistance	ASTM D5963	80 mm3
Compression Set (22h, 70°C)	ASTM D395	15%
Working Temperature Range	–	-30°C to + 70°C
