Cleat Conveyor Belts
Specification and technical data of Cleat Conveyor Belts
|
Belt Type |
Fabric Type |
(N/mm)Single Fabric Strength(N/mm) |
Single Fabric Thickness(mm) |
Rubber Top Bottom Rubber |
Ply |
WidthRange(mm) |
Length(m)Roll |
|
|
Cotton Conveyor Belt |
CC–56 TC–70 |
56 70 |
1.10 1.0 |
2-8 1.5-8
|
0-4.5 0-4.5 |
2-12 |
300-2600 |
20-1000 |
|
Nylon Belt |
NN100 |
100 |
0.70 |
2-10 |
300-2600 |
20-1000 |
||
|
NN150 |
150 |
0.75 |
||||||
|
NN200 |
200 |
0.90 |
||||||
|
NN250 |
250 |
1.15 |
||||||
|
NN300 |
300 |
1.25 |
||||||
|
NN400 |
400 |
1.50 |
||||||
|
EPBelt |
EP100 |
100 |
0.75 |
|||||
|
EP150 |
150 |
0.85 |
2-8 |
300-2600 |
20-1000 |
|||
|
EP200 |
200 |
1.00 |
||||||
|
EP250 |
250 |
1.20 |
||||||
|
EP300 |
300 |
1.35 |
||||||
|
EP350 |
350 |
1.50 |
||||||
|
EP400 |
400 |
1.65 |
||||||
| Adhesion and elongation of the Cleat Conveyor Belts | |||||||||||
| Belt | Adhesive strdngth | Elongation | |||||||||
| carcass | Between plies | N/mm Between rubber and carcass | Longitudinal elongation at break | Longitudinal elongation at reference load | |||||||
| N/mm | Rubber thickness | Rubber thickness | %>= | %<= | |||||||
| <=1.5mm | >1.5mm | ||||||||||
| EPcanvas | >=4.50 | >=3.2 | >=3.5 | 10 | 4 | ||||||
| Cover properties of the belts: | |||||||||||
| Cover grade | Tensile strength | Elongation | Abrasion | Change Rate of tensile strength and elongation after aging | |||||||
| >= | >= | <= | |||||||||
| Mpa | kgf/cm2 | % | mm3 | % | |||||||
| Heavy(H) | 24 | 240 | 450 | 120 | -25~+25 | ||||||
| Medium(M) | 18 | 180 | 400 | 100 | -25~+25 | ||||||
| Light(L) | 15 | 150 | 350 | 200 | -30~+30 | ||||||
Cleat Conveyor Belts Characters:
Made of nylon fabric,SBR/NBR/EPDM rubber,high tensile strength, abrasion/oil/heat/wear resistant, pattern belts is available.
Production Standard :
DIN22102, RMA, AS1332, SABS1173/2000, IS1891,BS490,JISK6322

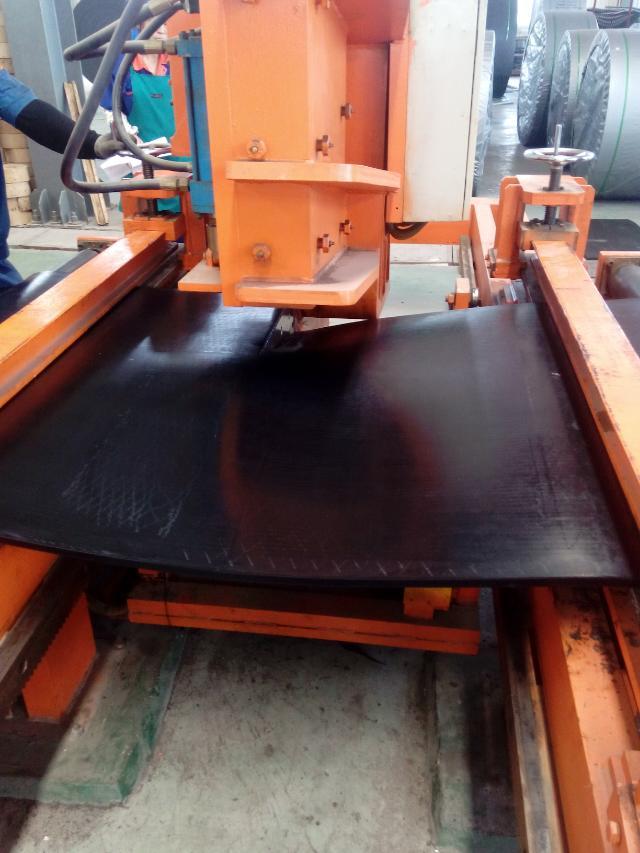

Quality Control :
We have one professional QC team checking the surface quality for every order.
We have our own testing lab double checking the inside quality
Types that customers often inquire about can be as reference.
- EP 250/2-3+1
- EP 300/3-4+2
- EP 400/3-4+2
- EP 500/4-5+2
- EP 630/4-6+2
- EP 800/4-6+2
Types:
CLEAT and PROFILES for Conveyor Belts , Fire-resistant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,High-grade type and etc.
Advantages:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.
Cover Rubber grade
| Standards | Cover Rubber | Adhesion | ||||
| Tensile StrengTD | Elongation at break | Abrasion | Cover to Ply | Cover to Ply | Ply to Ply | |
| SANS 1173 | Mpa | % | mm3 | N/mm | N/mm | |
| A | 18 | 400 | 70 | 5 | 7 | |
| C | 20 | 400 | 150 | 5 | 7 | |
| M | 25 | 450 | 120 | 5 | 7 | |
| N | 17 | 400 | 150 | 5 | 7 | |
