LOOP TYPE BELT WITH SKIRT

LOOP TYPE BELT WITH SKIRT WEBBING

side wall belt conveyor — side wall conveyor belt

Our Loop Type Belt with Skirt Webbing is a versatile and efficient solution for various conveying applications. This specialized conveyor belt is designed to provide optimal performance in transporting bulk materials while preventing spillage. Here are key features that make it a reliable choice: Innovative Loop Design: The loop configuration ensures a continuous and smooth flow of materials, minimizing disruptions in the conveying process.

Heavy Duty Large Angle Skirts Skirtboard Corrugated Sidewall Ep Polyester Rubber Conveyor Belt No Transfer Points

Product Use
Corrugated sidewall belt is widely used for bulk material lifting in harbor, metallurgy, tunneling, power plant, chemical industry, cement and metro, etc. The conveying capacity can be reached to 6000 m3 /h.

Conveyor Belting Specs

Cambelt product	MonWall™	MonFlex™	Trough	Straight cleat	Chevron cleat
Sidewall height	3″, 4.5″, 6″	3″, 4.5″, 6″	N/A	N/A	N/A
Cleat style	High cross cleats Buckets (opt)	High nubs	N/A	Low cross cleats	Low chevron cleats
Incline options	Up to 90°	Up to 45°	Up to 25°	Up to 25°	Up to 25°
Bulk material particle sizes	Powders to large lumps	Powders to moderate lumps	Powders to large lumps	Powders to moderate lumps	Powders to moderate lumps
Load capacity	High	Highest	Medium	Low	Low
Belt speed	Low	High	Medium	Medium	Medium
Advantages	•Works at any angle •High capacity •Prevents caking	•Moderate angles •Very high capacity •Prevents caking	•High capacity •Low cost	•Low cost •Shallow angles	•Low cost •Shallow angles

Skirt Webbing for Containment: Equipped with skirt webbing, this belt effectively contains materials, preventing spillage and maintaining a cleaner working environment.

Customizable Options: We understand that different applications have unique requirements. Our Loop Type Belt can be customized to meet specific width, length, and thickness specifications, providing a tailored solution for your conveying needs

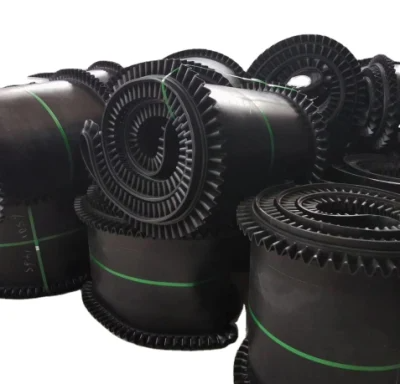

Coal-Feeder-Endless-Rubber-Conveyor-Belt-and-Sidewall-Skirt-Conveyor-Belt

Easy Installation and Maintenance: The design allows for easy installation, and routine maintenance is straightforward. This ensures minimal downtime and optimal operational efficiency.

Applications:

Mining and Quarrying: Ideal for transporting minerals, ores, and aggregates.
Agriculture: Suited for handling various agricultural products.
Material Handling: Efficiently moves bulk materials in manufacturing and processing plants.
Recycling: Used in conveying recyclable materials for processing.

Choose our Loop Type Belt with Skirt Webbing for a reliable and efficient solution that enhances your material handling processes. Whether you are working in mining, agriculture, manufacturing, or recycling, this conveyor belt is designed to meet your specific needs.
