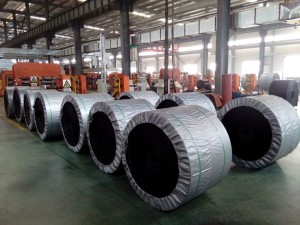

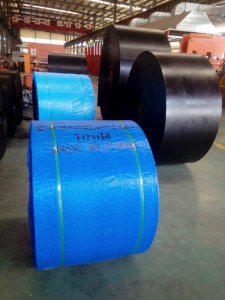

Industrial conveyor belt for coal mine EP100 4PLY 4.5+1.5 mm
Application:
1. Cement, Concrete Plants,cargo terminal and port
2. Quarry, Gravel, Sand
3. Coal, Mining
4. Steel Industry, Heating and Power Station, Garbage Incineration Plants,metallurgical
5. Recycling, Compost Industry,chemical industry
6. Mineral Processing Plants
7. Road Construction Machinery, building for conveying materials
8.primary crushers,secondary crushers,ship unloads, stack conveyors
Product parameter:
1.Tensile strength:≥15MPA
2.Elongation at break: ≥350%
3.Aging test: 70°C*168h
4.Changing rate of tensile strength: -25~+25%
5:Changing rate of elongation at break:-25~+25%
6:Abrasion :≤200mm³
Reference Specification
| Main technical Data | ||||||
| Total Tensile Strength(N/mm) | Fabric Type | Top Cover Thickness(mm) | Bottom Cover Thickness(mm) | |||
| 200-800 | EP100 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| 315-1250 | EP150 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| 400-1500 | EP200 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| 500-2000 | EP250 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| 500-2000 | EP300 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| 630-2500 | EP400 | 3.0 | 4.5 | 6.0 | 1.5 | 3.0 |
| Item | Unit | Rubber Grade | |||
| W | X | Y | Z | ||
| Tensile Strength≥ | N/mm² | 18 | 25 | 18 | 15 |
| Elongation at Break≥ | % | 400 | 450 | 400 | 350 |
| Abrasion≤ | mm³ | 90 | 120 | 150 | 250 |
.
| Adhesion between Layers(DIN22102) Unit: N/mm | |||
| Item | Adhesion between Fabrics(N/mm) | Adhesion between Rubber and Fabric(N/mm) | |
| Cover≤1.5mm | Cover>1.5mm | ||
| Max.≤ | 20 | 20 | 20 |
| Aaverage≥ | 5 | 3.5 | 4.5 |
| Min.≤ | 4 | 2.5 | 3.5 |
