Rubber Elevator Belt (Moderate with Oil Resistant), where efficiency and safety are paramount, the choice of conveyor belts plays a pivotal role. When it comes to handling materials in challenging conditions that involve oil exposure and fire risk, our Oil-Resistant Flame Retardant Conveyor Belt stands out as the ultimate solution. In this article, we explore the remarkable features and technical specifications that make this conveyor belt an indispensable asset across various industries.

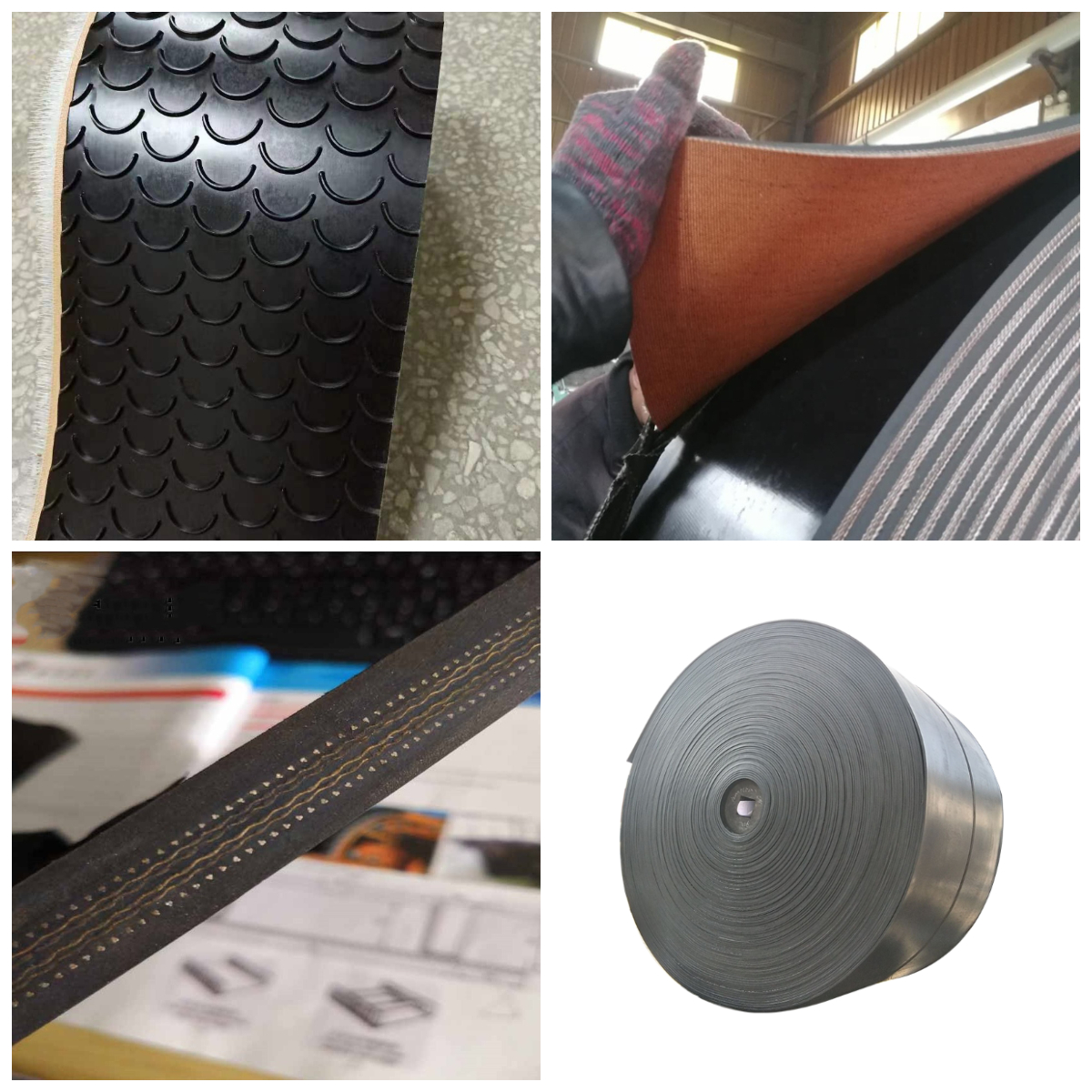

EP630/4 + 1 Ply cross rigid M Grade Rubber Belt, Bottom Cover 2mm,  Top cover with pattern, Moulded edges x 2000mm wide.

Cross Rigid:A 2000mm wide piece of Cross-Rigid Ply will be positioned 12mm from the top of the belt, centred in the belt, sitting 2mm under the top of the widest part of belt.

Straight Wrap Belt Rubber elevator belt (Good oil resistant)
SW800/1P (3+2), Width=800mm, 100 meter/ Roll, Total: 220 metet

The belt is used for feedmill factory

Rubber Elevator Belt  (Moderate with Oil Resistant)
EP630/3 (3+1.5), Width =300mm, T= 8mm, 630N/mm, 3 plies
Punching holes 3 x Ø9 holes with holes center distance 90mm

Derby Covers		DIN	ISO	Description
Oil Resistant	G	G	–	For the transportation of materials containing animal or vegatable oil
	GM	G	–	For the transportation of materials containing mineral oil
	GFR	–	–	For the transportation of materials containing oil/fat and risk of flame

Meeting Stringent Requirements

Our Oil-Resistant Flame Retardant Conveyor Belt is engineered to excel in environments where oil presence and fire safety are critical concerns. Let’s delve into the key technical features that set it apart.

1. Flame Retardant Properties (ISO 304)

Safety is paramount, especially when dealing with conveyor systems. Our belt meets ISO 304 standards for flame retardance, ensuring that it resists the spread of fire. This feature is particularly vital in industries where fire hazards are a constant concern.

2. Excellent Oil Resistance (IRM 902)

Oil exposure can be detrimental to standard conveyor belts, leading to premature wear and reduced efficiency. Our conveyor belt is oil-resistant according to IRM 902 standards, guaranteeing its longevity and reliability even in oil-rich environments.

3. Anti-Static Properties (ISO 284)

In applications where static electricity poses a risk, our belt’s ISO 284 compliance ensures effective static dissipation, preventing hazardous electrostatic discharges.

4. Outstanding Anti-Abrasion Performance (ISO 4649 < 170 mm³)

Wear and tear are common challenges for conveyor belts, but our product’s ISO 4649 rating of less than 170 mm³ ensures exceptional resistance to abrasion, resulting in a longer service life.

5. High-Quality Construction (EP1000/4, 2+2)

Our belt features a robust construction with EP1000/4 fabric, denoting a four-ply structure with two layers of carcass and two layers of cover. This construction ensures superior tensile strength and durability, making it ideal for heavy-duty applications.

6. Optimal Thickness and Width (10.5mm Thickness, 850mm Width)

With a thickness of 10.5mm and a width of 850mm, our conveyor belt strikes the perfect balance between strength and flexibility, enabling efficient material handling.

Applications

Our Oil-Resistant Flame Retardant Conveyor Belt finds its application across various industries, including:

1. Mining: Ideal for transporting minerals and ores, even in oil-rich environments within mines.

2. Steel Production: Essential for conveying materials in steel mills, where oil exposure and fire risks are common.

3. Chemical Plants: Suitable for handling chemicals, especially when safety and fire resistance are critical.

4. Power Generation: Used in power plants for the efficient movement of materials, including coal and ash.
