Fabric Pipe Conveyor Belt

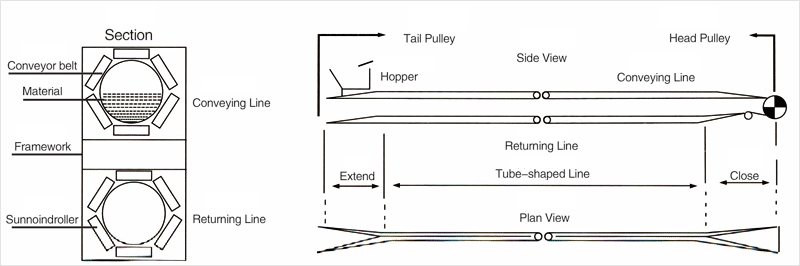

Fabric Pipe Conveyor Belt is new type of conveying belt which uses belt carcassep (EP fabric, Steel cord and etc.) as skeleton,high elastic, high anti- abrasive and high strength rubber as working surface. They are mainly used in conveying powdery and granular materials and etc. that are pollutive to the environment. When working, the rubber belt changes its form from flat to∪shape and finally to pipe shape, folding the materials and realizing the process of enclosed conveying.



Main characteristics of the belt

1、Enclosed conveying of materials, protecting both the materials and the environment.

2、Steep angled conveying,the conveying angle can reach 30 degrees usually.

3、Conveying line can be carranged according to the curve of space.

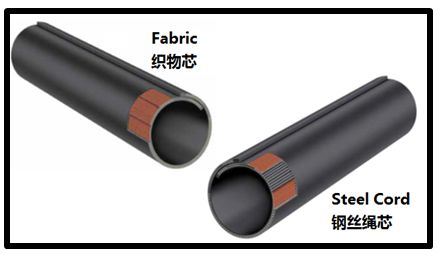

Fabric Pipe Conveyor Belt with steel cord carcass

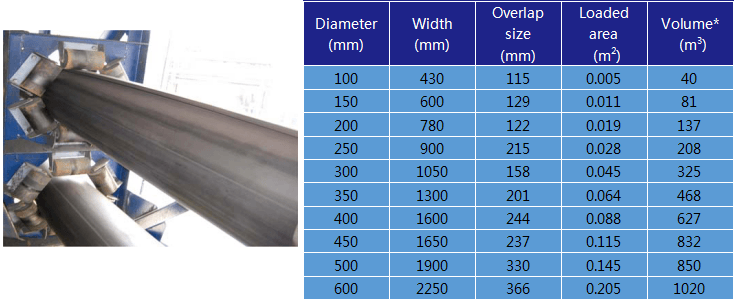

• Maximum belt width: 117″ (3000mm)
• Maximum tube diameter: 32″ (800mm)
• Maximum Strength: ST7000

Fabric Tube Conveyor Belt

• Maximum belt width: 117″ (3000mm)
• Maximum tube diameter: 32″ (800mm)
• Maximum strength: EP630 single ply

Kevlar or Aramid Tube Belt

• Maximum belt width: 88″ (2250mm)   (due to the limitation of aramid fabric width is 2250mm maximum)
• Maximum tube diameter: 24″ (600mm)
• Maximum strength: DPP3500

For Cover Grade, we can supply various Grades according to different application, most common Grades are DINX and Flame Resistant.
