PN (Polyester Nylon) conveyor belt

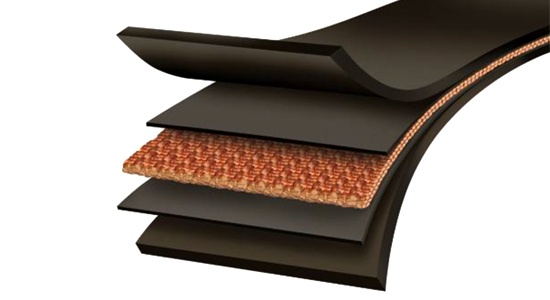

PN (Polyester Nylon) conveyor belt is constructed from high grade rubber, reinforced with grade specific cloth, utilising Polyester fibres in the warp (lengthwise) and Nylon fibres in the weft (across). The homogeneous rubber top & bottom covers the belt completely.
PN (Polyester Nylon) conveyor belt is general purpose belting.
- The carcass determines the tensile strength of the belt, hence determining the load that a belt can carry.
- The covers determine the resistance of the belt to impact, wear, abrasion, heat, oils, mild acids & alkalis and other atmospheric conditions.
CONVENTIONAL CONVEYOR BELTING CARCASS SIZES
Monster Belting can supply these conventional carcasses with a range of top & bottom covers. We stock a comprehensive range of standard widths with common covers, as well as popular non-standard combinations.
| Carcass Fabric Type | Nominal Tensile Strength kN per Metre of Width | Elongation At Break | Belt Width | ||||
|---|---|---|---|---|---|---|---|
| 2 Ply | 3 Ply | 4 Ply | |||||
| PN80 | 160 | 240 | – | > 10% | 300mm To 2400mm | ||
| PN100 | 200 | 300 | 400 | > 10% | 300mm To 2400mm | ||
| PN125 | 250 | 375 | 500 | > 10% | 300mm To 2400mm | ||
| PN150 | 300 | 450 | 600 | > 10% | 300mm To 2400mm | ||
| PN200 | – | 600 | 800 | > 10% | 300mm To 2400mm | ||
| PN250 | – | 750 | 1000 | > 10% | 300mm To 2400mm | ||
| PN300 | – | 900 | 1200 | > 10% | 300mm To 2400mm | ||
COVER GRADES
Monster Belt can supply belting with covers to suit your applications. Covers typically conform to AS1332 or DIN22102.
| Grade | Application |
|---|---|
| AS1332 N | General Purpose. Impact and abrasion resistant. |
| AS1332 M | General Purpose. Heavy abrasion and heavy impact resistant. For use in more arduous applications than N grade. |
CUSTOM ORDER BELTING
Monster Belting can order custom and special belting to your requirements, including, but not limited to, the following special configurations.
| Grade | Application |
|---|---|
| CFW | Crows Foot Weave Superior Rip & Tear Resistance |
| SM | Steel Mesh Rip Stop Steel Mesh imbedded in the top cover to resist Longitudinal cutting and tearing |
| ST | Steel Cord belts |
