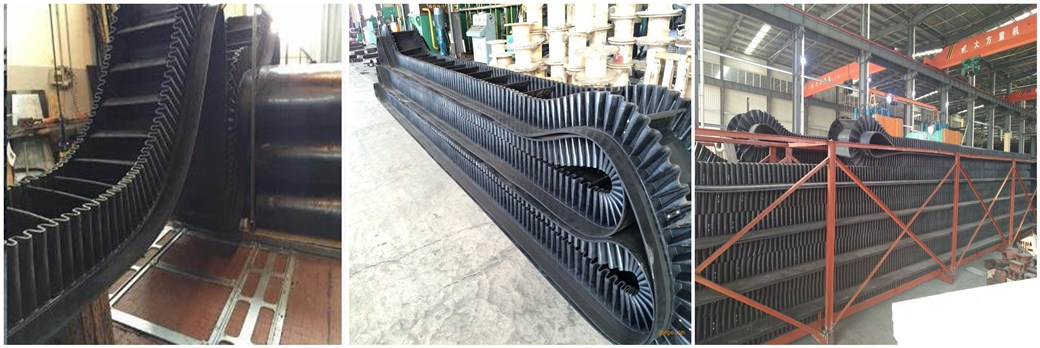

Black skirt rubber band conveyor belt
Skirt rubber band conveyor belt introduction
The raised edge belts is also called the rib conveyor belt, and is the abbreviation of the raised edge belts, which mainly has a corrugated raised edge belts and a large dip rib conveyor belt. Among them, the corrugated rib conveyor belt base belt is required to have tensile strength and wear resistance. In order to meet the requirements of angle redirection, the corrugated rib conveyor belt with empty edges should have flexibility in the longitudinal direction and rigidity in the lateral direction. The skirt rubber band conveyor belt produced by the company adopts the structural transverse rigid base belt to solve the collapse phenomenon of the large-scale conveyor belt during the return journey.
Base belt construction:
The base belt is composed of an upper cover rubber, a lower cover rubber, a core and a lateral rigid layer. The thickness of the upper cover rubber is generally 3-6 mm; the thickness of the lower cover rubber is generally 1.5-4.5 mm, and the core material is subjected to tensile force, and the material thereof may be cotton canvas, nylon canvas, polyester canvas and steel cord core. In order to increase the lateral rigidity of the base belt, a reinforcing layer is added to the core, which is called a lateral rigid layer. Flanged Conveyor Belt are widely used in the transportation of materials in ports, metallurgy, mining, electric power, coal, foundry, building materials and grain.
The Rubber Sidewall Belting transports a wide range of bulk materials in horizontal, inclined, vertical and variable angles, whether coal, ore, sand or fertilizer and grain. The particle size below the 400 MM particle size is not limited, and the delivery amount may be selected from 1 M3/hour to 6000 M3/hour.
Skirt rubber band conveyor belt| Steep Incline Conveyor Belts
Uses: skirt rubber band conveyor belt can transport powdery or blocky materials, and can realize large inclination angle transportation, the maximum inclination angle can reach 90 degrees.
Features:
- It can search a large number of conveyor belts, save space;
- It do not use side panels when using, so as not to cause unnecessary wear.
The types of transverse baffles can be divided into: T type, TS type, TC type, TCS type.
